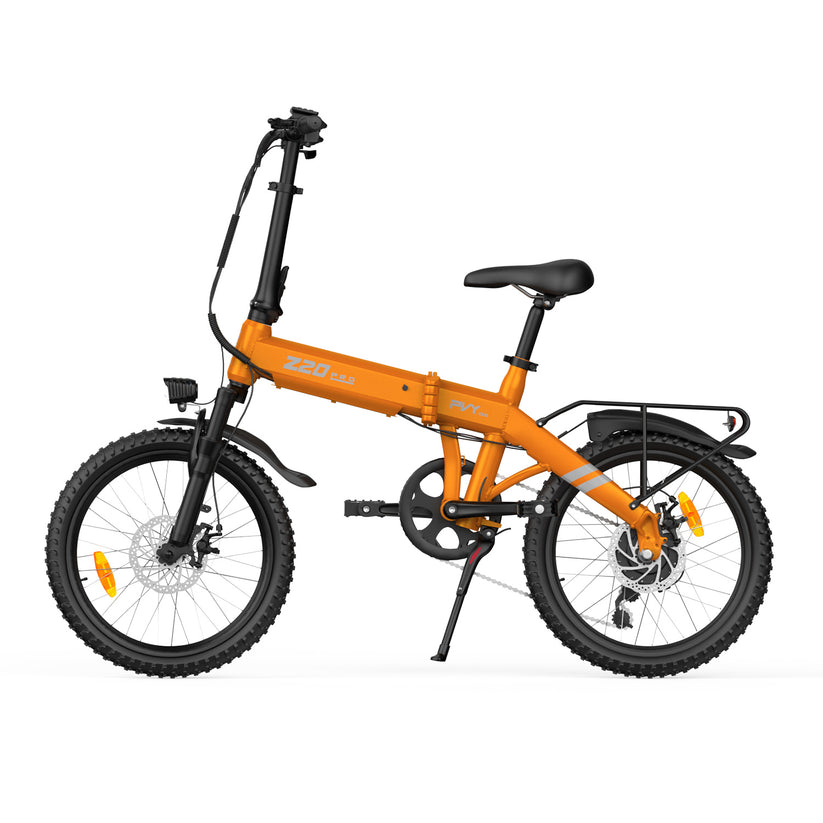

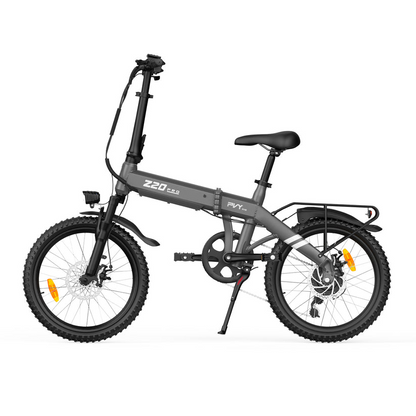

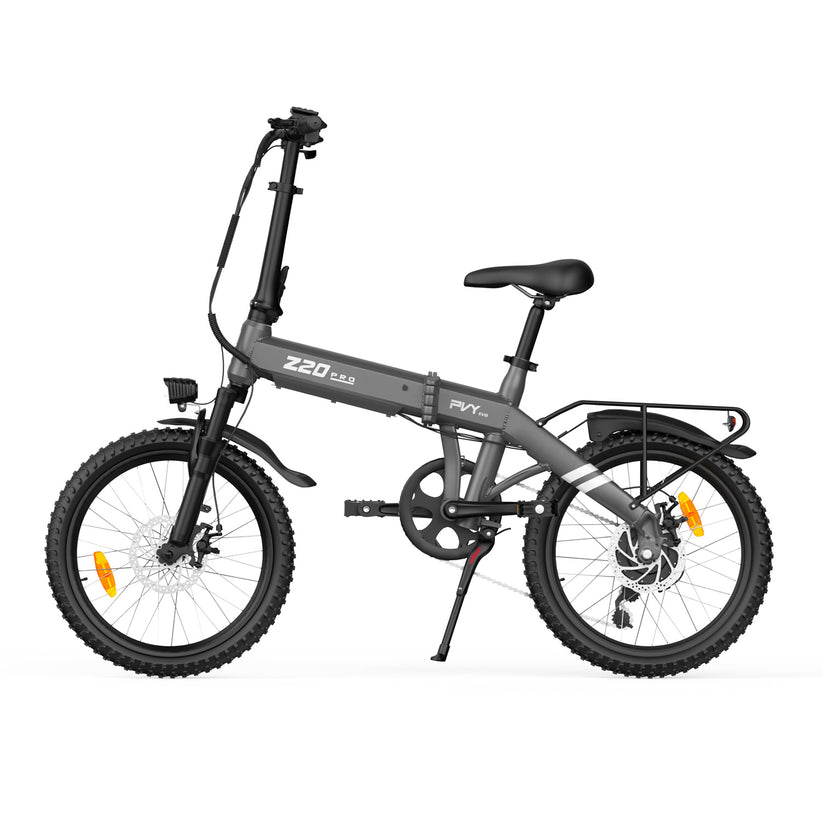

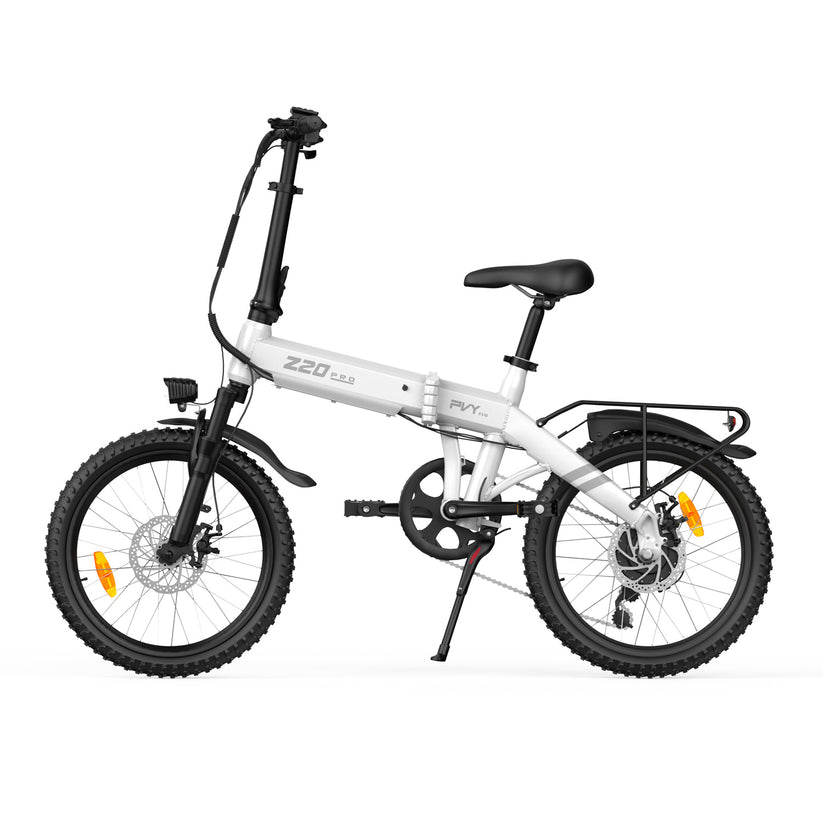

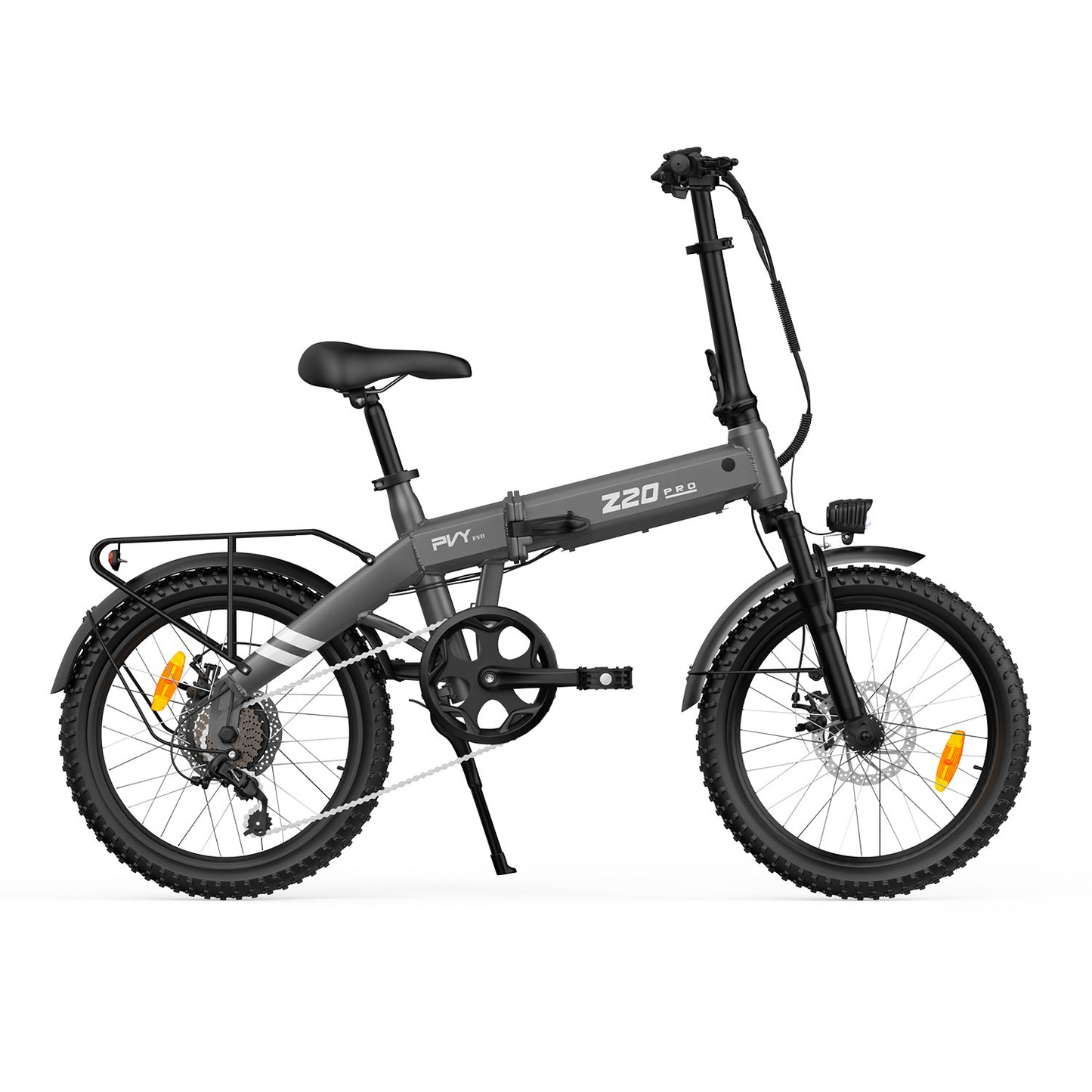

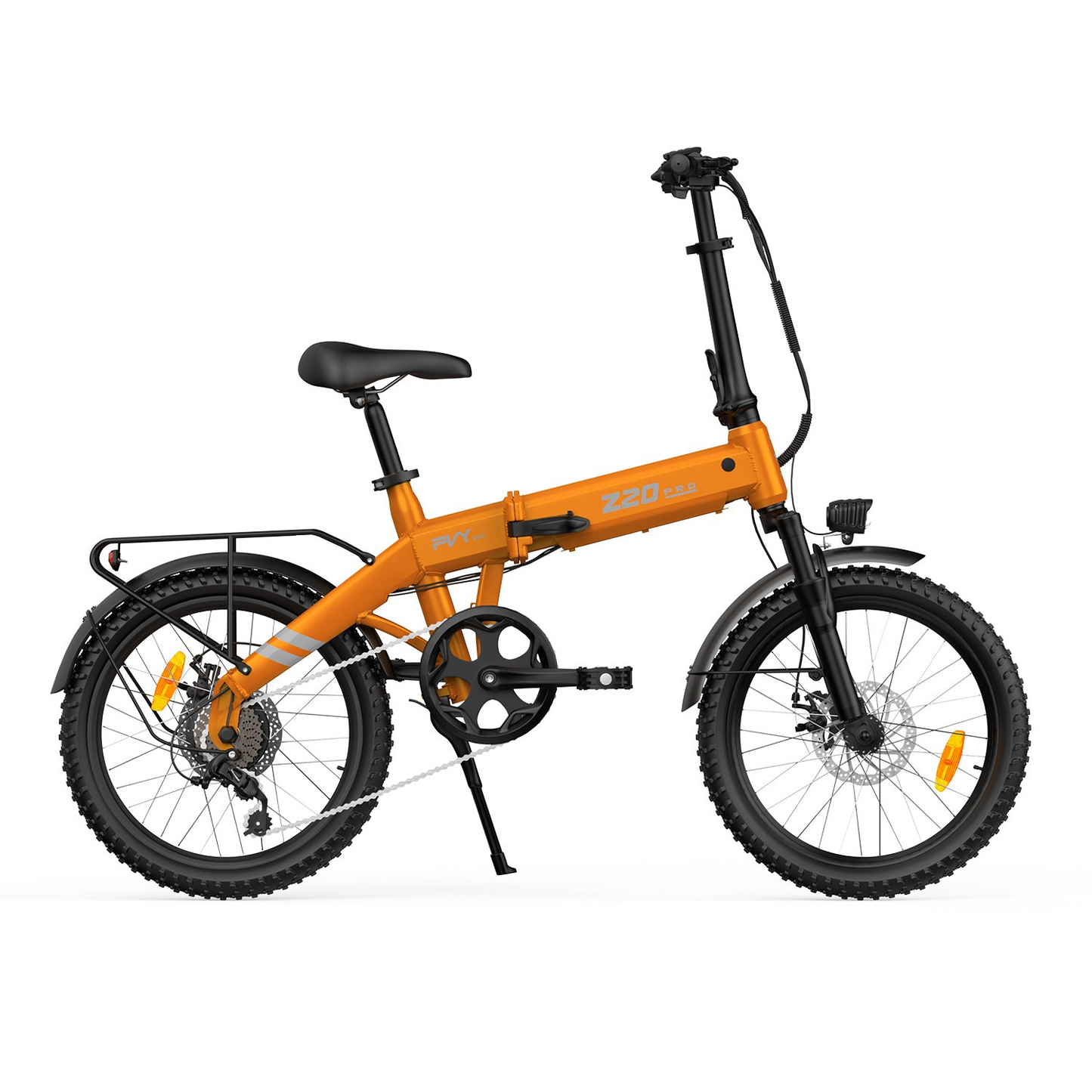

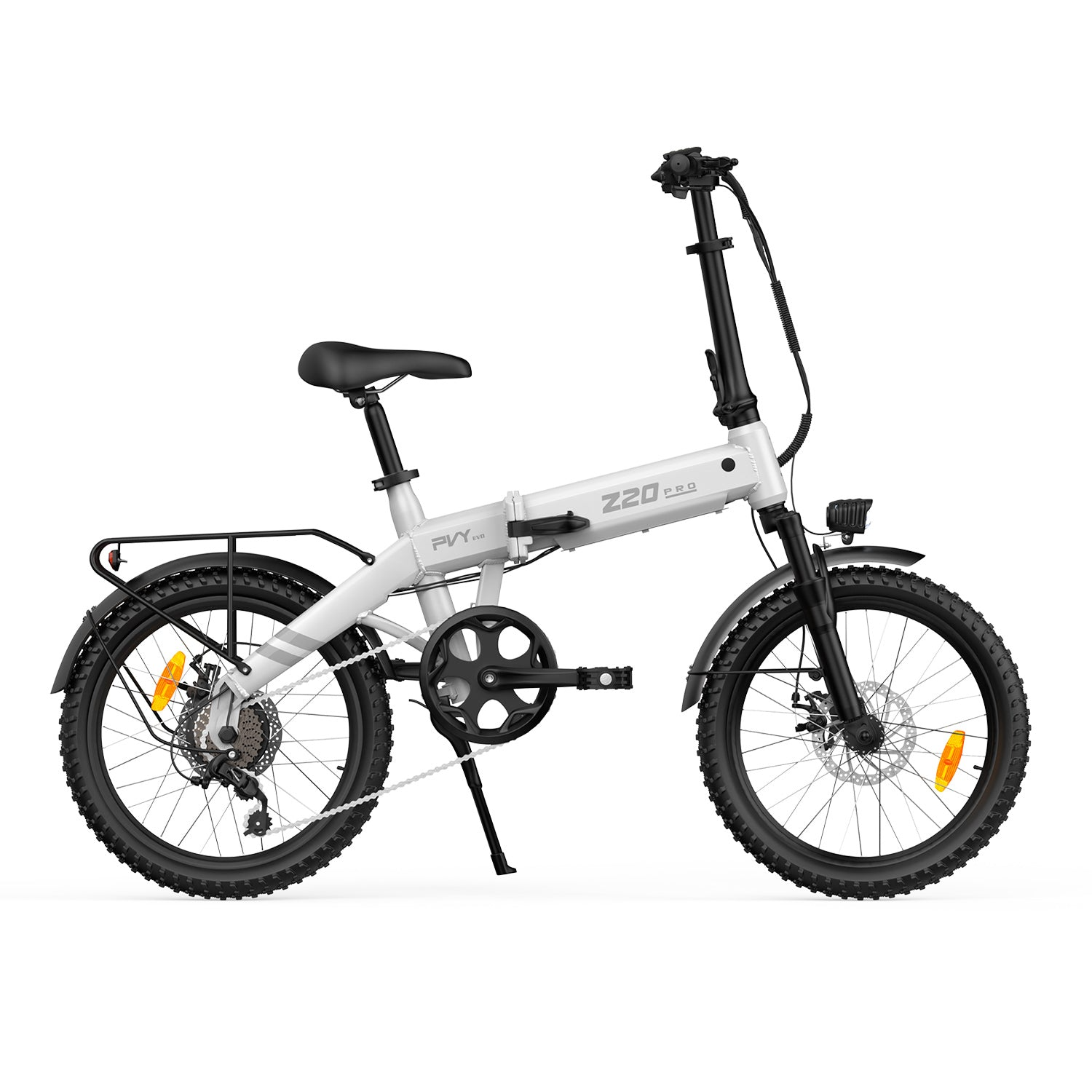

PVY Z20 PRO EVO

PVY Z20 PRO EVO

• Torque Sensor
• 250W (Unlocked: 500W)
• 50N.m
• 120Km Range

Powerful Geared Hub Motor

The Z20 PRO EVO combines power and agility. Its 50 Nm torque provides quick acceleration and easy hill climbing, making urban travel effortless.

Unlockable power up to: 500W

36V 14.5Ah Lithium Battery
The PVY Z20 PRO EVO’s 36V 14.5Ah lithium battery offers efficient, reliable power for city rides, with a lightweight design perfect for urban commuting.

Precision Meets Performance
The PVY Z20 PRO EVO’s torque sensor detects pedal force, providing instant, proportional power assistance for a natural ride. It ensures smooth power delivery at all speeds, enhancing safety and efficiency.

Specification

Technical Specifications
FRAMESET
Fork	Shock absorptlon fork
Frame	Upgraded 6061 aluminum
BRAKE
BRAKE	Mechanical disc brakes
Brake Levers	Aluminum Alloy
ELECTRONICS
Motor	Hall brushless gear Dc Motor
Motor Power	250W
Battery	36v/14.5Ah
Charger	48V 2.0A
Display	HD LCD dispaly
Headlight	IPX5 waterproof 1200lumen
Turn indicators	Integrated taillight with brake light
Unlocking Power	500W
SUPPORTS
Fenders	Plastics
Pedals	Plastic foldable pedal
Rear Rack	iron
Pedal Assist	0-3 level pedal asslst
Working Temperature	-10~50°C
Waterproof	IPX5 waterproof
Tyre Size	20*2.125 Inch
DRIVETRAIN
Max Speed	25km/h
Max Range	120km
Torque	50N.M
Chainrings	48T,with alloy crank CNC
Rear Derailleur	7-speed
Sensor	Torque
WEIGHT&LOAD&CLIMB
Net Weight	22.5 kg
Weight capacity	150Kg
Rear Rack Load	25KG
Throttle Mode	Yes
Climbing Abiity	20°

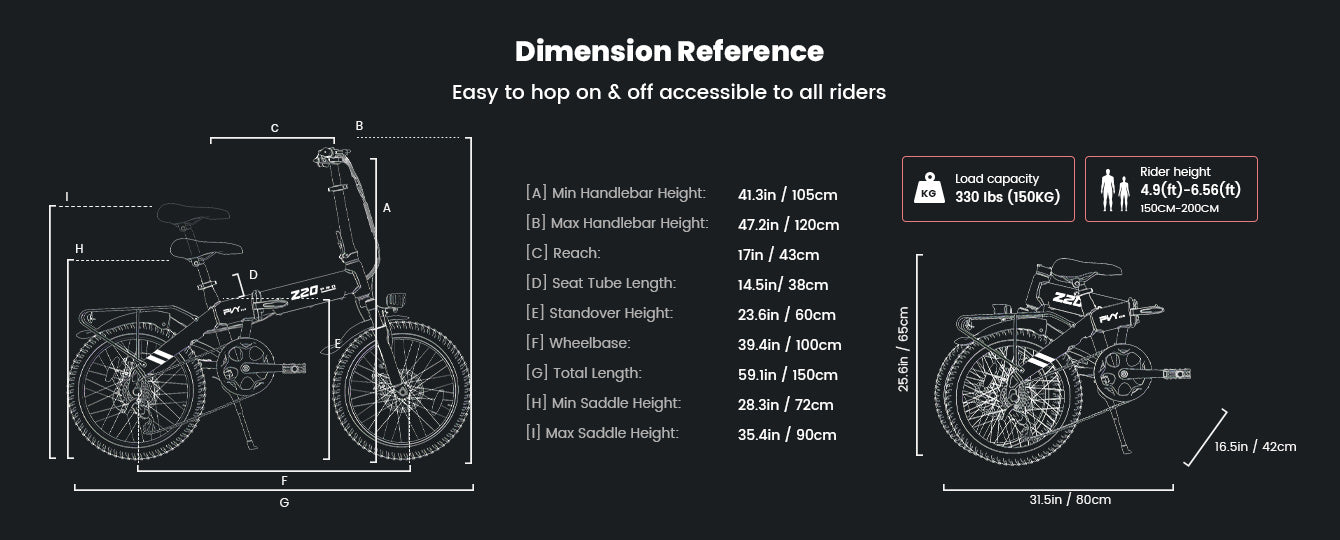

Size

[A] Min Handlebar Height:	41.3in / 105cm
[B] Max Handlebar Height:	47.2in /120cm
[C] Reach:	17in / 43cm
[D] seat Tube Length:	14.5in/ 38cm
[E] standover Height:	23.6in / 60cm
[F] Wheelbase:	39.4in / 100cm
[G] Total Length:	59.lin / 150cm
[H] Min Saddle Height:	28.3in /72cm
[I] Max Saddle Height:	35.4in / 90cm

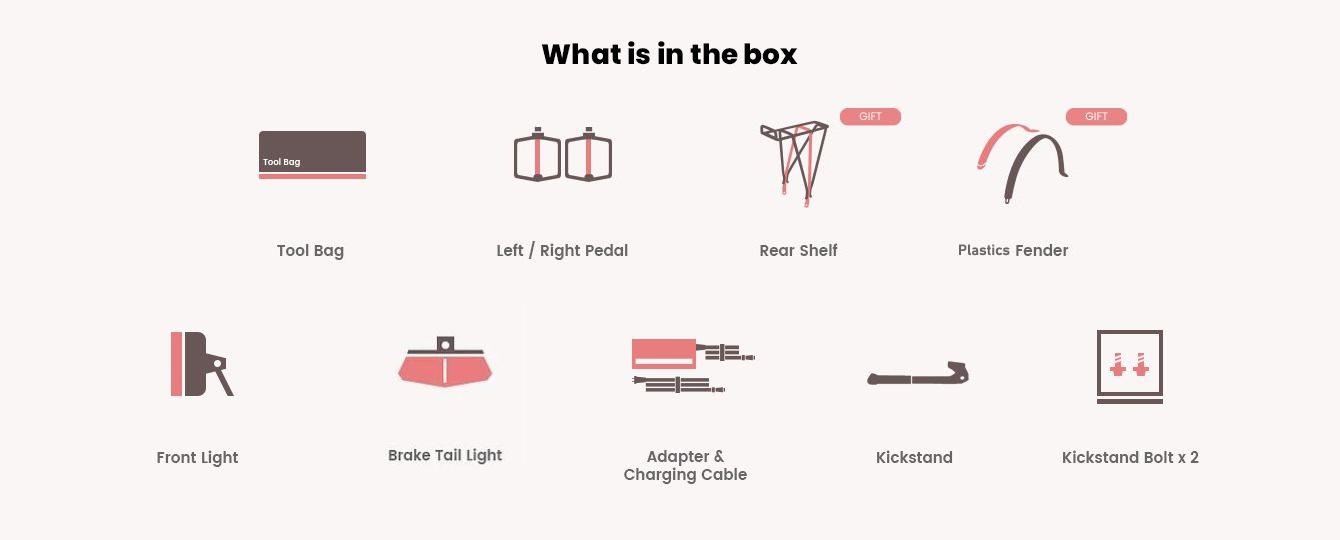

What’s In The Box?

Tool Bag

Left / Right Pedal

Rear Shelf

Plastics Fender

Front Light

Brake Tail Light

Adapter & Charging Cable

Kickstand

Kickstand Bolt x 2



More Reasons to Love It

Suspension Fork

Navigate parks, cities, and suburbs with ease, powered by a sturdy front-suspension fork for a smooth journey.

Mechanical Disc Brake
The PVY Z20 Pro Evo features a mechanical disc brake that delivers precise and immediate braking performance, ensuring enhanced safety and reliable control in any riding condition.

Aluminum Frame

The PVY Z20 PRO EVO features an upgraded 6061 aluminumalloy frame, enhanced through multi-stage heat treatmentfor superior strength and durability. This robust construction supports a weight capacity of 120-150kg.

Crankset
The Pro Wheel 48T/170mm crankset is made from strong, light, and durable aluminum. It efficiently transfers power from the rider’s legs to the drivetrain, ensuring smooth and effective pedal-assisted propulsion.

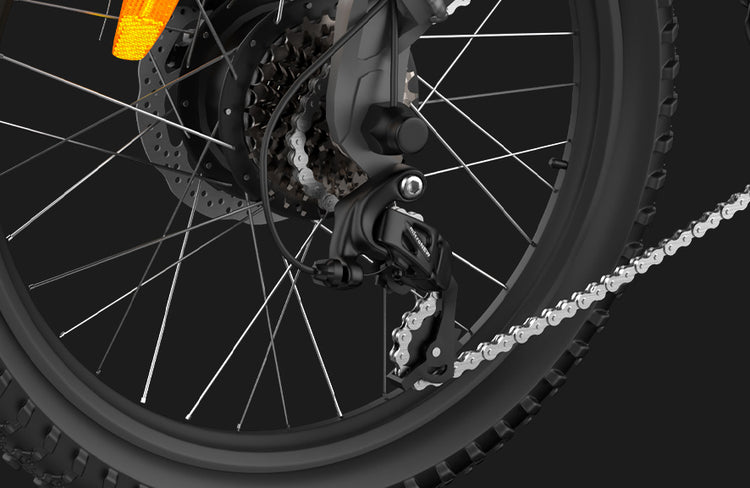

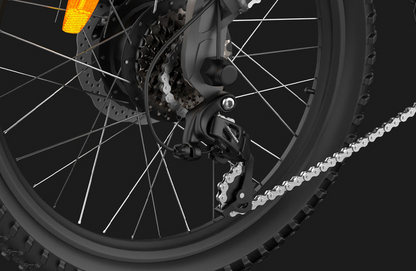

Derailleur

The durable aluminum alloy derailleur ensures seamless gear shifting, delivering precise control and optimized performance for a smooth and effortless cycling experience.

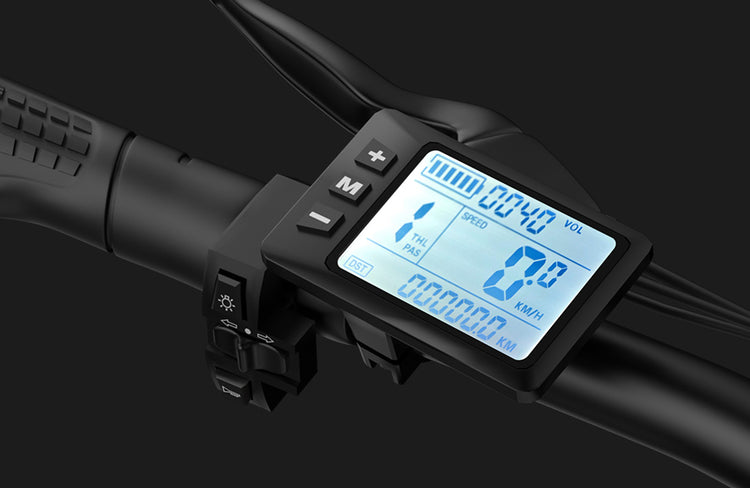

Display

The intuitive display keeps you fully informed with essential cycling metrics, including speed, battery charge, and pedal-assist level, ensuring you stay in control of your ride.

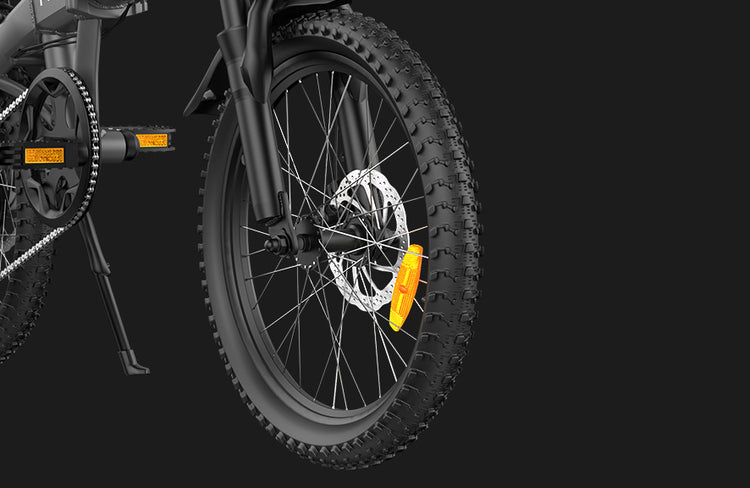

Wheel
Unlock a new level of comfort and control with 20×2.125inch pneumatic rubber tires, designed to deliver outstanding traction and cushioning, ensuring every ride is safer and more enjoyable.

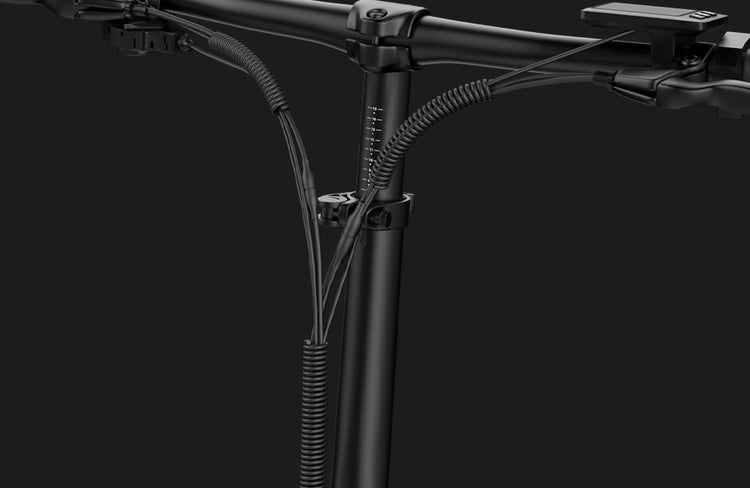

Stem
Enjoy a tailored riding experience by effortlessly adjusting the stem and seatpost to fit your height perfectly.

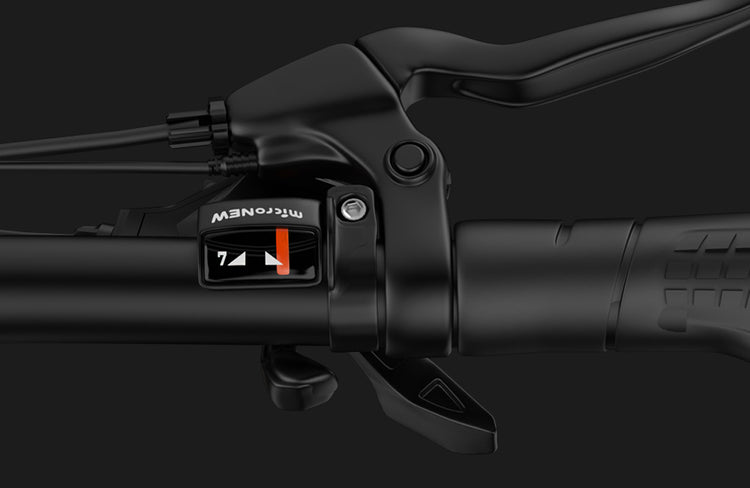

Shifter

Experience seamless control with the premium 7-Speed gears, providing seven transmission options to optimize energy efficiency and reduce effort, no matter the terrain.

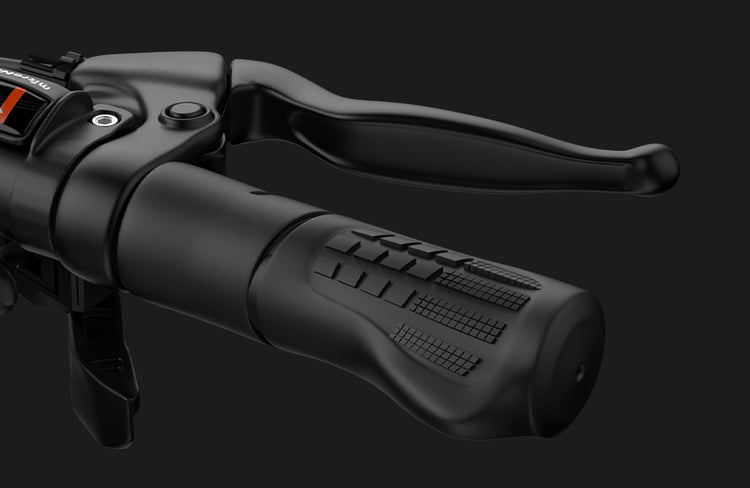

Throttle
Twist your wrist and feel the instant power. Effortless acceleration meets reduced pedal fatigue, bringing you pure joy every ride.

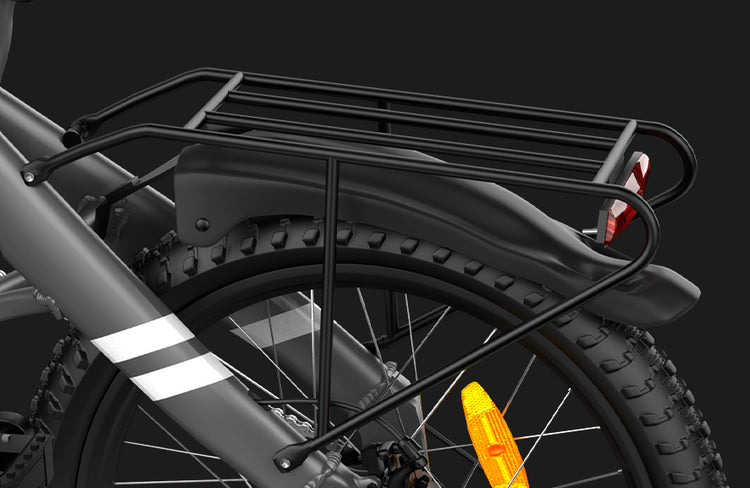

Rear racks and mudguards

No more worrying about muddy roads and no need to buy separate mudguards and luggage racks, the high-quality rear rack effectively stores your belongings.

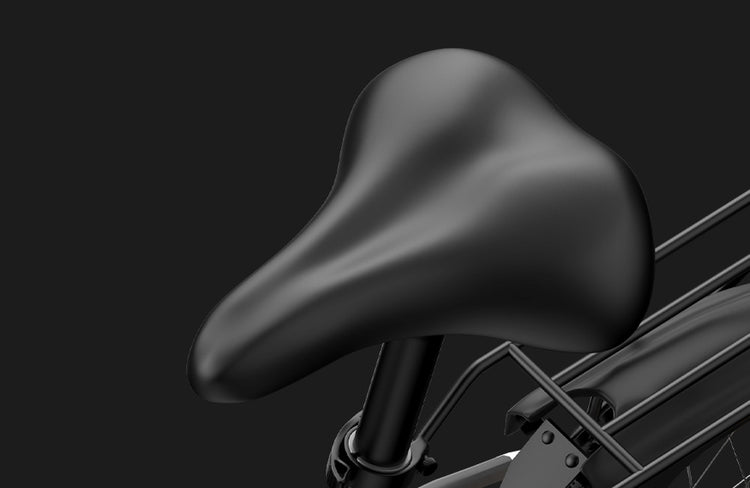

Seat

The ergonomic seat is thoughtfully designed to follow the natural contours of the human body. It offers exceptional support and stability, ensuring a comfortable and enjoyable ride.

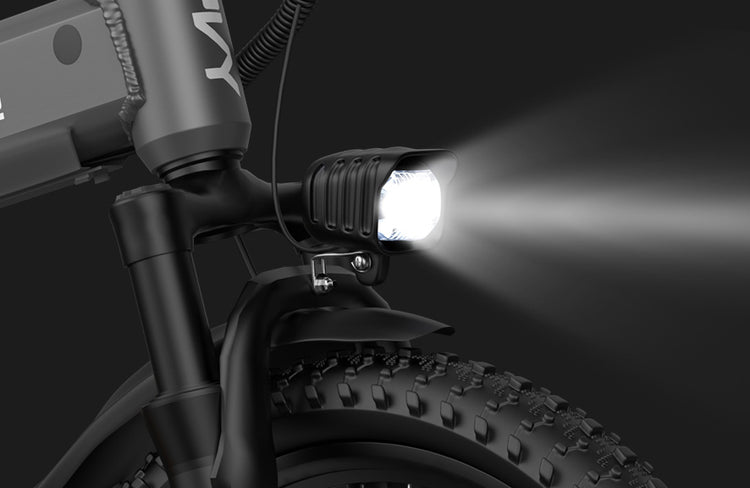

Headlight

Highly visible LED headlights, enhanced visibility for safer night rides.

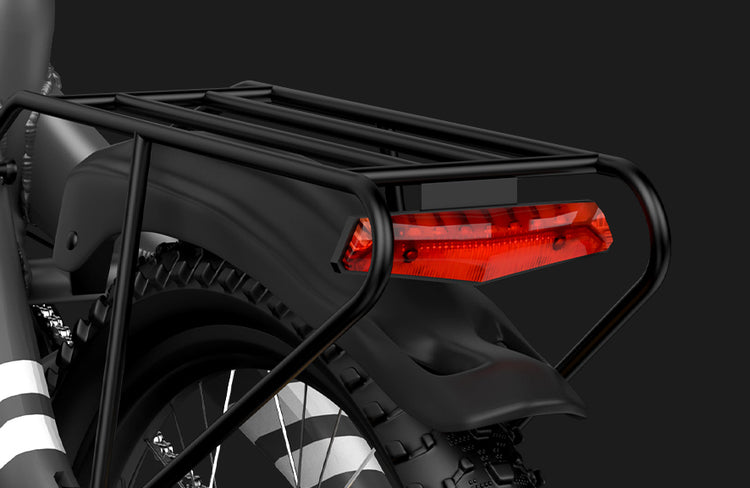

Taillight

The integrated tail lights boost nighttime cycling safety by automatically illuminating when you brake, significantlyenhancing your visibility to others on the road.
