Specification
DETAILS |
|
Model Name |
T2 |
Model Code |
T2 |
Net Weight |
39.5 kg |
Payload |
200 kg |
FRAMESET |
|
Frame |
20-inch aluminum alloy frame |
Fork |
Aluminum alloy hydraulic shock-absorbing front fork (suspension travel 60mm) with 135mm opening width
|
Headset |
Aluminum alloy bearing limit headset |
E-SYSTEM |
|
Drive Unit |
750W integrated wheel brushless geared motor |
Battery |
DMEGC 998.4Wh |
Charger |
48V3A |
Display |
LCD 2.4 inch |
DRIVETRAIN |
|
Rear Derailleur |
SHIMANO TY300D |
Shifters |
SHIMANO TX50 |
Chain |
KMC Z7 |
Crank |
Aluminum alloy 52T |
Rear Cogs |
SHIMANO TZ500 7S (14-28T) |
Sensor |
12-magnet speed sensor |
BRAKES |
|
Brakes |
Four-piston hydraulic disc brake with power cut-off |
Brake Levers |
Aluminum alloy three-finger brake lever |
WHEELS |
|
Front Hub |
Magnesium alloy integrated wheel with dual bearings (detachable axle M10*135*185mm)
|
Rims |
/ |
Spokes |
/ |
Tires |
CST 20*4.0 |
COMPONENTS |
|
Handlebar |
Aluminum alloy (Length: 680mm Maximum diameter: 25.4mm Minimum diameter: 22.2mm)
|
Stem |
Aluminum alloy stem |
Grips |
Leather handlebar grips (length: about 130mm) |
Saddle |
VELO vacuum full-fit saddle |
Seatpost |
Aluminum alloy clamp head seatpost (Length: 400mm;Diameter: 33.9mm)
|
Size
All measurements provided in mm unless otherwise noted. |
|
Rider heights |
5’1″ (155cm) – 6’7″ (200cm) |
Wheel size |
CST 20*4.0 |
A-Seat tube |
335 |
B-Seat tube angle |
72° |
C-Head tube |
200 |
D-Head angle |
72° |
E-Top tubelength |
598 |
F-Standover height |
477 |
G-BB drop |
0 |
H-Rear Center |
640 |
l-Wheelbase |
1280 |
J-Reach |
407 |
K-Stack |
590 |
L-Maximum seat height |
960 |
M-Minimum seat height |
760 |
N-Rear rack height |
640 |
O-Total length |
1860 |
P-Handlebar height |
1190 |
Q-Handlebar length |
730 |
R-Rear rack length |
650 |
S-sear rack outer diameter length |
580 |
T-Rear rack width |
170 |
What’s In The Box?
Electric bike*1 |
Front Basket*1 |
Fenders*1 |
Pedals*1 |
Charger*1 |
Y-type Aller Wrench*1
|
10 mm Socket Wrench*1
|
User Manual*1 |
Hex Wrench*1 |
Open Spanner*1
|
15 Socket Wrench*1
|
More Reasons to Love It
Mivice Torque Sensor(T2 2025)
Detects pedal pressure in 0.01 seconds — precise support makes hill starts easier and stretches the range on flat roads.

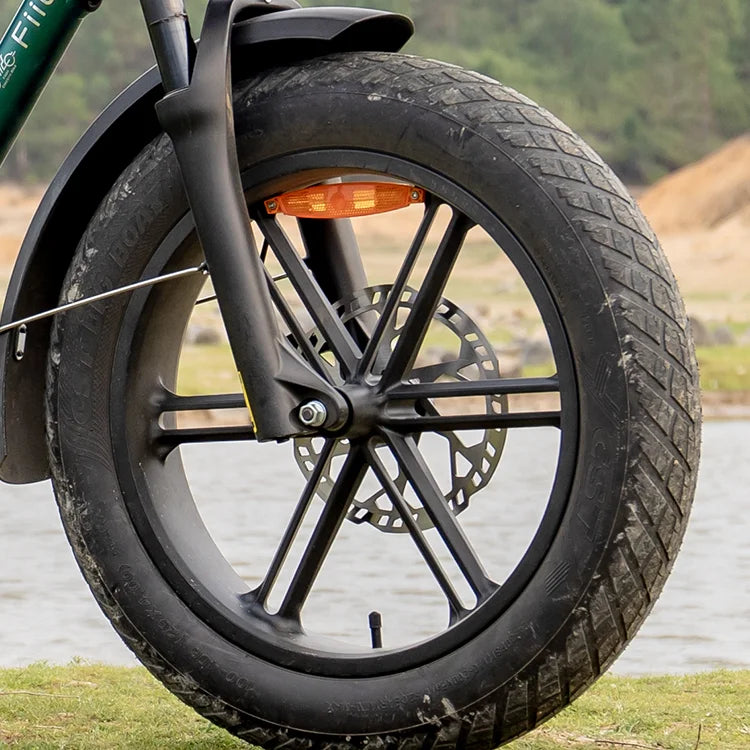

One-Piece Hub, Integrated Wheel
No broken spokes, no maintenance headaches! High-integrity structure increases load capacity too.
High-capacity Battery
998Wh, offering an impressive range of up to 100km.
Powerful Rear-wheel Drive Motor
Effortlessly tackle hills, even with a 200kg load.
4-Piston Hydraulic Disc Brakes
230mm rotors provide efficient braking.
Wide Range of Accessories
12 optional accessories, catering to a variety of needs and situations.

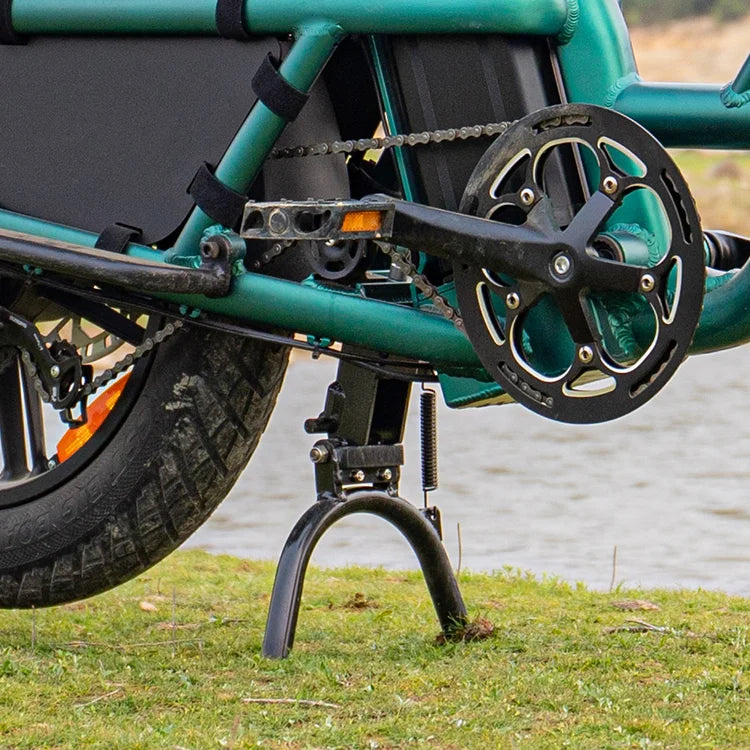

Dual-Leg Kickstand
The bike is stable and upright when parked. No wobbling or tipping when loading or unloading.
Walk Assist, EU Compliant
6 km/h throttle. Meets regulations in most EU countries. Effortlessly push the bike uphill and haul your stuff.
CST 20x4.0 Puncture-Resistant Fat Tires
Wide tires adapt to rough terrains. Absorb shocks for comfort.

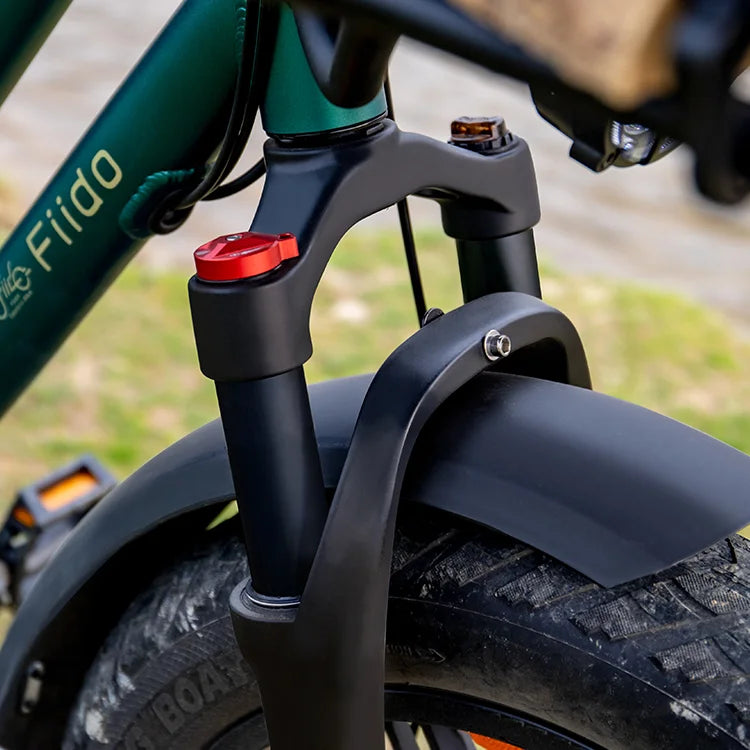

Shock-Absorbing Front Fork
60mm Travel. Reduces strain on the rider's hands and shoulders by smoothing out bumps.

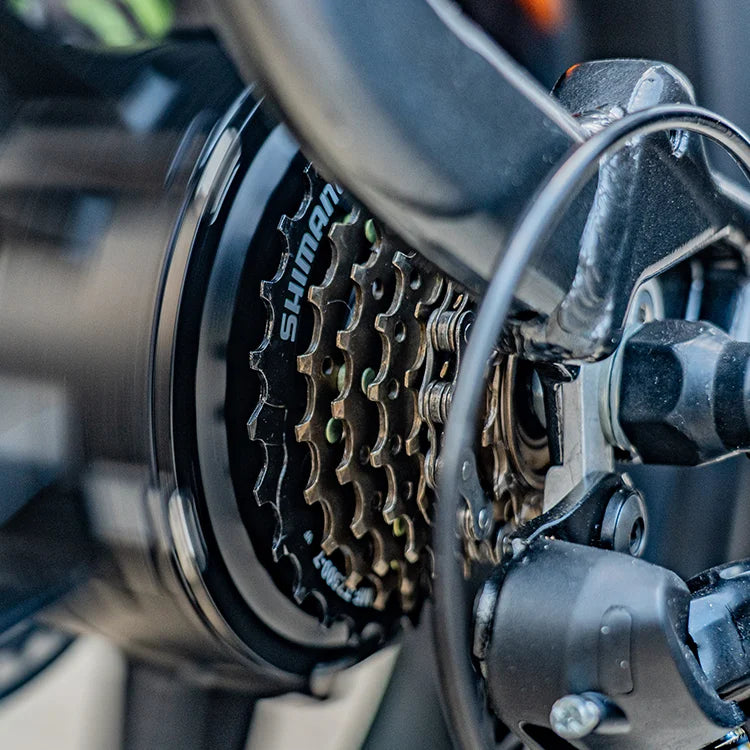

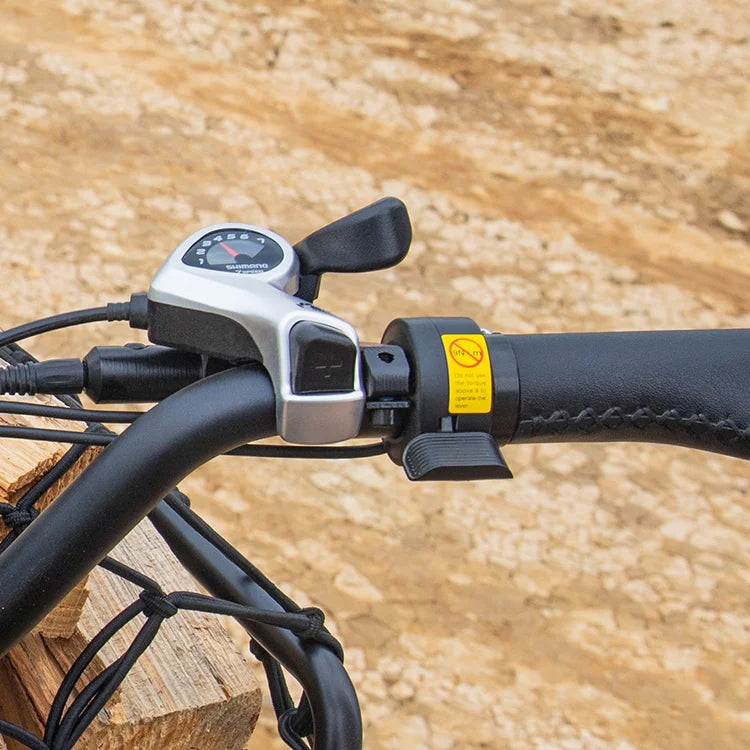

Shimano 7 Speed
Handles rough terrain. Easier cargo climbs.

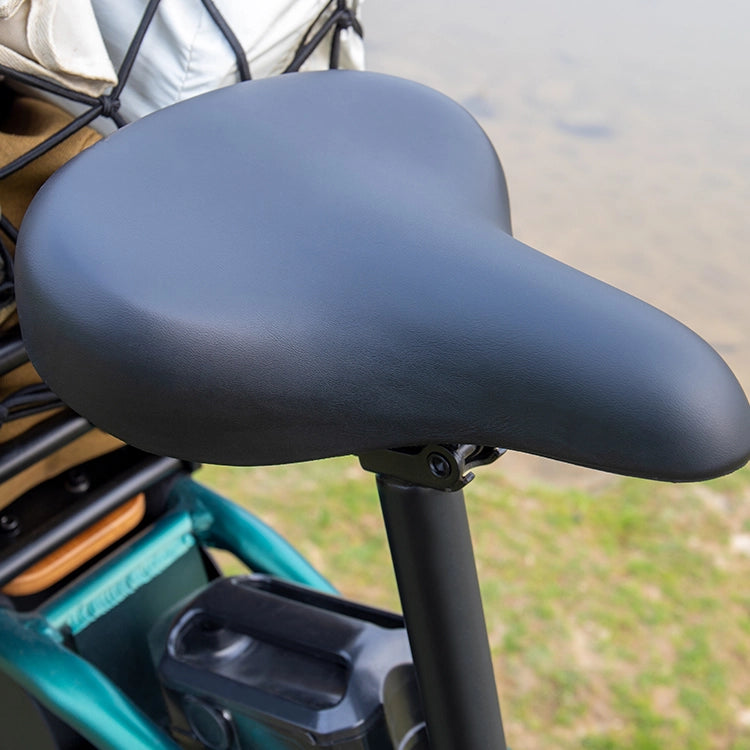

Velo Full-Fit Saddle
Unmatched comfort on long rides. Less pain in the buttocks, reduced pressure on the lower back.

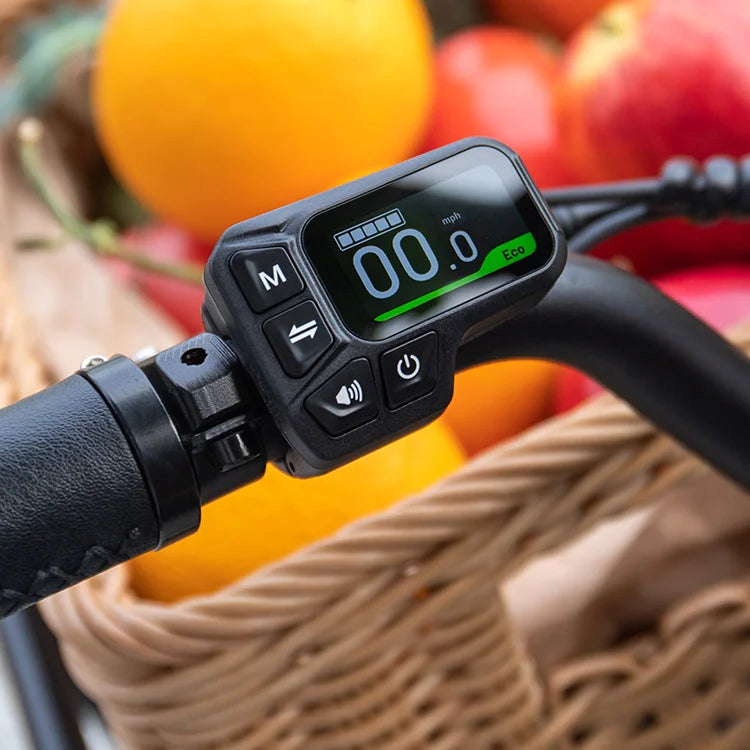

LCD Waterproof Display
24-inch color display. Clearly visible even in bright sunlight. IP68 waterproof, withstands rainstorms.

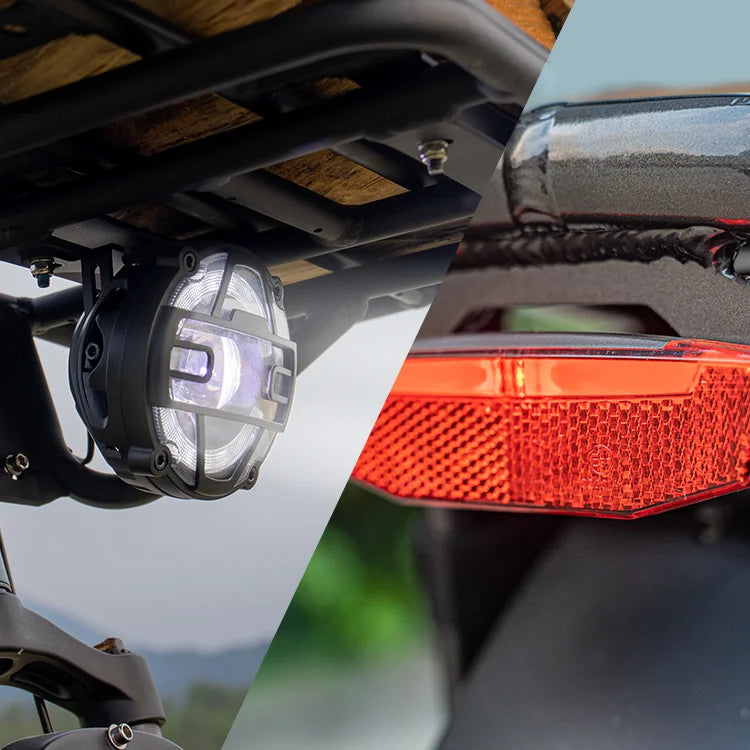

Ultra-Bright Headlight & Responsive Brake Light
See better at night. Signal stops to others to keep you safe on the road.

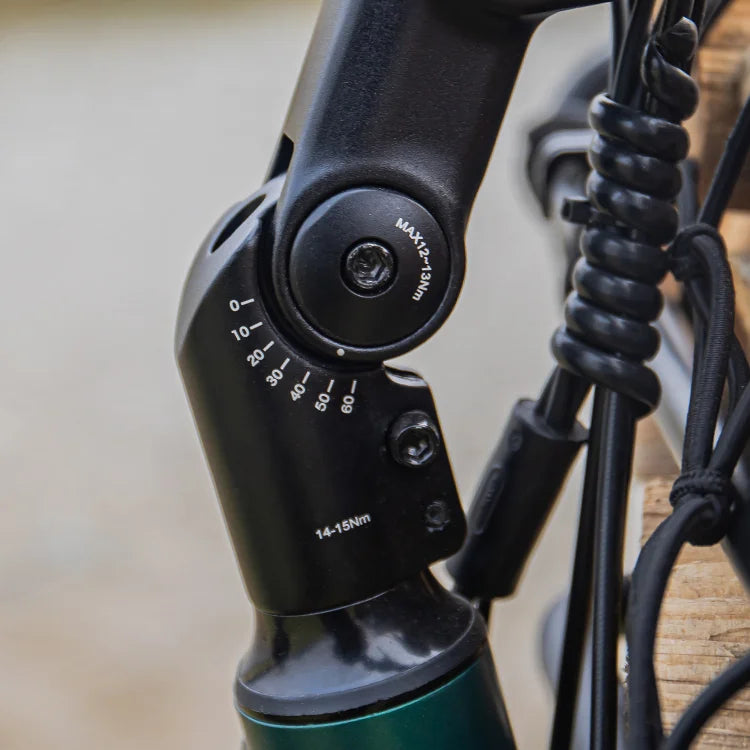

Adjustable Seat & Handlebars
Adjust to your height for a comfortable posture for less strain on your back and shoulders.

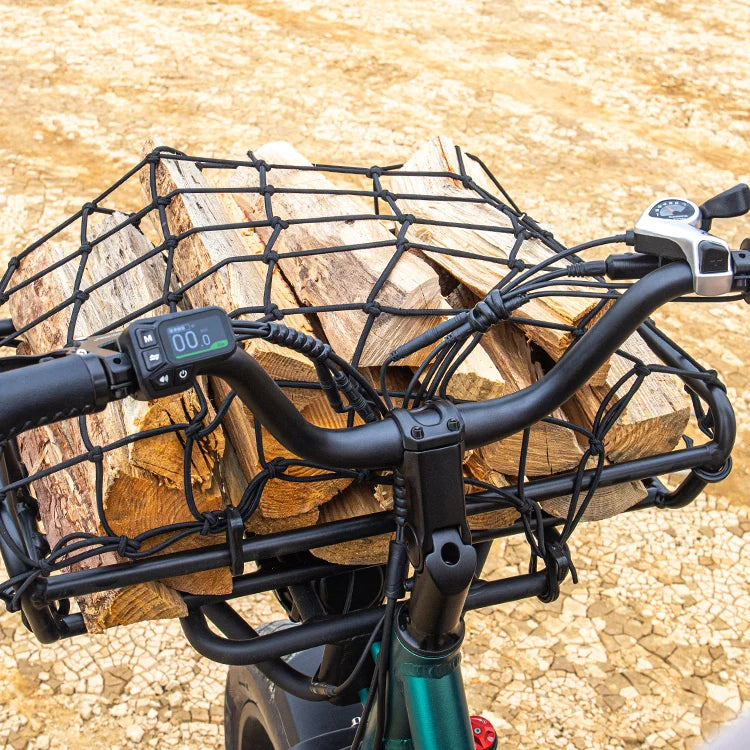

Ergonomic Handlebars
Angled for a natural wrist position, reducing strain. Breathable, non-slip leather grips enhance comfort.

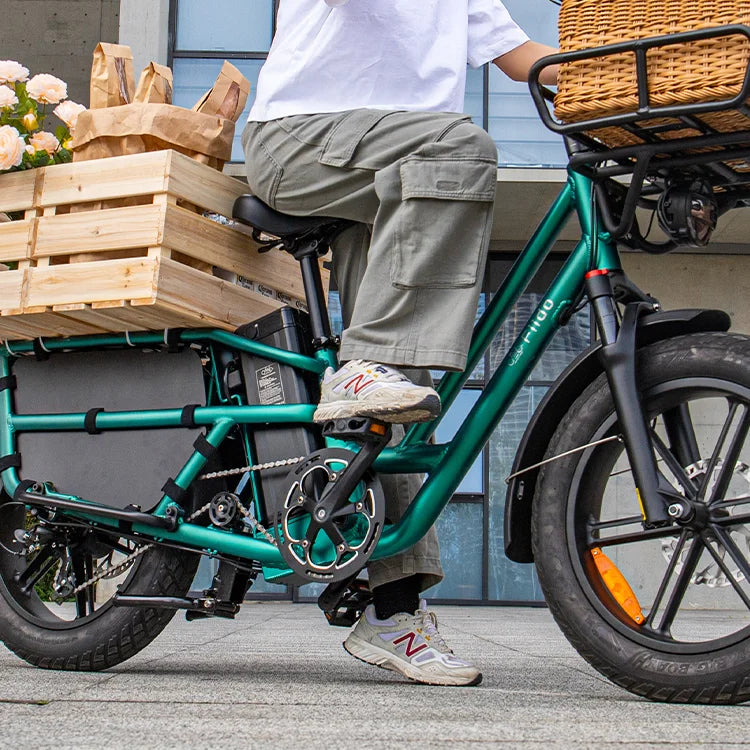

Step-Thru Frame
No need to tilt the bike when mounting-keeps cargo stable. Easy to hop on, no matter your height or what you're wearing.
