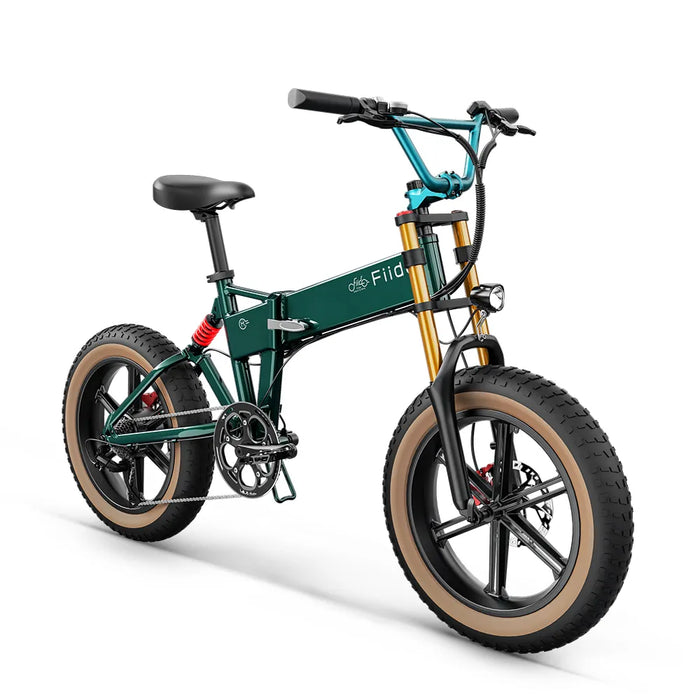

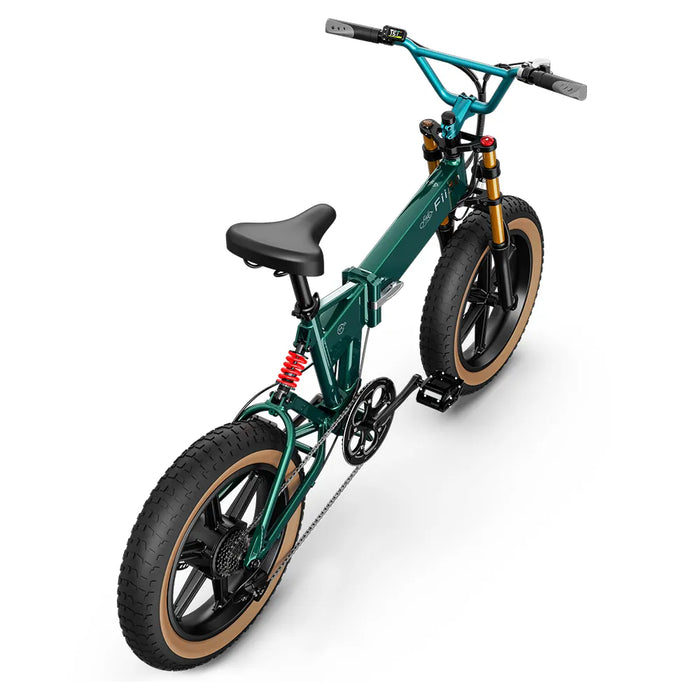

Fiido M1 Pro Electric Bike Upgraded Version
Fiido M1 Pro Electric Bike Upgraded Version
Couldn't load pickup availability
- 1–3 Days Delivery
- 30-Day Returns
- 365 Days Warranty
Authorised UK Seller
Authorised UK Seller
We are a UK-based company and an officially authorised representative of ENGWE in the UK.
All products are shipped locally and supported by our UK repair centre.
Even after the warranty period, we’ll do our best to assist with any issues you may encounter.
Responsive Customer Support
Responsive Customer Support
Need help?
We offer live chat support from 9AM–5PM, and our email support team is available 24/7—we’ll get back to you within 24 hours. We're here to help every step of the way.
Trusted After-Sales Support
Trusted After-Sales Support
Warranty & Repairs:
For non-human-related issues, we offer after-sales support and spare parts within 1 year.
If the issue arises after 1 year, parts can still be purchased at cost.
Specification
| DETAILS | |
| Model Name | M1 PRO |
| Model Code | M1 PRO |
| Net Weight | 26.8 kg |
| Payload | 120 kg |
| FRAMESET | |
| Frame |
20-inch aluminum alloy frame |
| Fork |
Aluminum alloy hydraulic dual-crown front fork (80mm travel, 135mm width) |
| Headset |
Aluminum alloy bearing limit headset |
| E-SYSTEM | |
| Drive Unit |
250W 55Nm integrated wheel brushless geared motor |
| Battery |
DMEGC 556.8Wh |
| Charger | 48V2A |
| Display | LCD 1.47 inch |
| DRIVETRAIN | |
| Rear Derailleur |
SHIMANO TY300D |
| Shifters | SHIMANO TX50 |
| Chain | KMC Z7 |
| Crank |
Aluminum alloy 52T |
| Rear Cogs |
SHIMANO TZ500 7S (14-28T) |
| Sensor |
Mivice S200 torque sensor |
| BRAKES | |
| Brakes |
Dual-piston hydraulic disc brake with power cut-off |
| Brake Levers |
Aluminum alloy three-finger brake lever |
| WHEELS | |
| Front Hub |
Magnesium alloy integrated wheel with dual bearings (detachable axle M10*135*185mm) |
| Rims | / |
| Spokes | / |
| Tires | CST 20*4.0 |
| COMPONENTS | |
| Handlebar |
Aluminum alloy (Length: 700mm Maximum diameter: 25.4mm Minimum diameter: 22.2mm) |
| Stem | / |
| Grips |
TPR non-slip handle grip (Length: about 130mm) |
| Saddle |
VELO vacuum full-fit saddle |
| Seatpost |
Aluminum alloy clamp head seatpost (Length: 400mm;Diameter: 33.9mm) |
Size
| All measurements provided in mm unless otherwise noted. | |
| Rider heights |
4’11(150cm)-6’7 (200cm) |
| Wheel size | CST 20*4.0 |
| A—Seat tube | 425 |
| B—Seat tube angle | 75° |
| C—Head tube | 130 |
| D—Head angle | 74.5° |
| E—Top tube length | 629 |
| F—Standover height | 710 |
| G—BB drop | -40 |
| H—Rear Center | 505 |
| I—Wheelbase | 1190 |
| J—Reach | 474 |
| K—Stack | 504 |
| L—Rear Suspension Length | 125 |
| M—Maximum seat height | 1100 |
| N—Minimum seat height | 840 |
| O—Handlebar height | 1175 |
| P—Handlebar length | 700 |
| Q—Total length | 1175 |
| R—Folding length | 960 |
| S—Folding height | 910 |
| T—Steerer Tube Length | 215 |
| U—Steerer Tube Outer Diameter | 30 |
| V—Steerer Tube Inner Diameter | 28.6 |
What’s In The Box?
| Electric bike*1 |
| Manual*1 |
| Charger*1 |
|
Rear Reflector*1 |
| Open Spanner |
| Kickstand*1 |
|
Front Wheel Quick Release*1 |
| Headlight*1 |
| Fender*1 |
| Hex Wench*1 |
| Keys*1 |
| Rear Rack*1 |
More Reasons to Love It
More Sass, More Style
Discover our 2025 upgrade, uncover a different you.
0-Lag Power Support
In 0.01s, Mivice torque sensor detects your move for the most precise support at every moment.
Range up to 87.15km
Powered by 556.8Wh battery. Enough juice for extended rides.
0-Maintenance Hub
No broken spokes, even under high-intensity riding or a full 150kg load.
80mm Front Fork
Enhanced shock absorption, effectively reducing fatigue in the wrists and forearms.
LCD Waterproof Display
2.4-inch color display. Clearly visible even in bright sunlight. IP68 waterproof, withstands rainstorms.

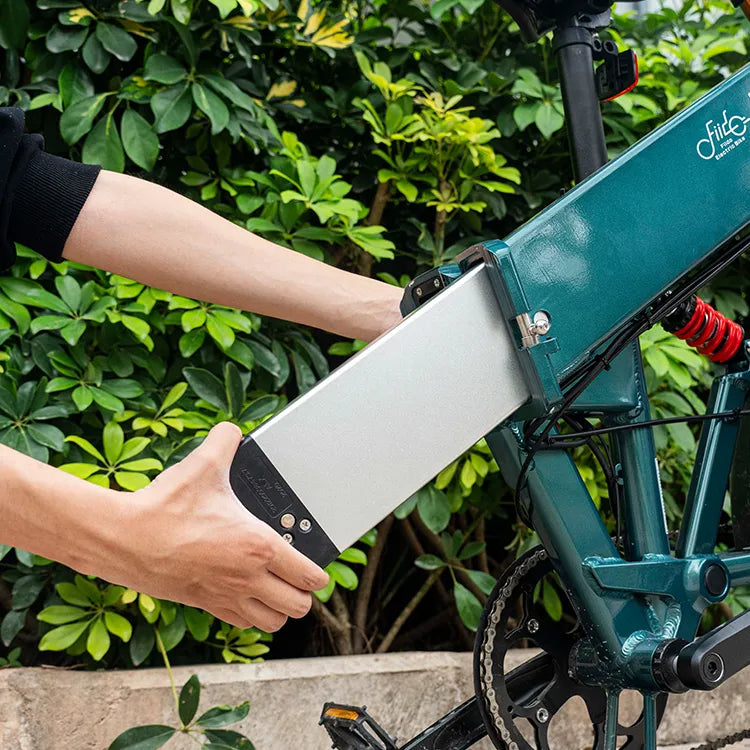

Removable Battery
Charge indoors without moving the whole bike.
Full-Bike Waterproof
IP54 for the bike, with torque sensor rated IP67. Ride through downpours, cross puddles and park it anywhere worry-free.

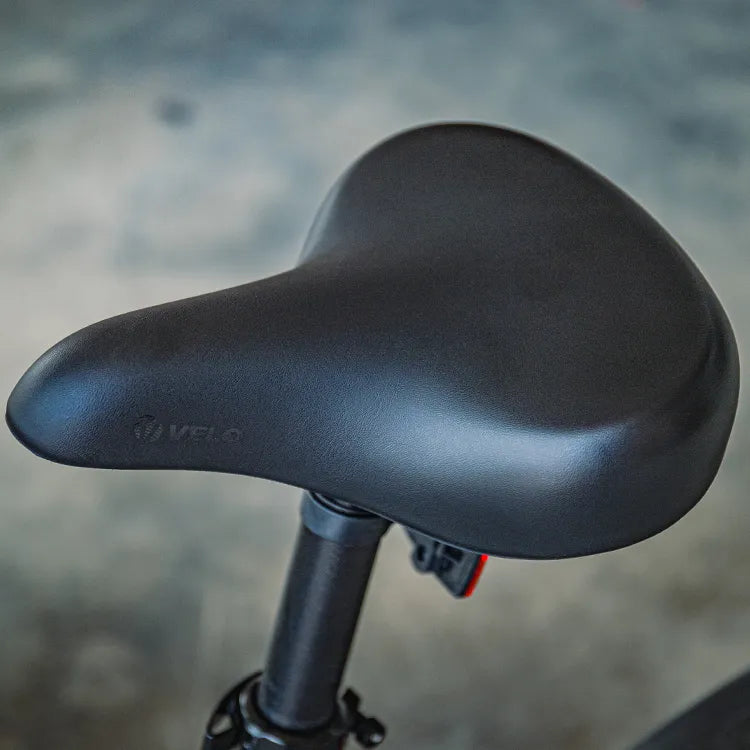

Velo Full-Fit Saddle
Unmatched comfort on long rides. Less pain in the buttocks, reduced pressure on the lower back.
Hydraulic Disc Brakes
Fast, precise, and controlled braking for a safer ride.

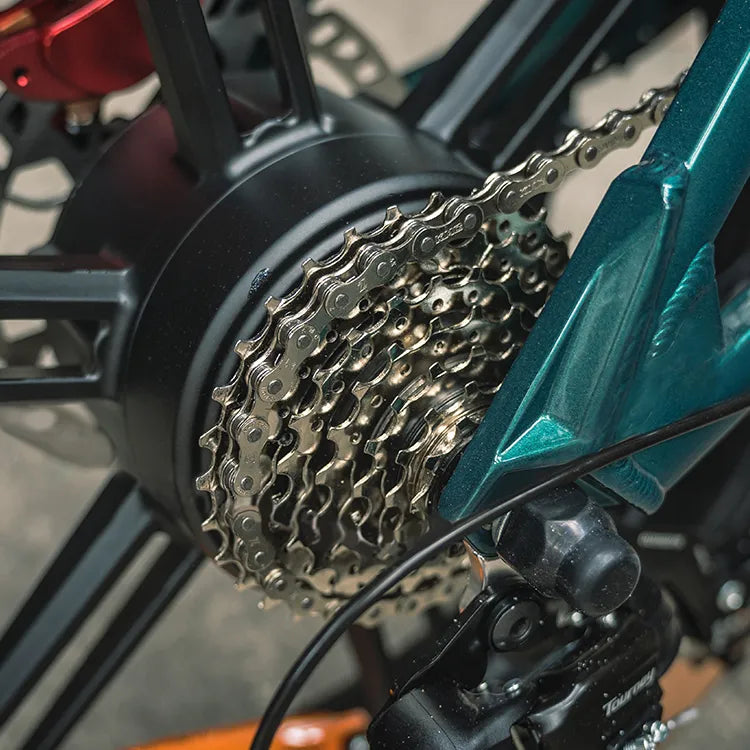

Shimano 7-Speed
Tackles rough terrains and slopes. Less leg fatigue.

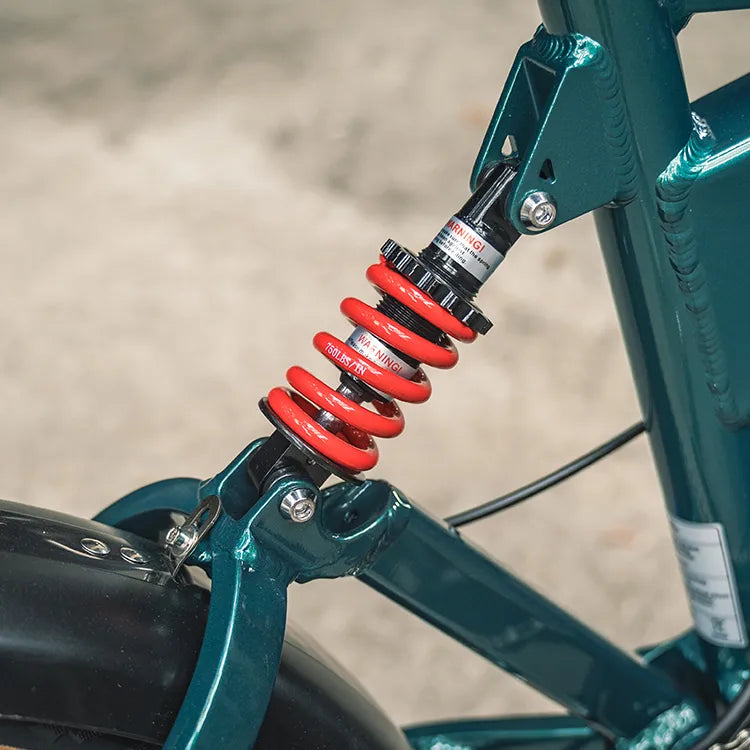

Rear Shock Absorber
Absorbs shock from the rear wheel, keeps the tire in contact with the ground. Increased traction, comfort, and control.

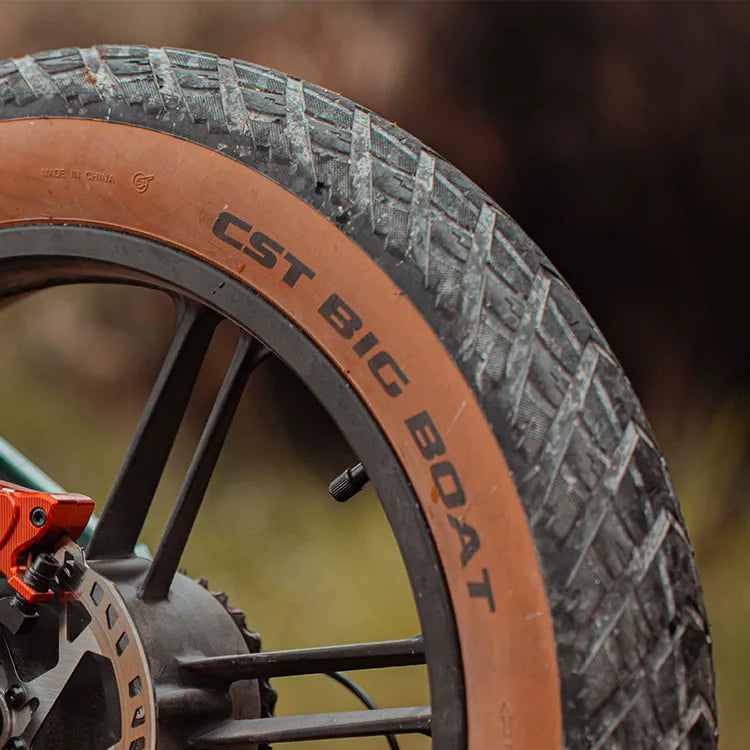

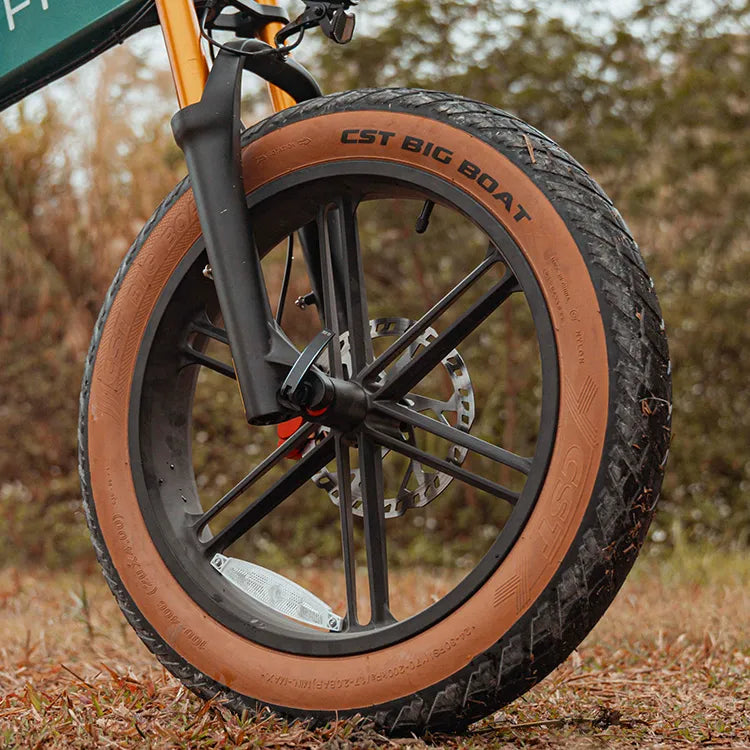

4.0″ Fat Tires
A wider tire-to-ground contact area boosts stability and grip on rough terrain; thicker sidewalls reduce bumps for a smoother ride.
Puncture-Resistant Tires
Lowers the risk of flats, so you can explore with peace of mind.
