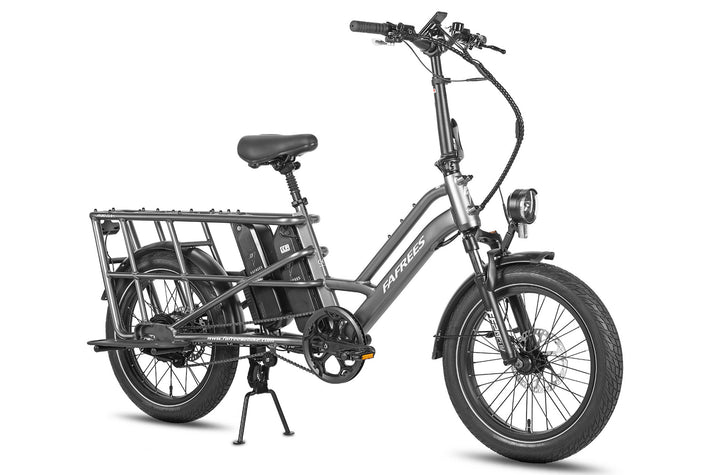

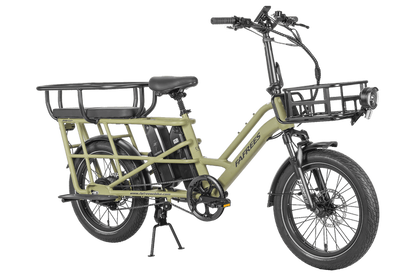

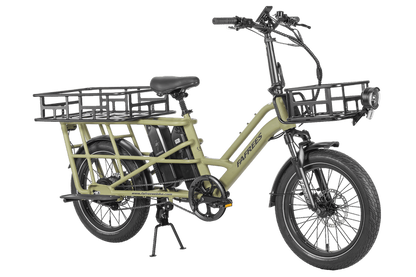

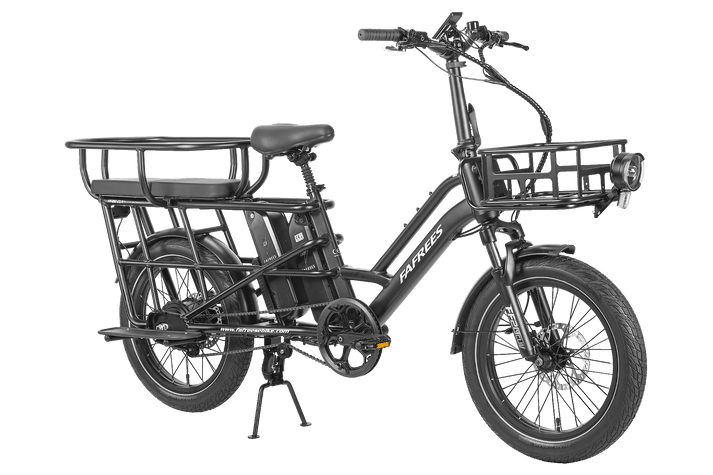

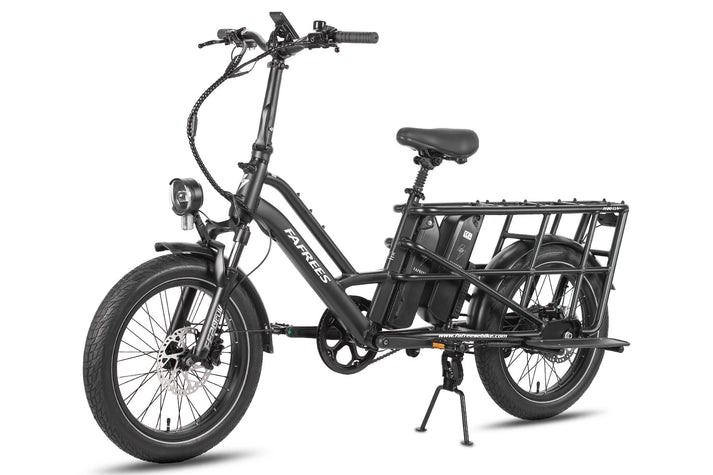

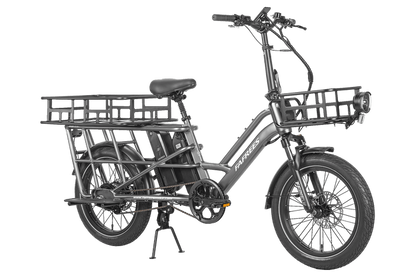

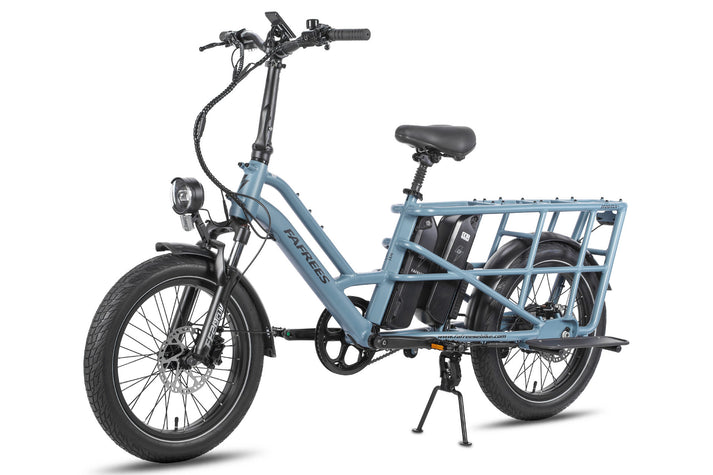

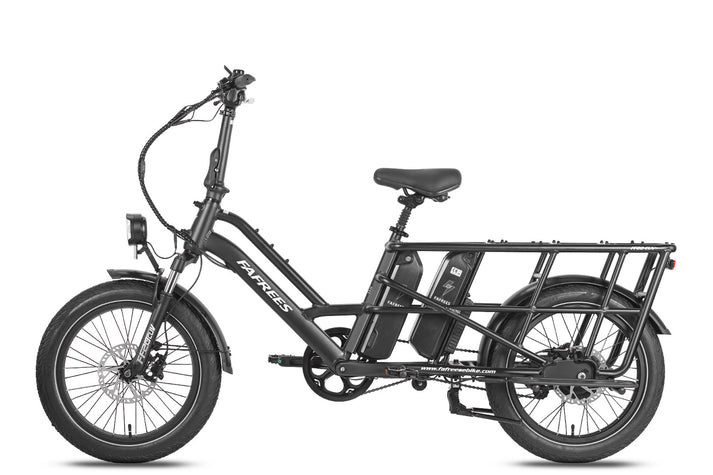

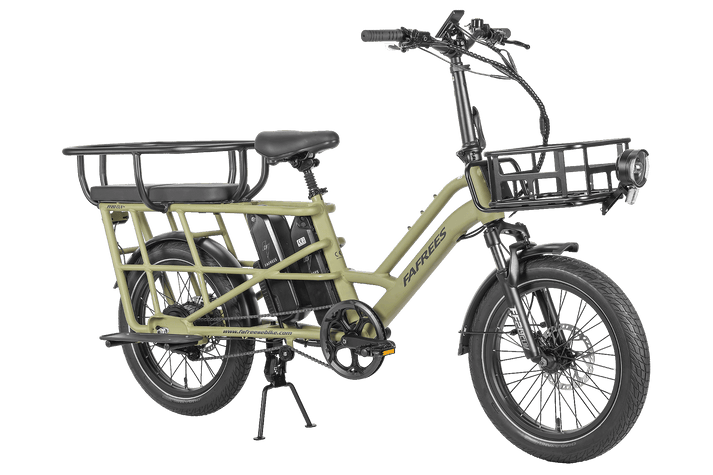

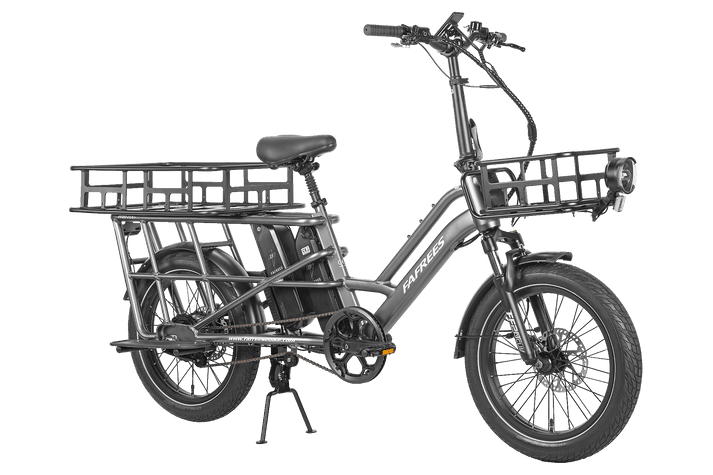

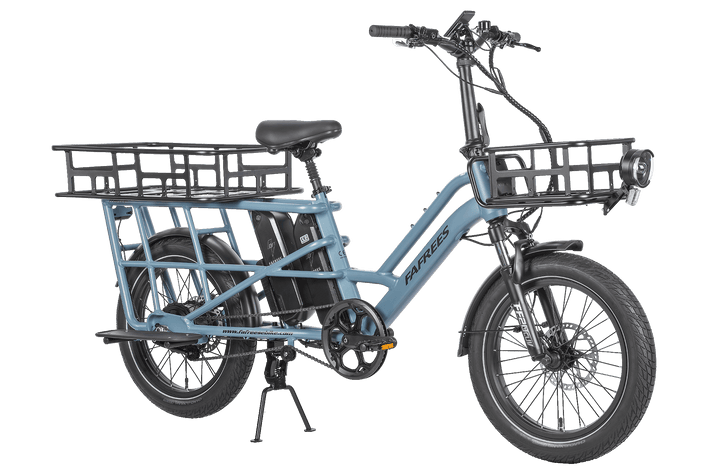

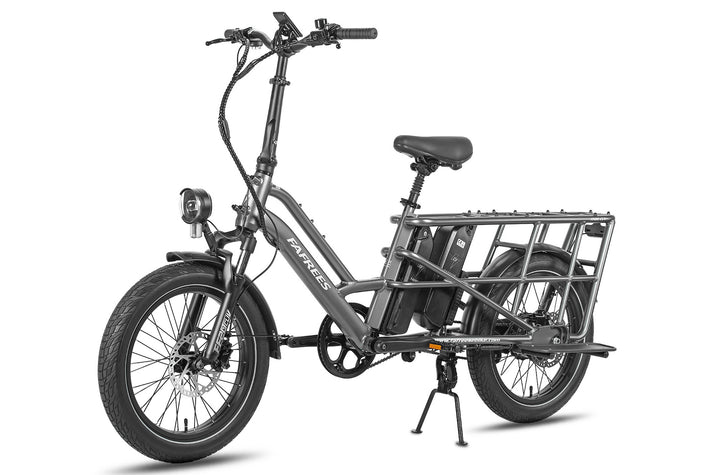

Fafrees FF20 CUV
Fafrees FF20 CUV
Couldn't load pickup availability
- 1–3 Days Delivery
- 30-Day Returns
- 365 Days Warranty
Authorised UK Seller
Authorised UK Seller
We are a UK-based company and an officially authorised representative of Fafrees in the UK.
All products are shipped locally and supported by our UK repair centre.
Even after the warranty period, we’ll do our best to assist with any issues you may encounter.
Responsive Customer Support
Responsive Customer Support
Need help?
We offer live chat support from 9AM–5PM, and our email support team is available 24/7—we’ll get back to you within 24 hours. We're here to help every step of the way.
Trusted After-Sales Support
Trusted After-Sales Support
Warranty & Repairs:
For non-human-related issues, we offer after-sales support and spare parts within 1 year.
If the issue arises after 1 year, parts can still be purchased at cost.
Fafrees FF20 CUV Cargo
- 250W Brushless Motor
- 100-140km Mileage
- 48V/12Ah*2 Lithium Battery
- 25km/h Default Speed
- CST 20*3.0 Fat Tires
- 200kg Payload
Versatile and family-ready, the FF20 CUV features a 250W pedal-assist motor, dual batteries for up to 140 km range, and a modular longtail frame with 200 kg load capacity. Perfect for school runs, daily errands, and weekend adventures.
Discover the all-in-one versatility of a longtail e-bike built to carry kids, cargo, and more.
Family-First Utility
Safely carry up to two children with a modular setup built for family rides.
Dual Batteries, Extended Range
Two 48V 12/15Ah batteries discharge evenly for up to 140/170 km of stable, efficient riding — with quick, removable charging.
Torque Assist, Road Legal
250W motor with torque sensor delivers up to 75 Nm for smooth, compliant power on every ride.
Hydraulic Disc Brakes
Front and rear hydraulic brakes deliver consistent, powerful stopping in all weather and under heavy load.
Dual Suspension
Front fork and suspension seatpost absorb shocks for a smoother, more comfortable ride under load.
Specification
| GENERAL | |
| Range | 100-140km |
| Speed | Max 25km/h |
| Pedal Assist | 3 levels |
| Folding Parts | Handlebar |
| Bike Weight | 38kg |
| Weight Capacity | 200kg |
| Rider Height | 160-200cm |
| Certifications |
EN15194 + CE + E-Mark
|
| Water Resistance | IPX5 |
| ELECTRONIC | |
| Motor |
Rear drive, 48V, 250W(sustained) 750W(peak)
|
| Motor Torque | 75Nm |
| Battery |
48V 24Ah, 1152Wh, removable lithium-ion
|
| Battery Weight | 3.1+3.1kg |
| Charger |
48V Output: 54.6V/ 3A
|
| Charging Time |
9 hours from 0% to 100%
|
| Display |
3.5" IPS color LCD, backlit, IP65
|
| Sensor |
Torque sensor
|
| Lights |
Front and rear lights (with brake lights)
|
| COMPONENTS | |
| Frame |
6061 Aluminum Alloy
|
| Handlebars |
Aluminum 31.8mm, 660mm
|
| Fork |
Suspension fork, 60mm travel, with lockout
|
| Brakes |
Hydraulic disc brakes
|
| Brake Rotor | 180mm 6-bolt |
| Derailleur | n/a |
| Shifter | n/a |
| Wheels |
20in, 13g, 36hole, double wall Aluminum
|
| Tires |
Chaoyang 20x3.0, 30tpi, puncture resistant
|
| Tubes |
Butyl rubber, schrader valve
|
| Chain | 152L |
| Chain Ring | 52T |
| Cassette |
Single-Speed, 16T
|
| Crankset | 170mm |
| Pedals | 9/16" pedals |
| Saddle |
Flip-up foam saddle
|
| Seatpost |
Suspension Seatpost, Ø 27.2mm, 350mm Length. 15mm travel
|
| Kickstand | Included |
| Rear Rack | Included |
| Fenders | Included |

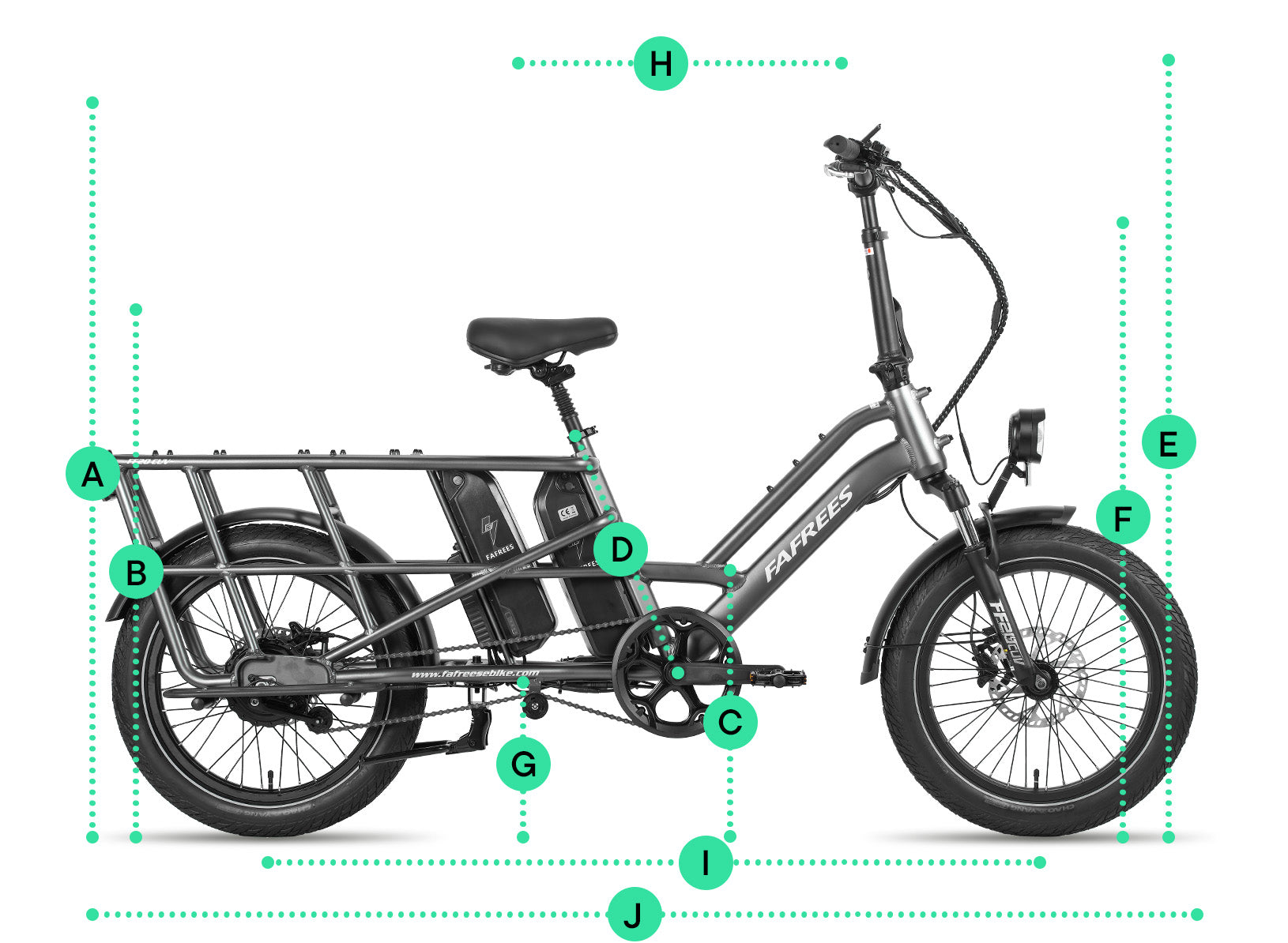

Size
| A: Max. Seat Height | 102 CM |
| B: Min. Seat Height | 85 CM |
| C: Standover Height | 48 CM |
| D: Frame Size | 45 CM |
| E: Max. Handlebar Height | 125 CM |
| F: Min. Handlebar Height | 114 CM |
| G: Bottom Bracket Height | 27 CM |
| H: Top Tube Length | 60 CM |
| I: Wheelbase Length | 135 CM |
| J: Total Length | 190 CM |
| Bike Width | 67 CM |
| Folded Size |
190*50*85 CM
|
What’s In The Box?
| PACKAGE INCLUDED |
| 1 x FF20 CUV ebike |
| 1 x Charger |
| 1 x User manual |
|
1 x Gift box (Includes 2* brake pads, 1* inner tube, 2* valve caps, 1* tool kit, and 1* keychain)
|
|
*To ensure timely delivery and consistent product quality, Fafrees reserves the right to replace components with alternatives of equal or higher quality when necessary. This will not affect the product’s intended performance or safety.
|
More Reasons to Love It
Hydraulic Disc Brakes: Front and rear hydraulic brakes deliver consistent, powerful stopping in all weather and under heavy load.
Color LCD Display:Bright, easy-to-read screen shows speed, battery, and assist level—making every ride simple and informed.
20×3.0" Fat Tires:Grip confidently on cobblestones, gravel, or sand with wide tires that cushion bumps and boost traction.
Folding Handlebar: Easily store your bike in tight spaces with a rust-resistant aluminum frame and foldable handlebar.
200 kg Max Load: Safely carry up to 200 kg, the rider (150 kg), front basket (20 kg), and rear rack (100 kg) — ideal for kids or cargo.
Fully Equipped for the Road: From lights and fenders to footrests and a strong kickstand—everything you need for daily family rides.
