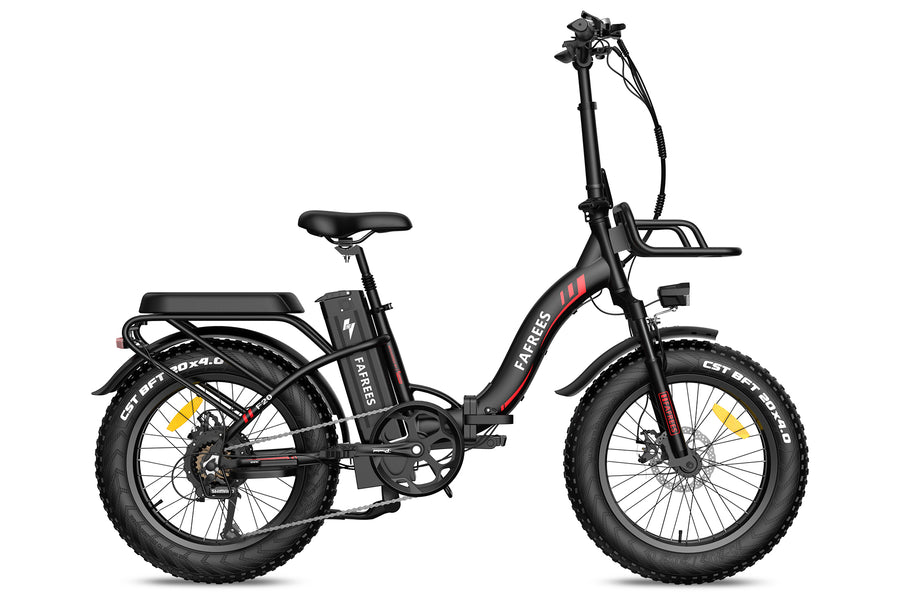

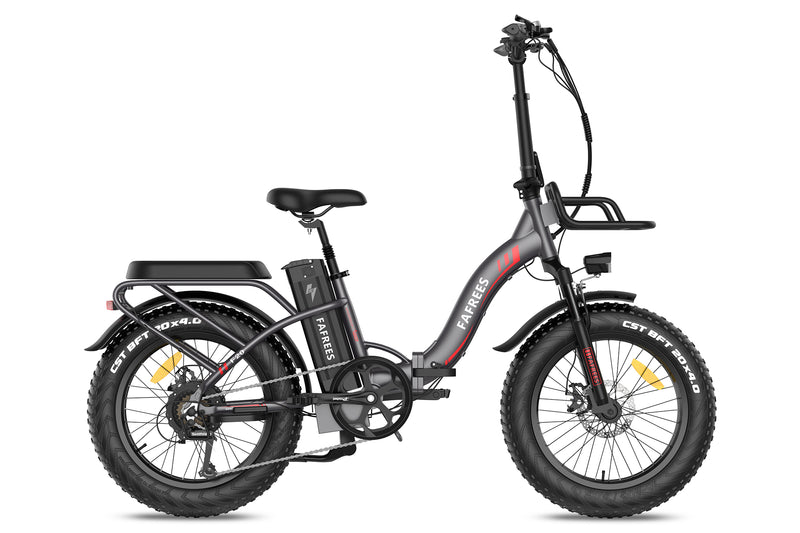

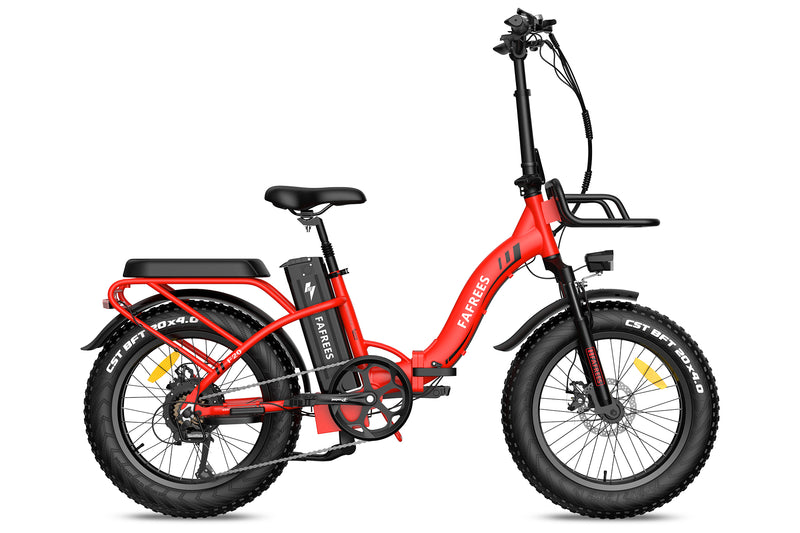

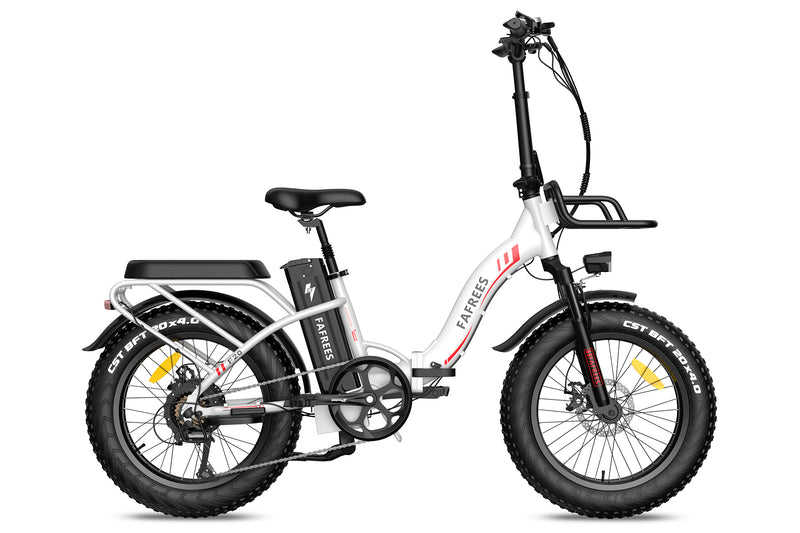

FAFREES F20 Max Folding Fat-tire Ebike

FAFREES F20 Max Folding Fat-tire Ebike

Regular price £969.00
Regular price £1,079.00 Sale price £969.00
Sale Sold out
Shipping calculated at checkout.
Color
  • 1–3 Days Delivery
  • 30-Day Returns
  • 365 Days Warranty

Authorised UK Seller

We are a UK-based company and an officially authorised representative of Fafrees in the UK.


All products are shipped locally and supported by our UK repair centre.


Even after the warranty period, we’ll do our best to assist with any issues you may encounter.

Responsive Customer Support

Need help?
We offer live chat support from 9AM–5PM, and our email support team is available 24/7—we’ll get back to you within 24 hours. We're here to help every step of the way.

Trusted After-Sales Support

Warranty & Repairs:
For non-human-related issues, we offer after-sales support and spare parts within 1 year.


If the issue arises after 1 year, parts can still be purchased at cost.

Specification

Range

100-120KM Range

Speed Default 25 KM/H
Pedal Assist 3 levels
Suspension

Front Spring Fork&Seat Shock Absorber

Transmission

SHIMANO 7 Speed

Tires CST 20"*4.0"
Folding parts

Handlebar, Frame, Pedals

Bike Weight 31.5KG
Weight Capacity 150KG
Rider Height 165-200CM
Motor

500W(Sustained) 690W(Peak), 48V Brushless Rear Hub Motor

Maximum Torque 54N.M
Battery

Lithium-ion 48V, 22.5Ah (1080Wh) with Samsung cells

Charger

48V 3AH Charger, 7 Hour Charging

Display

LCD Smart Easy Read Display

Sensor Cadence Sensor
Frame

6061 Double-Butted Aluminum Alloy

Handlebars

Aluminum 22.2mm, 600mm

Fork

Spring suspension, 50mm travel

Brakes

FILEL Mechanical Disc Brakes

Transmission

SHIMANO 7 Speed

Wheels

Aluminum 36h Front & Rear

Tubes

Butyl Rubber, Schrader Valve

Headlight LED Light
TailLight Brake Light
Chain Ring 170mm w/ 52T
Pedals Foldable Pedals
Seat Custom Seat
Seatpost

Aluminum Alloy, 30.4mm with Shock Absorbing

Kickstand

Included, Rear Mount

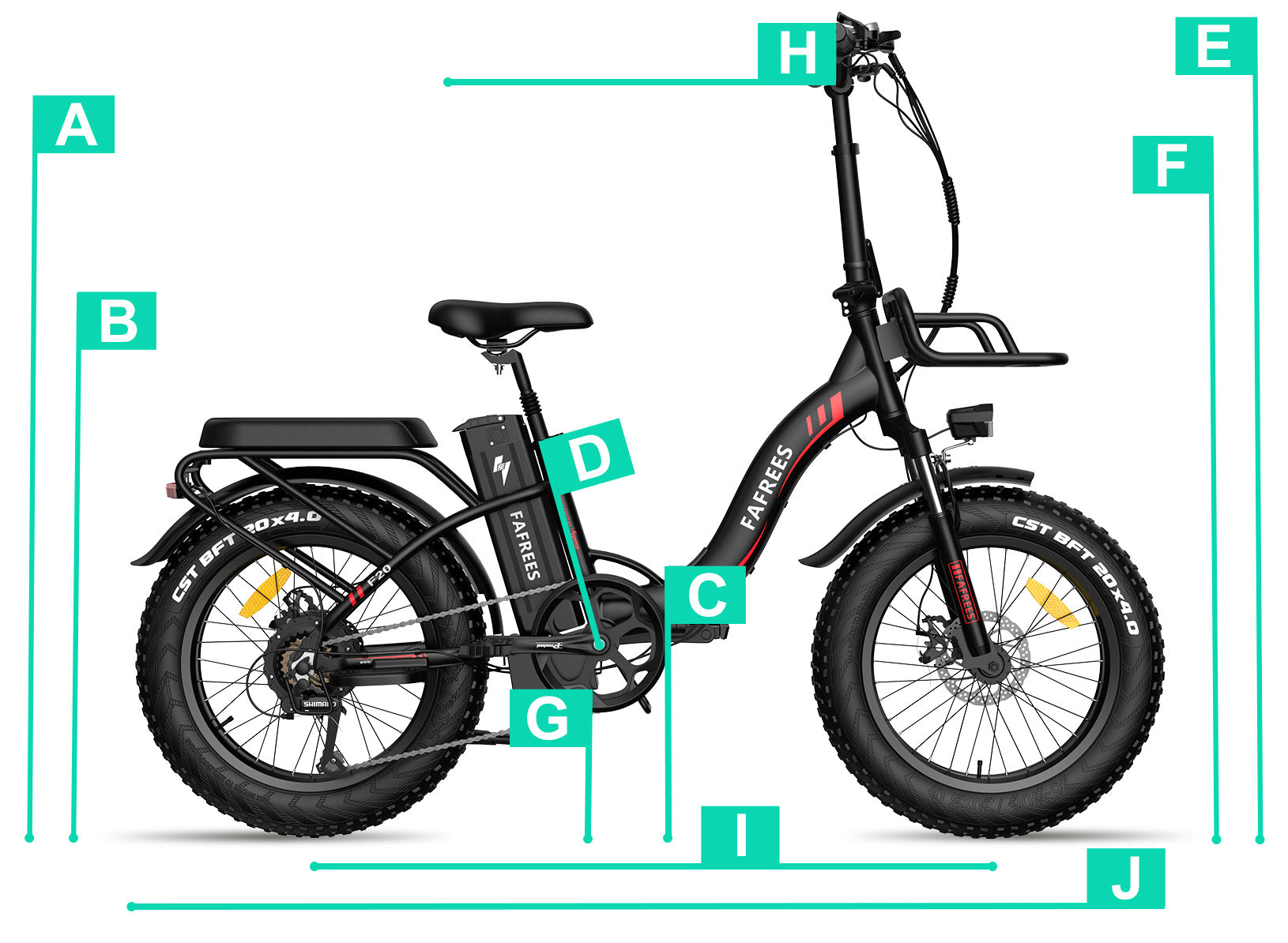

Size

[A] Max. Seat Height 102 CM
[B] Min. Seat Height 86 CM
[C] Standover Height 44 CM
[D] Frame Size 35 CM
[E] Max. Handlebar Height 140 CM
[F] Min. Handlebar Height 120 CM
[G] Bottom Bracket Height 26 CM
[H] Top Tube Length 60 CM
[I] Wheelbase Length 116 CM
[J] Total Length 171 CM
Folded Size 95*50*75 CM



More Reasons to Love It

FAFREES F20 Max electric bike has all-round upgrades in performance to create a better riding experience for you. Built for all-terrain adventures, F20 Max configured a larger capacity battery and a stronger motor. Ride on path, pavement, or dirt with fat tires, pedal assist, and a 500-watt motor to power your off-road adventures. Smooth wiring, foldable body, step-through frame plus front and rear racks, rear footrest, fenders, etc. make your life more convenient and durable.

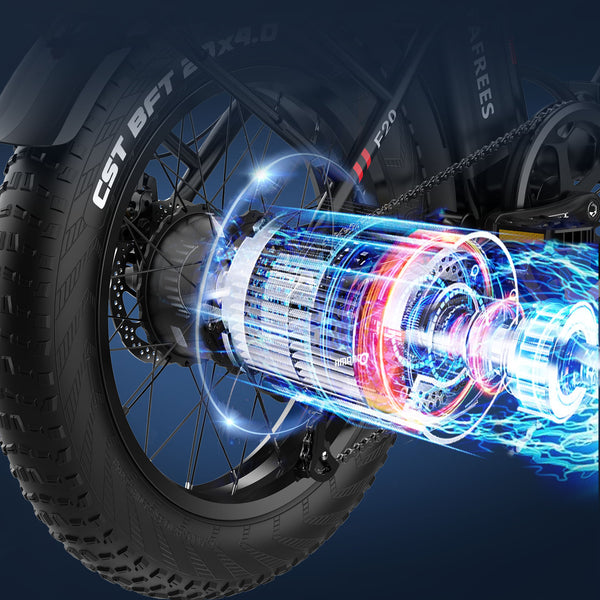

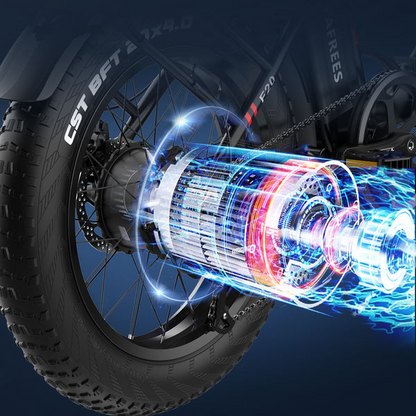

500w Powerful Brushless Motor

The 500W geared hub motor with a maximum torque of 54N.M delivers enhanced climbing capabilities. The maximum speed goes to 25km/h.

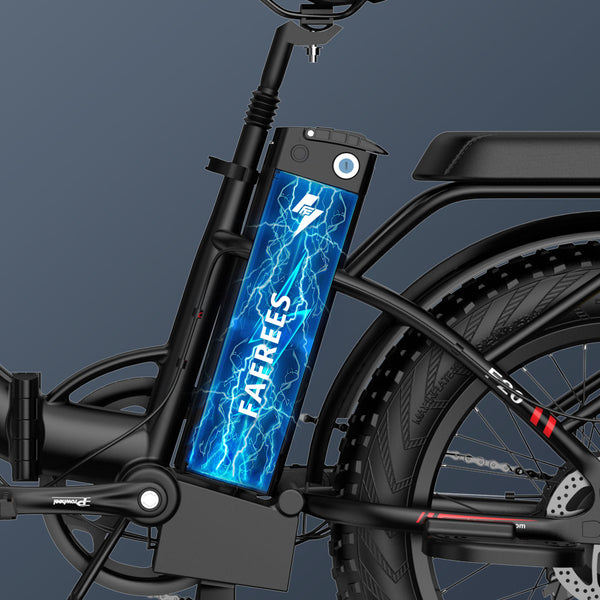

48v 22.5ah Battery with Samsung Cell

Samsung-cell 48V 22.5Ah high-capacity battery extends your riding distance up to 100km (85km for 18Ah battery) on a single charge. Take it home and recharge it whenever you want with the lock design.

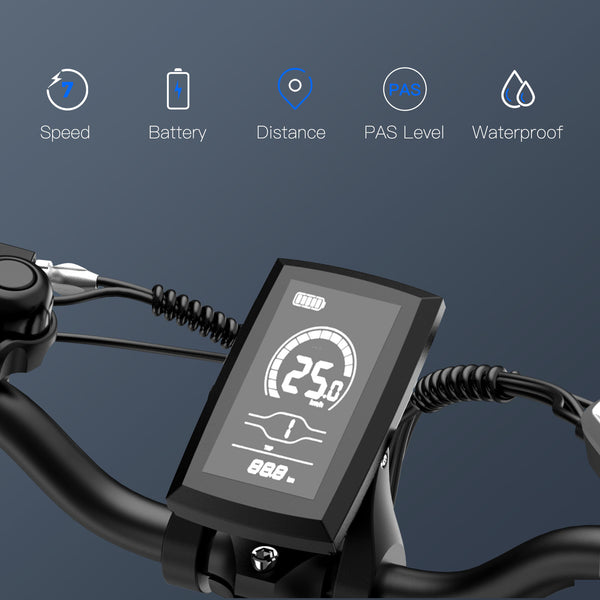

Smart Lcd Display With Easy Control

The large-screen LCD smart display shows various data such as speed, battery, mileage, and gear. It has a walk assistance mode to help your riding whenever you need.

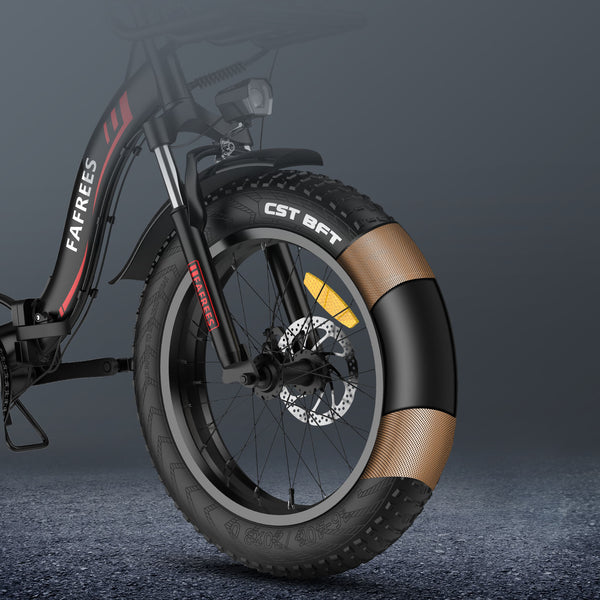

CST 20*4.0" Fat Tires

4.0 fat tire with increased friction that can adapt to a range of riding conditions, including flat ground as well as snow, sand, mud, and gravel roads.

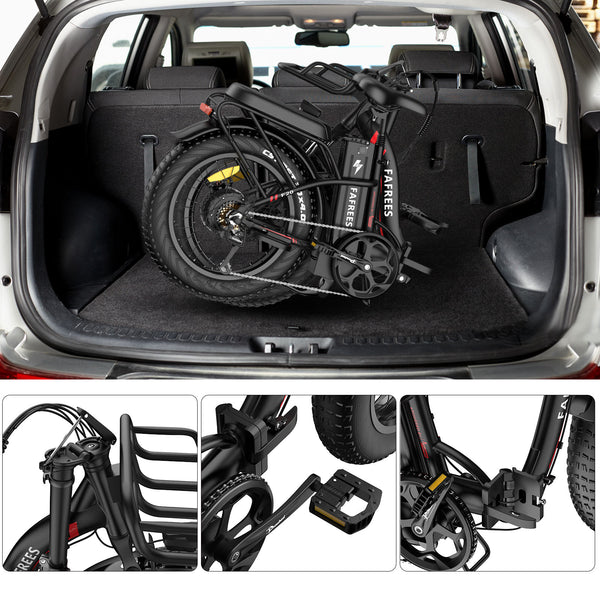

Step-Through Foldable Frame

The F20 MAX features a low-step design as well as foldable frame, handlebar, and pedals. It folds up to an ultra-compact size, is easy to transport, making it ideal for vacation travel and commuting.

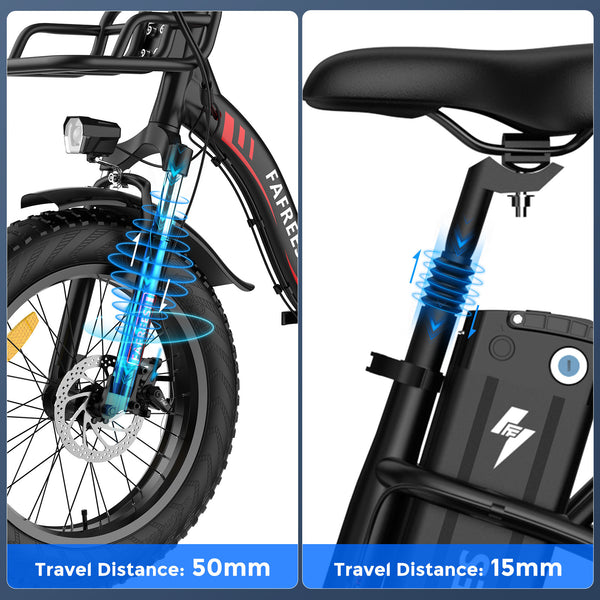

Front & Rear Shock Absorbers

The front suspension and shock seat tube provide immediate and long-lasting shock absorption for increased riding comfort for your weight and riding terrain.

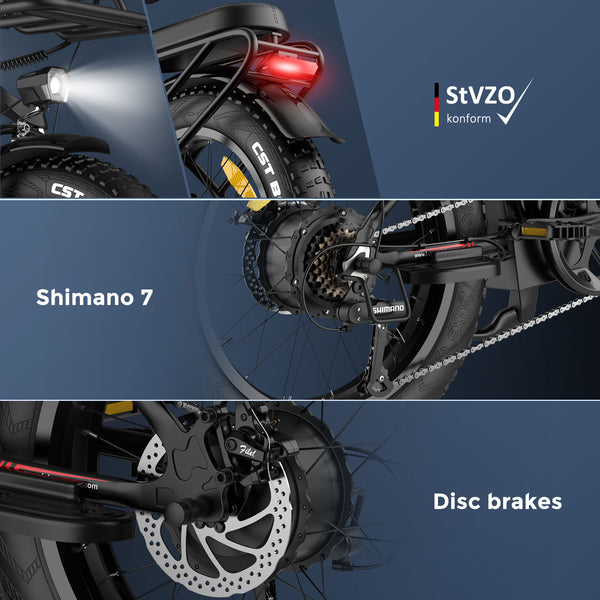

Riding Safety With Confidence

Front and rear bike lights, as well as power-off disc brakes, ensure day and night riding safety. Shimano 7speed shifters offer precise and smooth shifting.

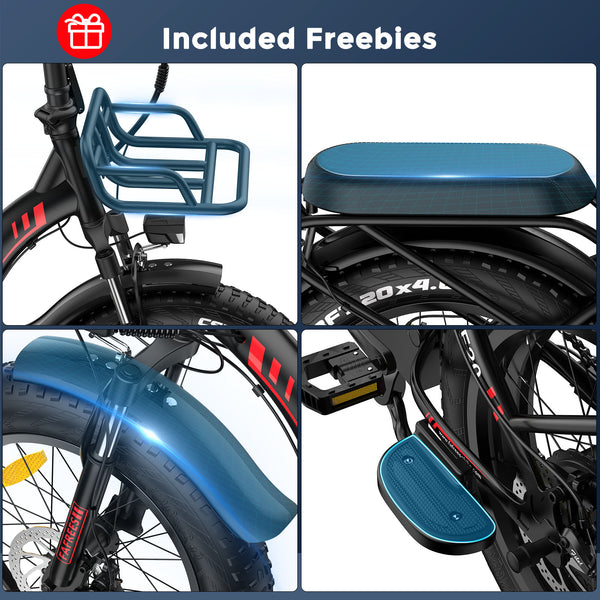

Included Freebies

The bike is equipped with front and rear racks, fenders, and footrests to make your daily use more convenient without raising the price of the product.
