Specification
Range |
90-115km/95-120km
|
Speed |
Default 45 KM/H |
Pedal Assist |
5 levels |
Suspension |
Suspension Fork (35mm travel) & Seat Shock Tube (15mm travel)
|
Transmission |
N/A |
Tires |
20 x 3.0-inch Fat Tires
|
Folding parts |
Folding frame,handlebar
|
Bike Weight |
43KG |
Weight Capacity |
180KG |
Rider Height |
160-200CM |
Motor |
500W (Sustained), 750W (Peak), 48V Rear Drive Motor
|
Maximum Torque |
65N.M |
Battery |
Lithium-ion 48V, 21Ah/23.45Ah (1008Wh/1125.6Wh)
|
Charger |
48V 3A Charger, 7-8 Hours Charging
|
Display |
LCD Smart Easy Read Display, Color screen
|
Sensor |
Cadence Sensor |
Frame |
Aluminum alloy |
Handlebars |
Aluminum 31.8mm, 660mm
|
Fork |
Spring suspension, 35mm travel
|
Brakes |
Hydraulic Disc Brakes
|
Transmission |
N/A |
Wheels |
Aluminum 36h Front & Rear
|
Tubes |
Butyl Rubber, Schrader Valve
|
Headlight |
LED Light |
TailLight |
Brake Light |
Chain Ring |
165mm L/ 36T |
Pedals |
Platform Pedals |
Seat |
Leather Seat |
Seatpost |
Steel, 27.2*400mm with Shock Absorbing
|
Kickstand |
Included, Rear Mount
|
Size
[A] Max. Seat Height |
106 CM |
[B] Min. Seat Height |
82 CM |
[C] Standover Height |
40 CM |
[D] Frame Size |
43 CM |
[E] Max. Handlebar Height |
116 CM |
[F] Min. Handlebar Height |
109 CM |
[G] Bottom Bracket Height |
20 CM |
[H] Top Tube Length |
68 CM |
[I] Wheelbase Length |
118 CM |
[J] Total Length |
174 CM |
Bike Width |
74 CM |
Folded Size |
100*74*82 CM |
More Reasons to Love It

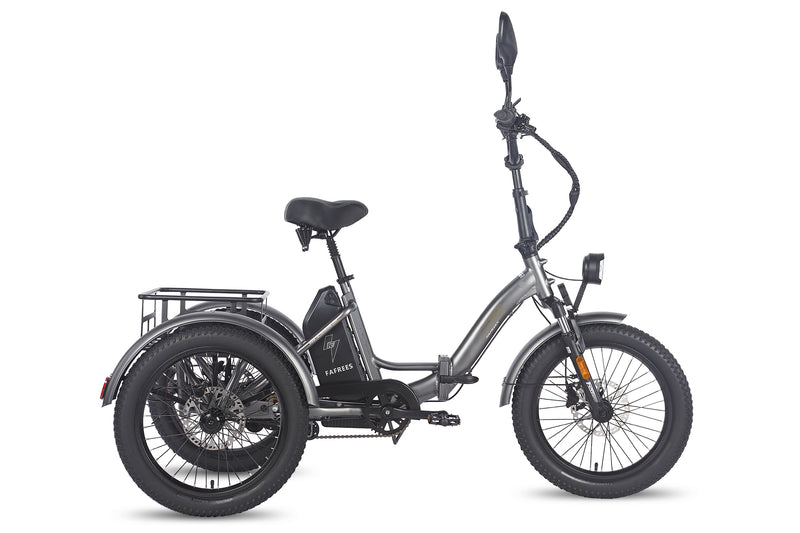

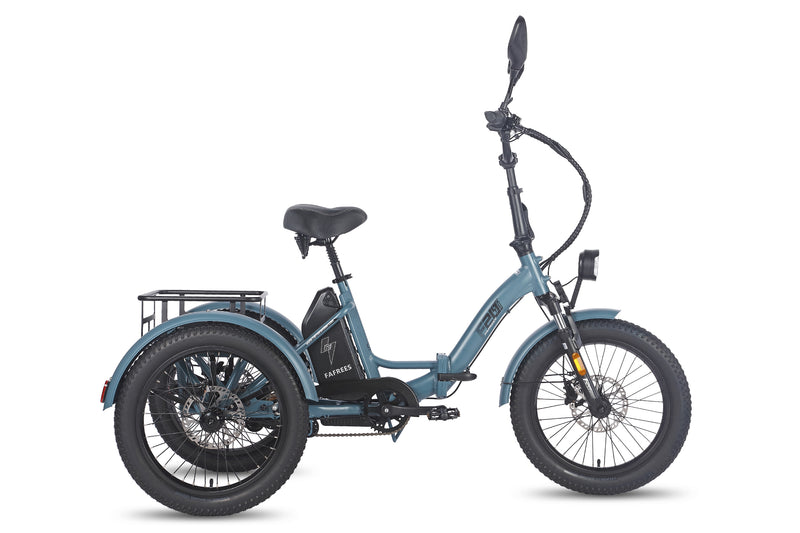

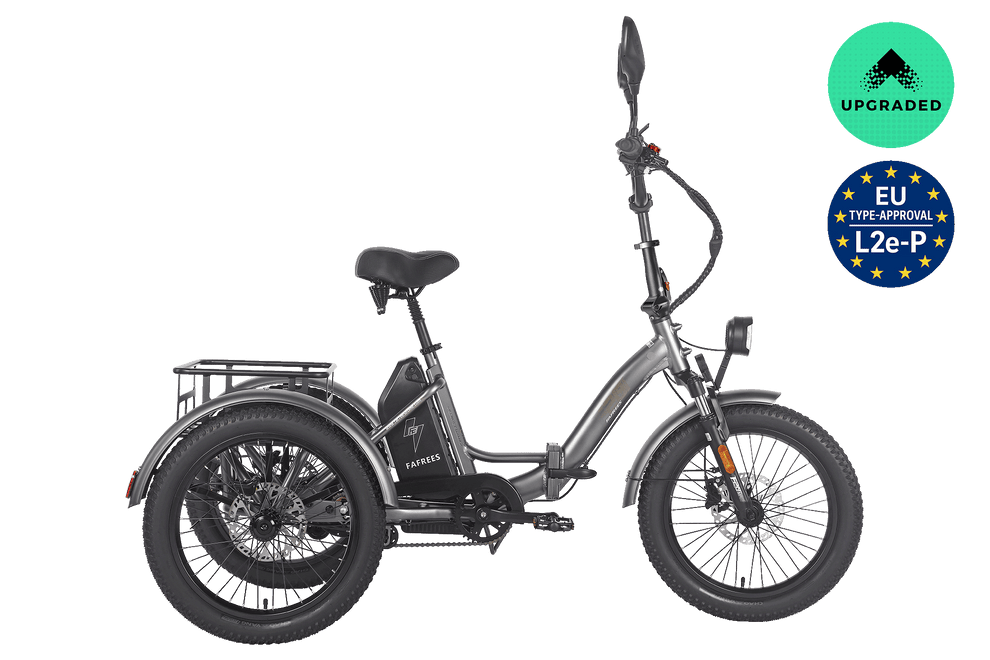

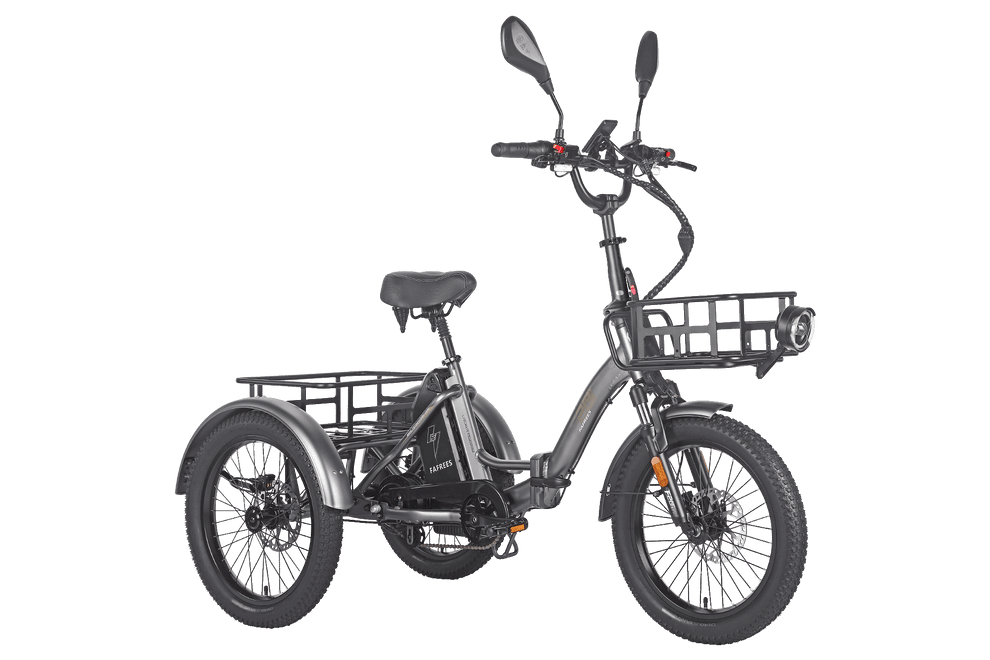

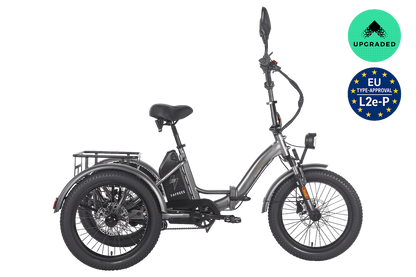

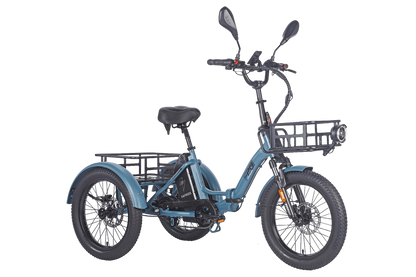

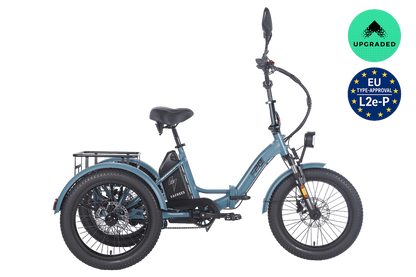

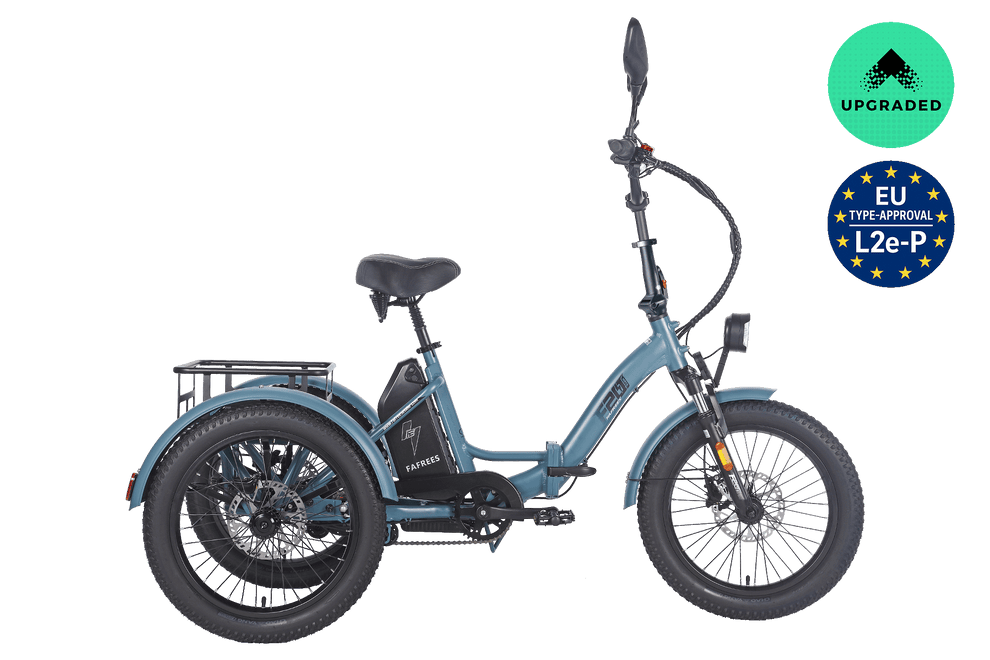

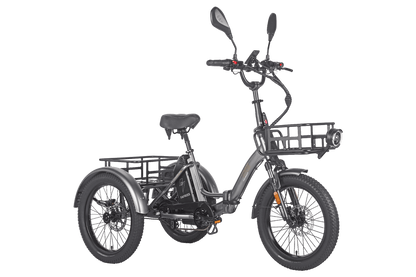

Fafrees F20 Mate is a 45KM/H EU-Type Approved S-Pedelec, combining high-speed performance with full legal compliance. Built for urban freedom, it lets you commute beyond the standard 25 km/h limit with confidence and power. Its reinforced frame, triple braking system, and full safety features (turn signals, hazard lights, horn, and mirrors) offer unmatched stability and confidence on every ride. Faster and stronger than standard e-bikes, the F20 Mate delivers a smarter, street-legal ride designed for those who demand speed, legality, and everyday practicality.

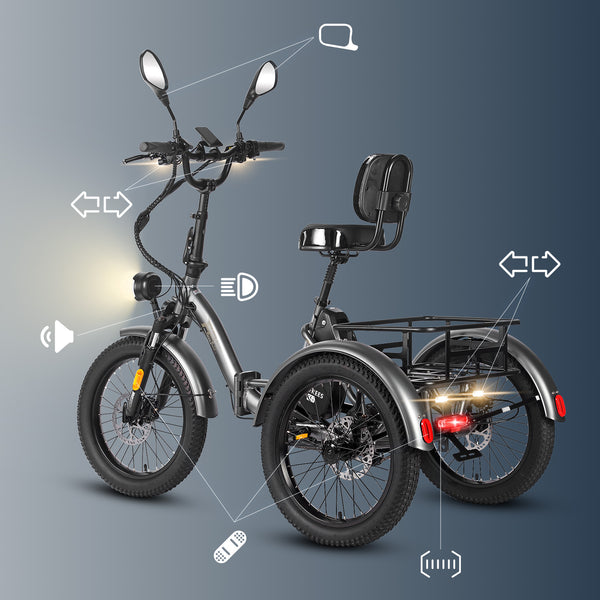

FULLY CERTIFIED FOR LEGAL, SAFE RIDING
F20 Mate is not only EU L2e-P certified for legal road use, but it also comes equipped with certified components, including turn signals, mirrors, lights, and horn-all meeting EU road safety standards. Every detail is built for compliance, ensuring you ride with confidence, safety, and peace of mind.
UNMATCHED POWER FOR EVERY RIDE
F20 Mate is equipped with a 500W motor (750W peak) and 65Nm of torque, delivering smooth acceleration and strong control for both city commutes and off-road rides. Whether in traffic or on tough terrain, it ensures a powerful, effortless experience.

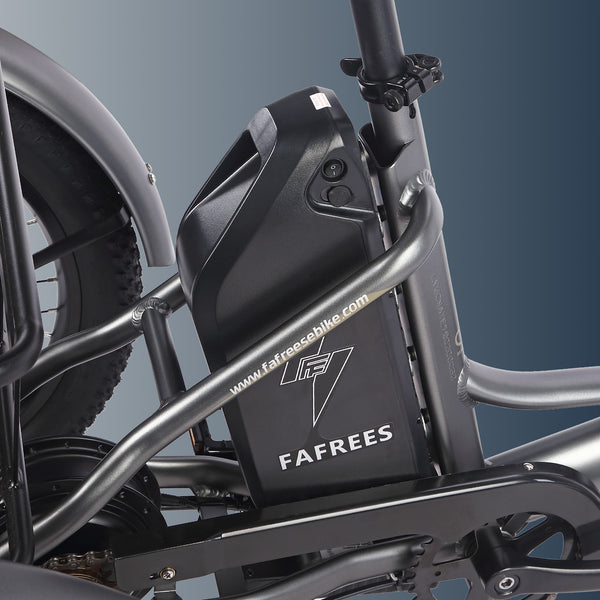

LONGER RANGE WITH UPGRADED BATTERY
Equipped with an upgraded 48V lithium-ion battery, available in 21Ah and 23.45Ah capacities. The 23.45Ah version offers even more endurance, making it ideal for long-distance riders. Combined with efficient charging capabilities, the upgraded battery ensures reliable performance and peace of mind on every journey.

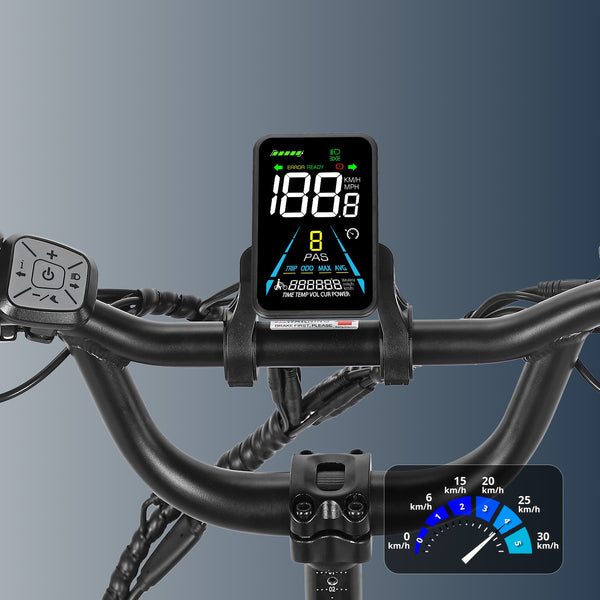

LCD COLOR DISPLAY
The high-definition LCD display offers a variety of features with easy control, and presets 5 speed levels. The large-screen shows various data such as speed, battery, mileage, and gear. It has a walk assistance mode to help your riding whenever you need.

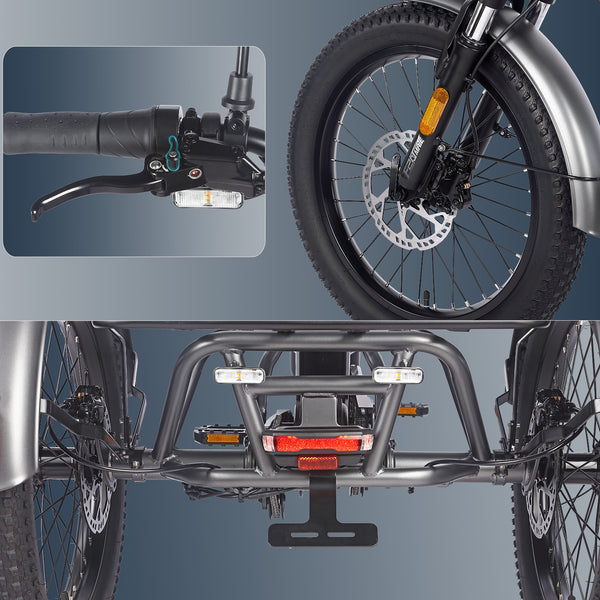

UPGRADED BRAKE SYSTEM
Equipped with an enhanced triple brake system, featuring hydraulic disc brakes on both the front and rear wheels. This provides superior stopping power, ensuring better control and safety, even in tough riding conditions. The added rear brake offers improved stability, making your rides smoother and more secure.

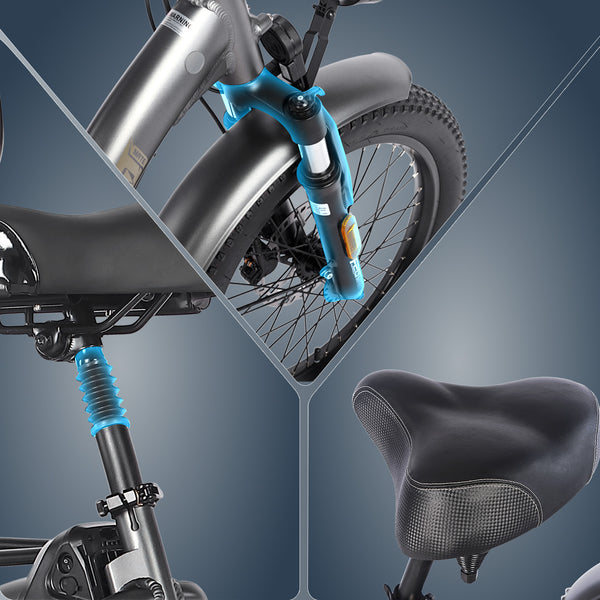

ENHANCED SUSPENSION
Features an enhanced suspension system with a front This damping system absorbs shocks and vibrations, providing a smoother ride on uneven surfaces. spring fork and seat shock tube for improved comfort.

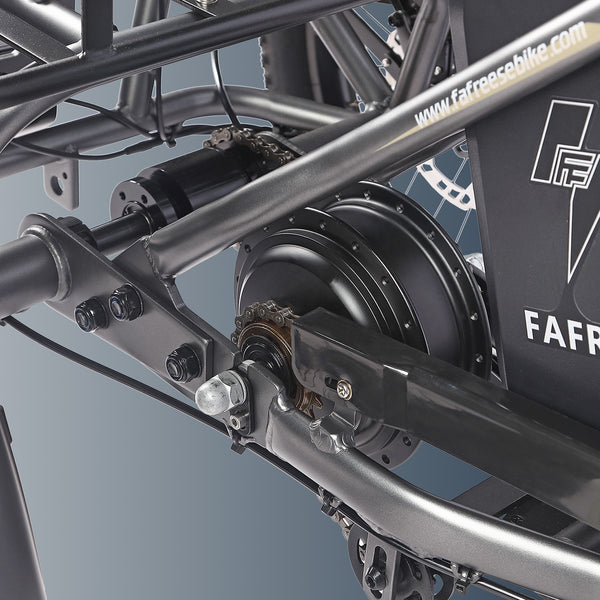

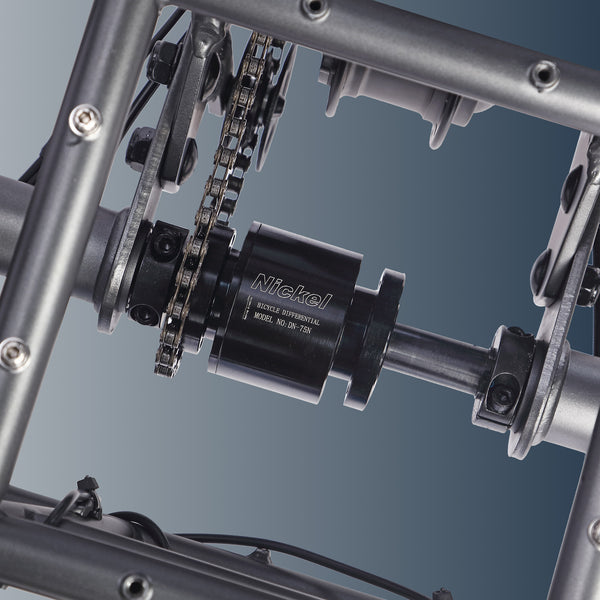

BUILT-IN DIFFERENTIAL FOR SMOOTHER, SAFER TURNS
F20 Mate features a built-in differential system that allows the rear wheels to rotate at different speeds when turning, ensuring greater stability, reduced tire wear, and a safer, more comfortable ride — especially at higher speeds or on tight corners.

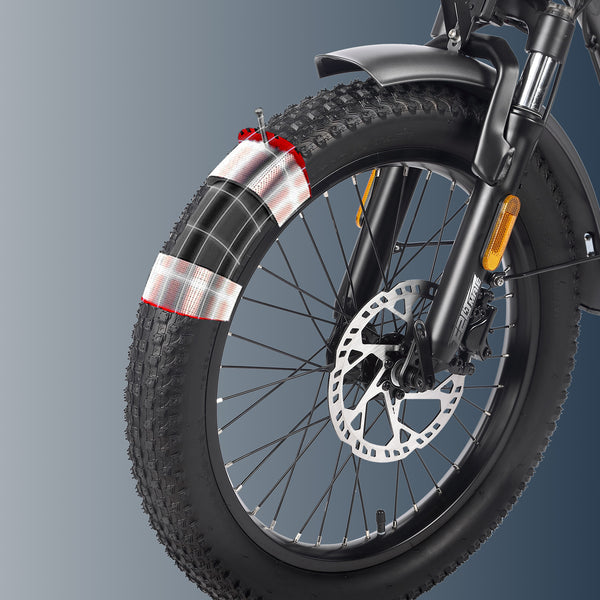

20*3.0 FAT TIRES
Equipped with durable 20"x 3.0" fat tires, designed to provide excellent traction and stability on a variety of terrains. These wide tires offer superior shock absorption, making rides smoother on rough roads, gravel, and even sand. With their sturdy build and enhanced grip, the tires ensure a safer and more comfortable riding experience.
STRONGER FRAME FOR BETTER STABILITY
Features a reinforced aluminum alloy frame, designed for enhanced strength and durability. The upgraded frame structure reduces wear and increases stability, providing a more robust foundation for all your rides.

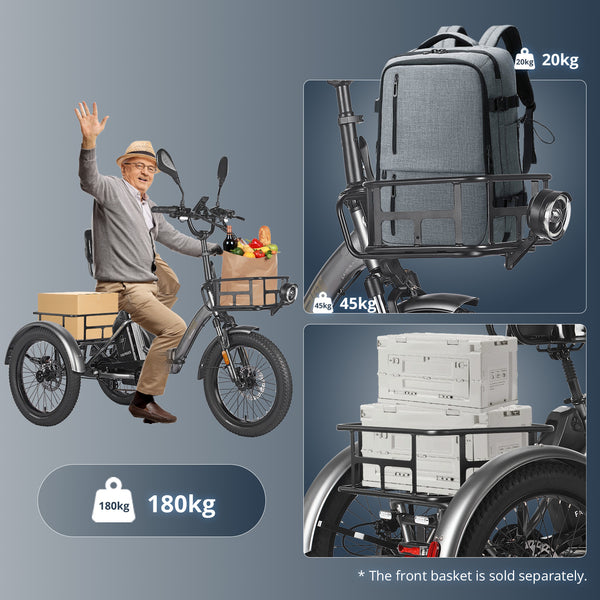

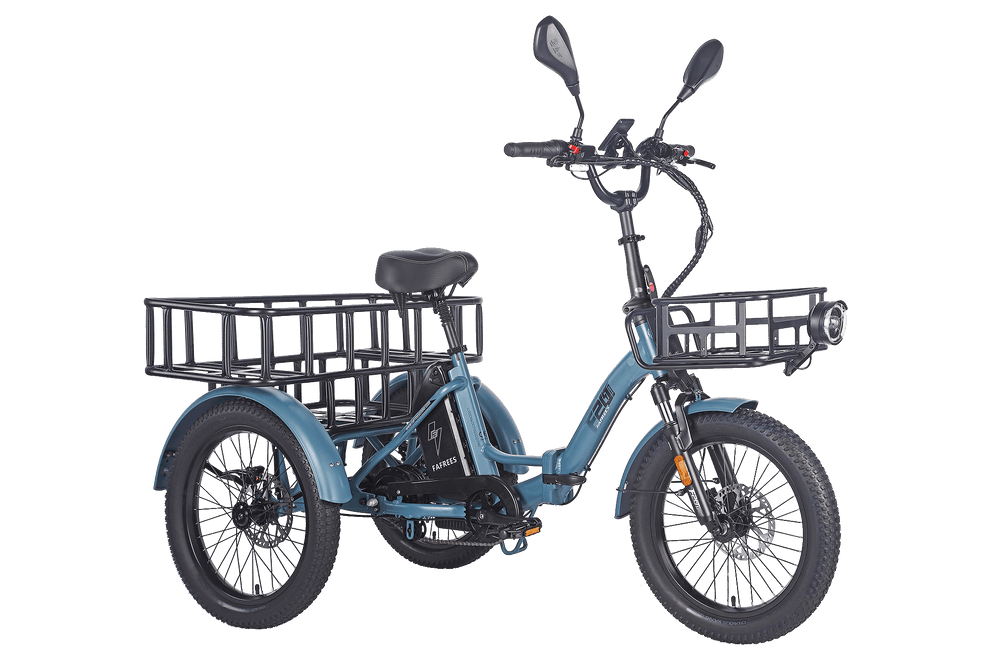

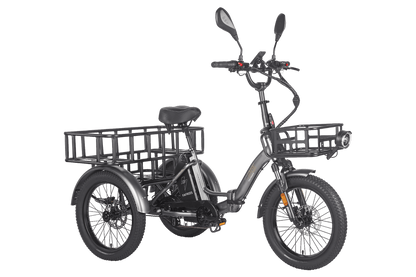

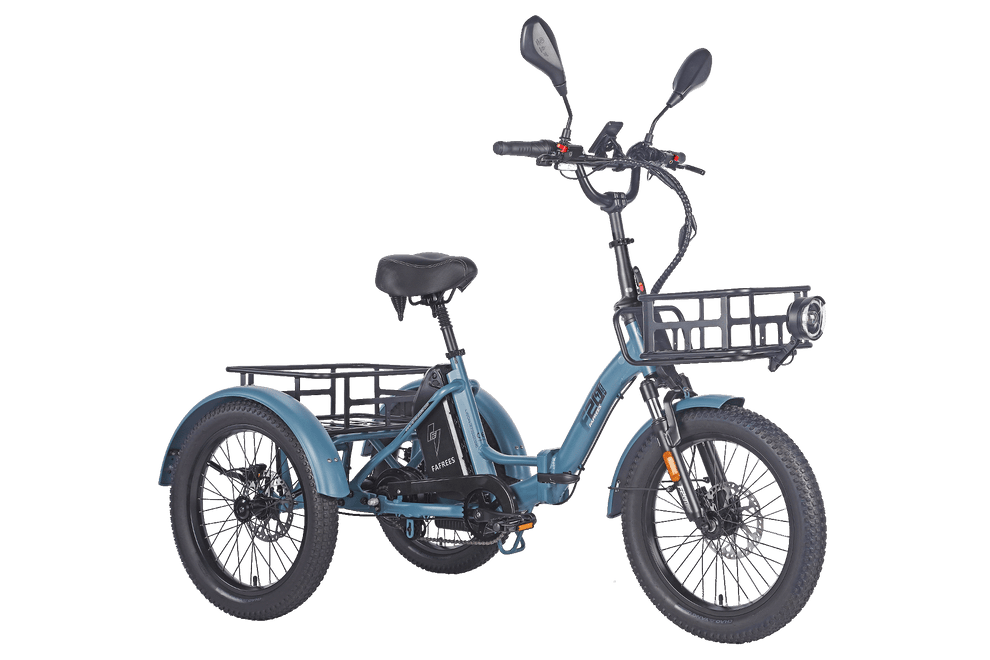

HEAVY DUTY DESIGN

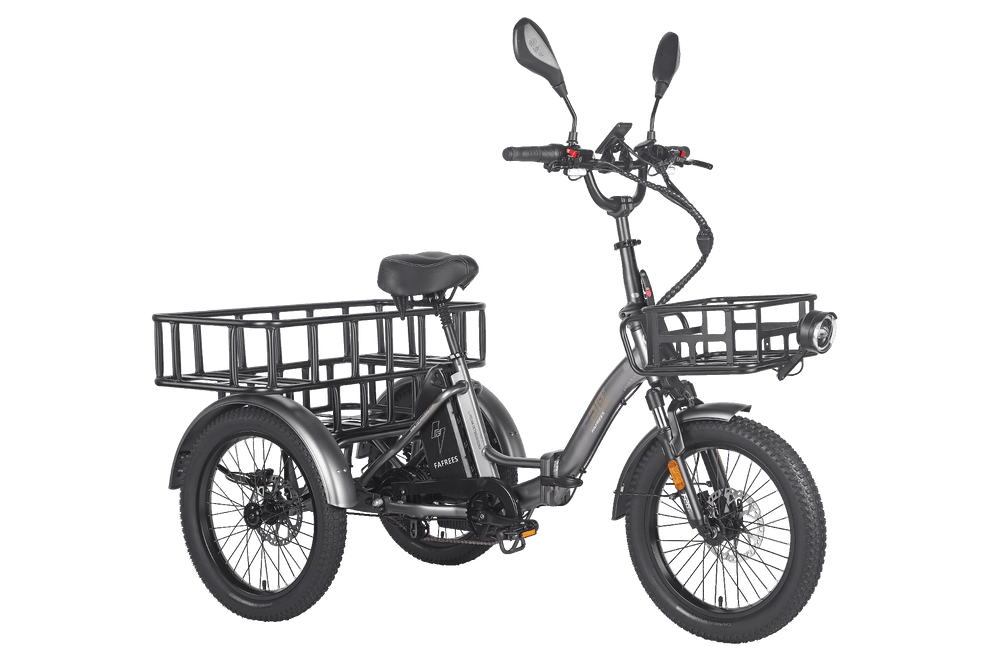

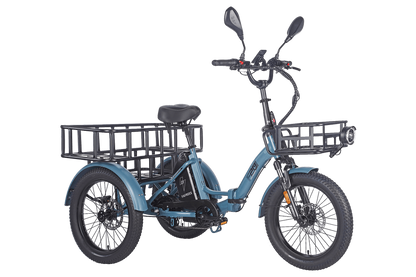

A robust and durable build with optional front basket and expanded rear basket to handle heavy loads. Distribute weight within the guidelines: Max rider weight alone 150kg, Max Front Basket Weight 20 kg, Max Rear Basket Weight 45 kg. Never exceed 180kg total payload capacity. The reinforced trailer tube allows you to carry your gear with confidence.
