ENGWE MAPFOUR N1 AIR
ENGWE MAPFOUR N1 AIR
Couldn't load pickup availability
- 1–3 Days Delivery
- 30-Day Returns
- 365 Days Warranty
Authorised UK Seller
Authorised UK Seller
We are a UK-based company and an officially authorised representative of ENGWE in the UK.
All products are shipped locally and supported by our UK repair centre.
Even after the warranty period, we’ll do our best to assist with any issues you may encounter.
Responsive Customer Support
Responsive Customer Support
Need help?
We offer live chat support from 9AM–5PM, and our email support team is available 24/7—we’ll get back to you within 24 hours. We're here to help every step of the way.
Trusted After-Sales Support
Trusted After-Sales Support
Warranty & Repairs:
For non-human-related issues, we offer after-sales support and spare parts within 1 year.
If the issue arises after 1 year, parts can still be purchased at cost.
ENGWE MAPFOUR N1 AIR
- 250W MIVICE M070 Rear Hub Motor
- 15.6 kg Ultra-lightweight
- 100KM Long Range
- Carbon Fiber City E-bike
Specification
| Material |
Carbon Fiber Frame |
| Motor |
MIVICE M070 Rear Hub Motor |
| Sensor | Torque Sensor |
| Torque | 40 Nm |
| Tires |
700*38C Spoke Tires |
| Lights |
Front light & Solar Tail Light |
| Transmission System |
SHIMANO 7-Speed |
| Brake |
160mm Front & Rear Mechanical Disc Brakes |
| Battery |
36V 10Ah SAMSUNG Removable Lithium-ion Battery |
| Speed | 25 km/h |
| Mileage |
100 km (PAS 1 level) |
| Charging Time |
About 5-8H (The charging time of the battery depends on the usage of the battery.) |
| Maximum Climbing degree | 10° |
| Display |
LCD Color Display |
| Bike Weight |
15.6 kg (34.39 lbs) |
| Gross Weight |
25.4 kg (55.99 lbs |
|
All stated weight numbers have a +/- 3%-5% tolerance. Bike weight includes the battery but excludes all accessories. |

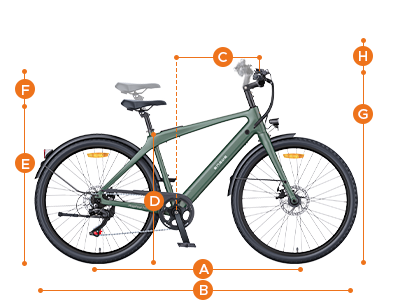

Size
ENGWE MAPFOUR N1 AIR
| Rider Height | 5.25ft)-6.4(ft) |
| Payload Capacity | 120KG (264.5lbs) |
| Package Dimensions (LWH) | 148.4*22.5*73CM |
| A–Wheelbase | 110.5 cm |
| B–Total Length | 181 cm |
| C –Reach | 44 cm |
| D–Standover Height | 75.5 cm |
| E–Min Saddle Height | 82.5 cm |
| F–Max Saddle Height | 95 cm |
| G–Min Handlebar Height | 105 cm |
| H–Max Handlebar Height | 112 cm |
| Please note: There may be a difference of 0~5 CM between measured and actual data. |

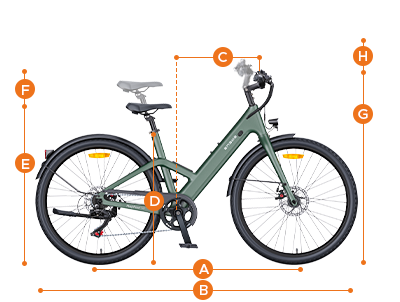

ENGWE MAPFOUR N1 AIR ST
| Rider Height | 5.1(ft)-6.2(ft) |
| Payload Capacity | 120KG (264.5lbs) |
| Package Dimensions (LWH) | 146.4*22.5*73CM |
| A–Wheelbase | 109.1 cm |
| B–Total Length | 179.7 cm |
| C –Reach | 42 cm |
| D–Standover Height | 75.8 cm |
| E–Min Saddle Height | 84.5 cm |
| F–Min Saddle Height | 100 cm |
| G–Min Handlebar Height | 105 cm |
| H–Max Handlebar Height | 112 cm |
| Please note: There may be a difference of 0~5 CM between measured and actual data. |
What’s In The Box?
| N1 Air E-bike | *1 |
| Battery | 36V 10Ah SAMSUNG Lithium-Ion*1 |
| 48V 2Ah Battery Charger | *1 |
| Pedals | *2 |
| Front & Rear Fenders | *1 |
| Bike Kickstand | *1 |
| Assembly Tools | *1 |
| User Manual | *1 |
| Please note: The product you receive is based on the option you selected to order. |
More Reasons to Love It
Ultra Lightweight Carbon
Crafted with the same premium Toray carbon fiber used by Trek, featuring exclusive monocoque molding for superior strength and design.
1.28kg Carbon frame ≈ 2 iPad Airs
Super-light carbon fiber frame, just 1.28 kg, engineered for optimal aerodynamics, delivering a smoother, more stable ride with reduced wind drag
Solid & Stable
Eleven times stronger than aluminum, offering exceptional stability for precise control and ride, even on sharp turns
Smooth Ride Assurance
Engineered for smoother rides, the carbon fiber frame offers superior shock absorption, reducing road vibrations for a more comfortable and controlled experience, even on rough terrain.
Cycle for a week on a charge
Designed for urban life. With long-lasting power, skip daily charging and focus on your journey, not your battery.
Anti-theft Protection
Protect your ride with smart technology that senses threats and keeps your bike traceable, ensuring your urban commute stays worry-free and secure.
Removable Samsung Battery
Effortless power in a sleek design. Our removable battery clicks in or out in just one second, blending simplicity with convenience.
250W Inner Rotor Motor
Compact power with 250W output and 40Nm torque, delivering seamless performance in a sleek design almost indistinguishable from a standard bike
Shimano 7-Speed
Seamlessly shift through 7 speeds, offering versatility for various terrains and riding conditions.
15.6kg Lightweight
Ultra-light design enhances agility and ease of handling, perfect for urban commuting.
700c Tires
Built for speed and stability, providing a smooth ride on diverse urban surfaces.
Solar Taillight
Enjoy eco-friendly performance with a solar-powered taillight.
High-Quality Mechanical Brake
Reliable and precise stopping power with low maintenance for enhanced safety.
Torque Sensor
Delivers smooth and responsive pedal assist by precisely measuring your pedal force for a natural ride.
