Specification
General Spec |
Frame |
All-aluminum alloy
|
Brake |
Front and rear DYISLAND hydraulic brake
|
Front fork |
Aluminum shoulder iron leg spring shock absorber front fork
|
Range |
40-60 km (pure electric mode) 100-120 km (auxiliary mode) (Actual performance will vary depending on temperature, road conditions, rider weight, etc.) |
Speed |
25 km/h (When the speed limit is set at 25, the motor will stop providing power at the specified maximum speed. You can still ride above the prescribed maximum speed with pure muscle strength. This limit is set according to local regulations) |
Net Weight |
Material of 39.8kg |
Certificate |
CE certification |
Product size |
1950*1100*710mm |
Package size |
1550*340*830mm |
Tyre Size |
26*4.0 inches |
Assist Intelligent |
Level 0-5 pedal assist
|
Angle of climb |
Maximum climbing Angle 55°
|
Rider Heights |
170-200cm |
Weight Capacity |
150kg |
Waterproof class |
IPX4(Light rain or rain sputtering can, but can not directly flush or rain) |
Working Temperature |
– 10 ~ 40 ℃(Not recommended in bad weather) |
Package content |
Complete vehicle, multi-function installation tool, mobile phone holder bag, pump, manual |
Electronic Spec |
Motor |
48V 750W*2 |
Torque |
65 NM*2 |
Battery |
Samsung 48V 20AH
|
Battery Charger |
54.6V 3A |
Charger Time |
6-8 hours |
Sensor |
Speed sensor |
Throttle |
Electric half throttle |
Display |
5-speed multifunction LCD display
|
Smart Connect |
Support Bluetooth connection APP, can be connected through the DUOTTS APP
|
Components Spec |
Transmission |
Shimano 7 speed |
Suspension |
Only the front shock absorber
|
Brakes |
Left and right power off brake, front and rear DYISLAND hydraulic brake
|
Brake disc |
Dish diameter 160mm
|
Headlight |
Equipped with stainless steel front frame light
|
Tail Light |
Stainless steel rear taillights
|
Pedals |
WP-625 Material Aluminum alloy with general reflector/black/L+R label
|
Fenders |
Equipped with front and rear plastic mud boards/iron ED brackets
|
Rear Carrier |
It is equipped with iron non-adjustable shelves, which need to be installed by users themselves
|

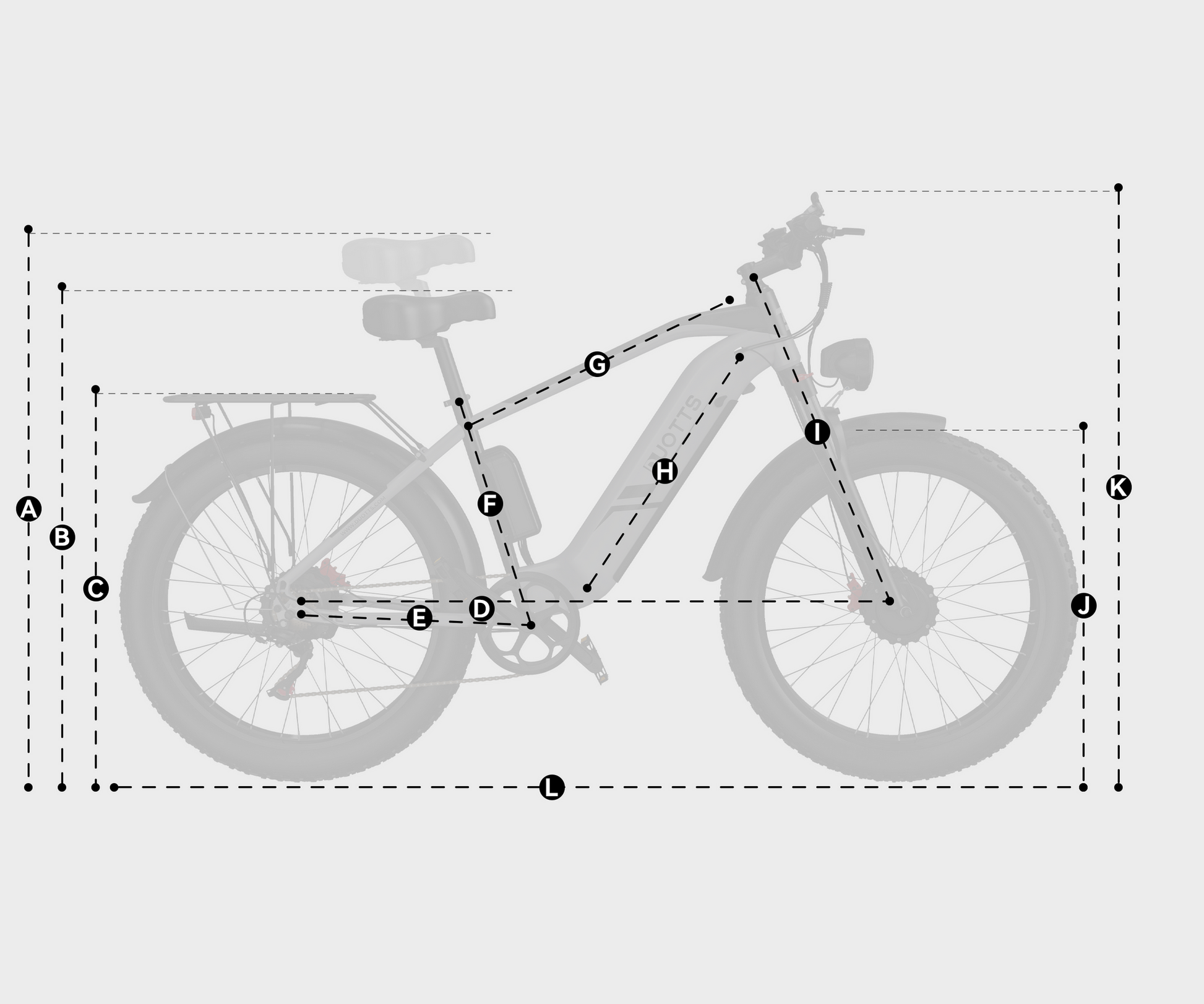

Size
Recommended Height |
195cm |
Load Capacity |
195cm |
Bicycle Weight |
195cm |
A. Seat Height (Maximum) |
114cm |
B. Seat Height (Minimum) |
87cm |
C. Rear Rack Height |
80cm |
D. Wheelbase |
122cm |
E. Rear Chainstay |
52cm |
F. Seat Tube |
43cm |
G. Top Tube |
60cm |
H. Down Tube |
75cm |
I. Front Fork |
68cm |
J. Wheel Height |
73cm |
K. Bike Height |
121cm |
L. Bike Length |
195cm |
What’s In The Box?
No.4 Hex Key*1
|
No.5 Hex Key*1
|
Phillips Head Screwdriver*1
|
No.10&12 Wrench*1
|
No.13&15 Wrench*1
|
Charger*1 |
Bicycle Pedals*1
|
Pump*1 |
Bike Manual*1 |
More Reasons to Love It

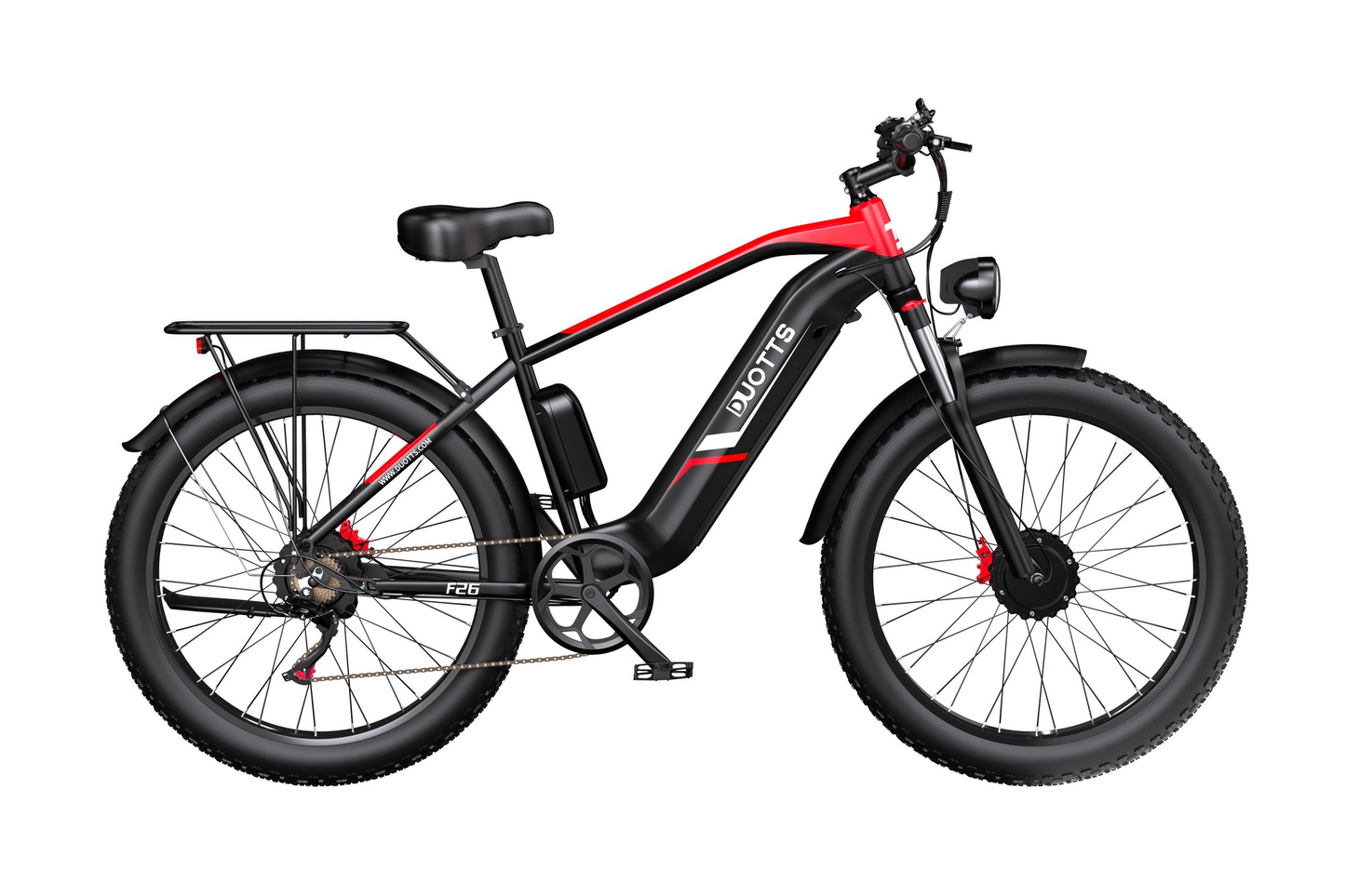

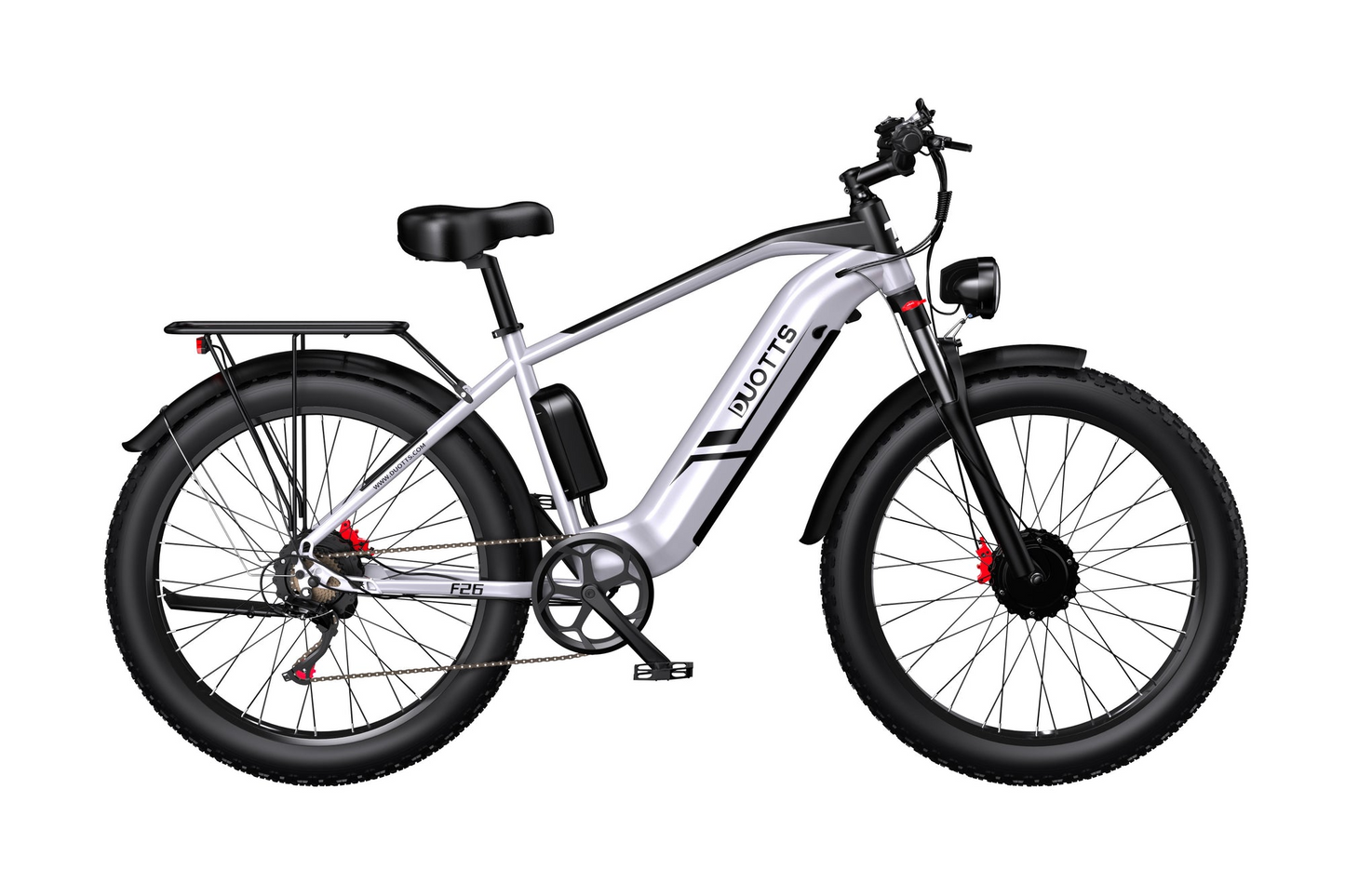

Exploring the F26 E-BIKE
The Dream Choice of Explorers. Duotts F26 offroad ebike is equipped with a powerful dual 750-watt motor system and paired with unique 26*4.0 inflatable tires. Whether it’s snowy terrain, sandy landscapes, or rugged mountain paths, you can advance steadily, creating your magnificent legend with our dual motor ebike F26.
Unmatched Adventure With F26 Offroad Ebike
- The F26 offroad ebike, equipped with a sturdy dual 750W motor system, takes electric cycling to the next level.
- Seamlessly transition to pedal-assist mode and journey up to 100-120 kilometers. Featuring 26*4.0-inch inflatable tires, Duotts’ dual-motor ebike F26 ensures stability across
- snowy landscapes, sandy beaches, or rough mountain trails.
Opt for the F26 offroad ebike and embark on an exhilarating and breathtaking adventure!

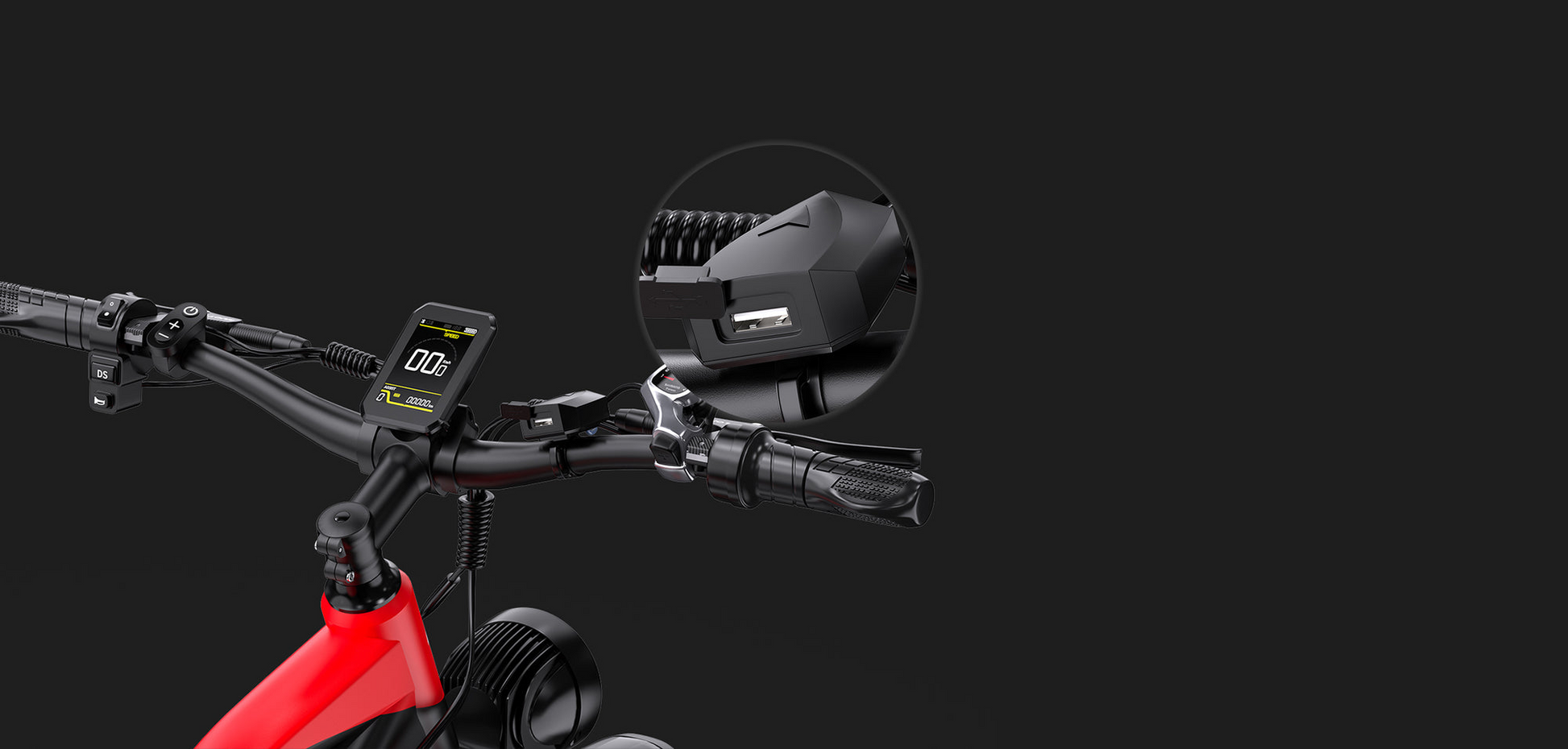

Mobile phone charging port
Ride worry-free, charge on the go! Our electric bicycle features a phone charging port in the handlebar area, allowing you to recharge your phone while riding. Whether it’s a long commute or a short trip, you never have to worry about running out of battery. Stay connected at all times and enjoy a smart and convenient riding experience.

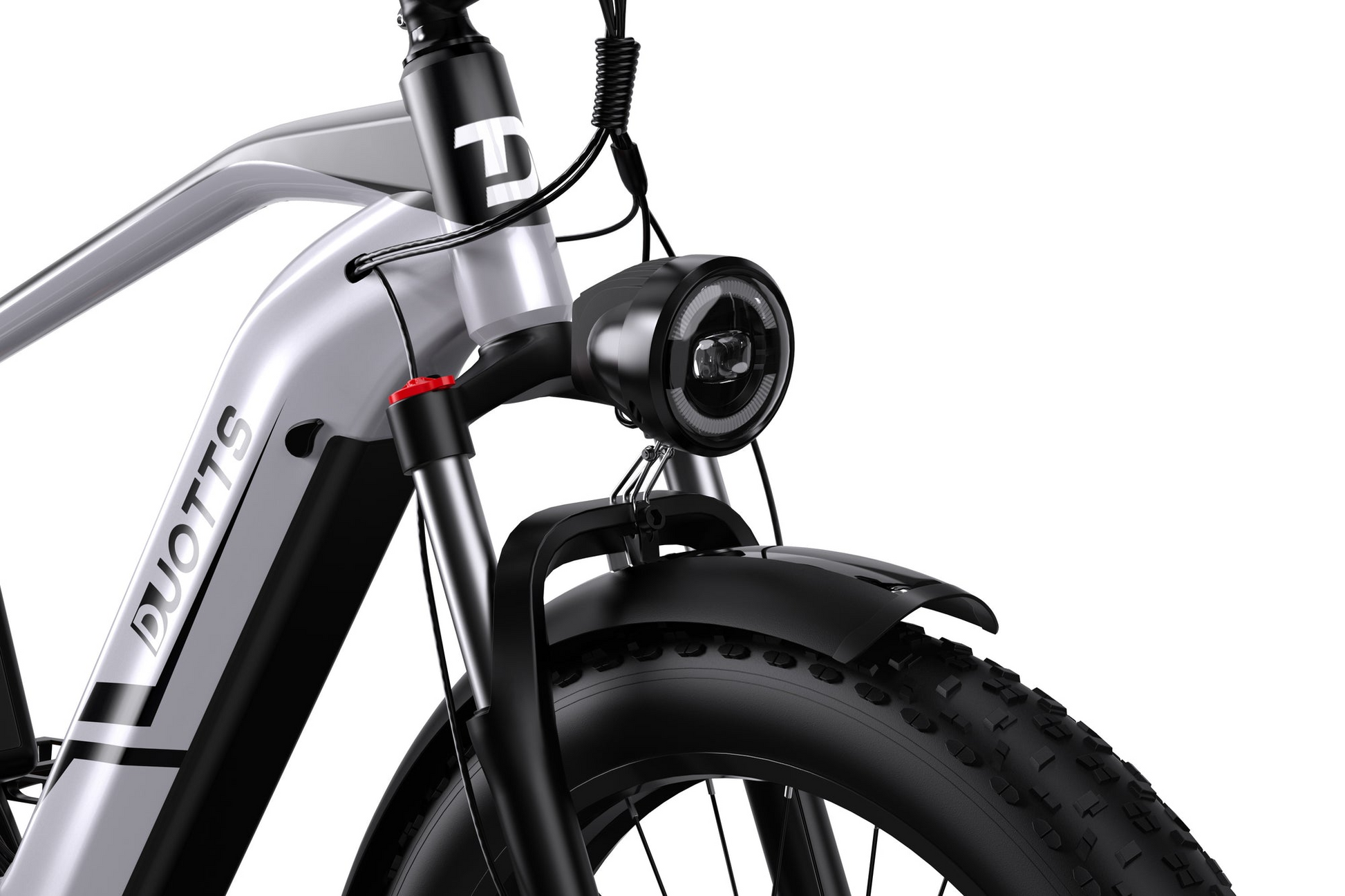

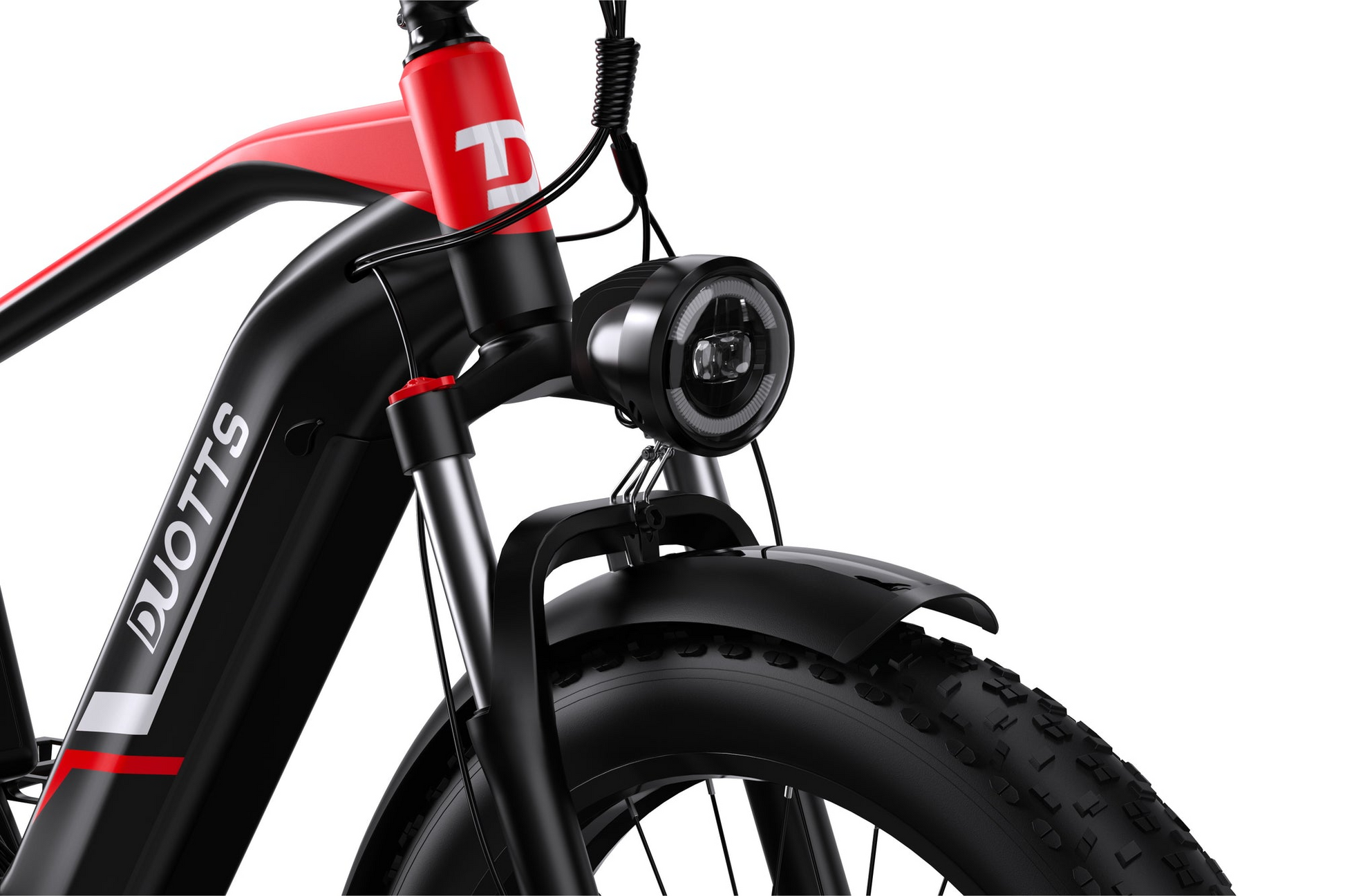

Range, lights, front fork
The F26 E-bike uses a Samsung 20AH battery, providing a range of 100-120 km in assist mode, about 40-60 km in pure electric mode. Its integrated design makes the bike more aesthetically pleasing, while the stylish front light illuminates the night. Beyond speed, the excellent front fork suspension ensures a more comfortable ride.

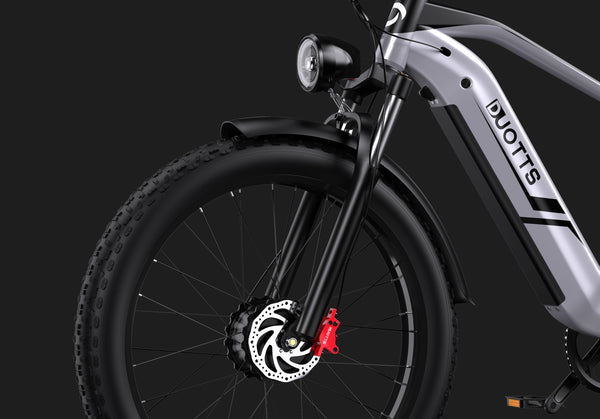

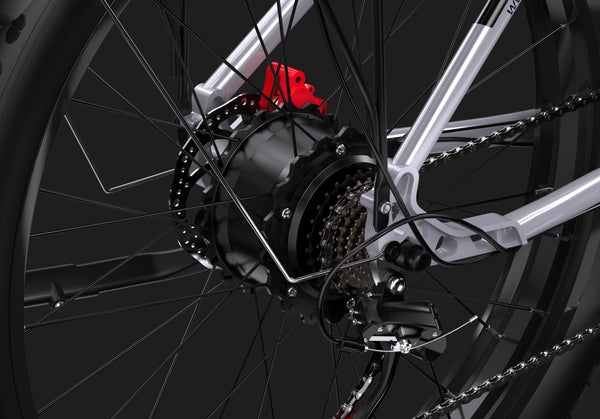

Dual motors for enhanced power
Equipped with a 750W motor both in the front and rear, the F26 provides 1500W of power in dual-drive mode, resulting in increased speed and power. The ability to switch between single and dual drive modes with the press of a button allows riders to adapt to various terrains with ease.

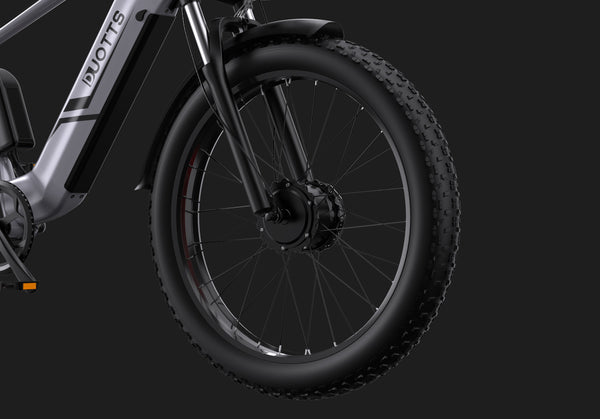

Sturdy 26*4.0-inch fat tires
The 26*4.0-inch fat tires add off-road capability to the F26. With their generous width, these tires offer improved buoyancy and stability, ensuring safe riding even in powerful dual-drive mode.
Safe hydraulic disc brakes
The advanced hydraulic disc brakes provide powerful and reliable braking force, significantly enhancing your safety and control during rides. Whether tackling steep descents or responding to sudden stops, these brakes deliver unparalleled confidence and security.

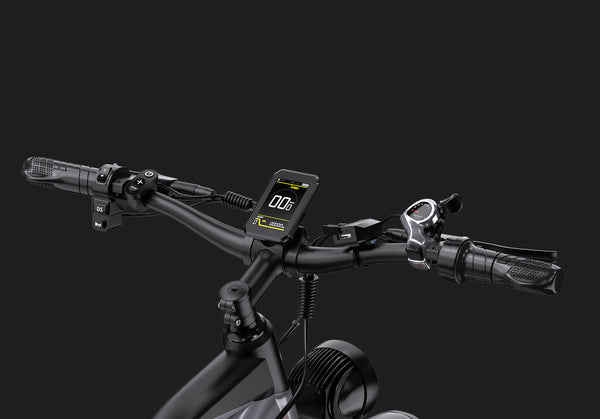

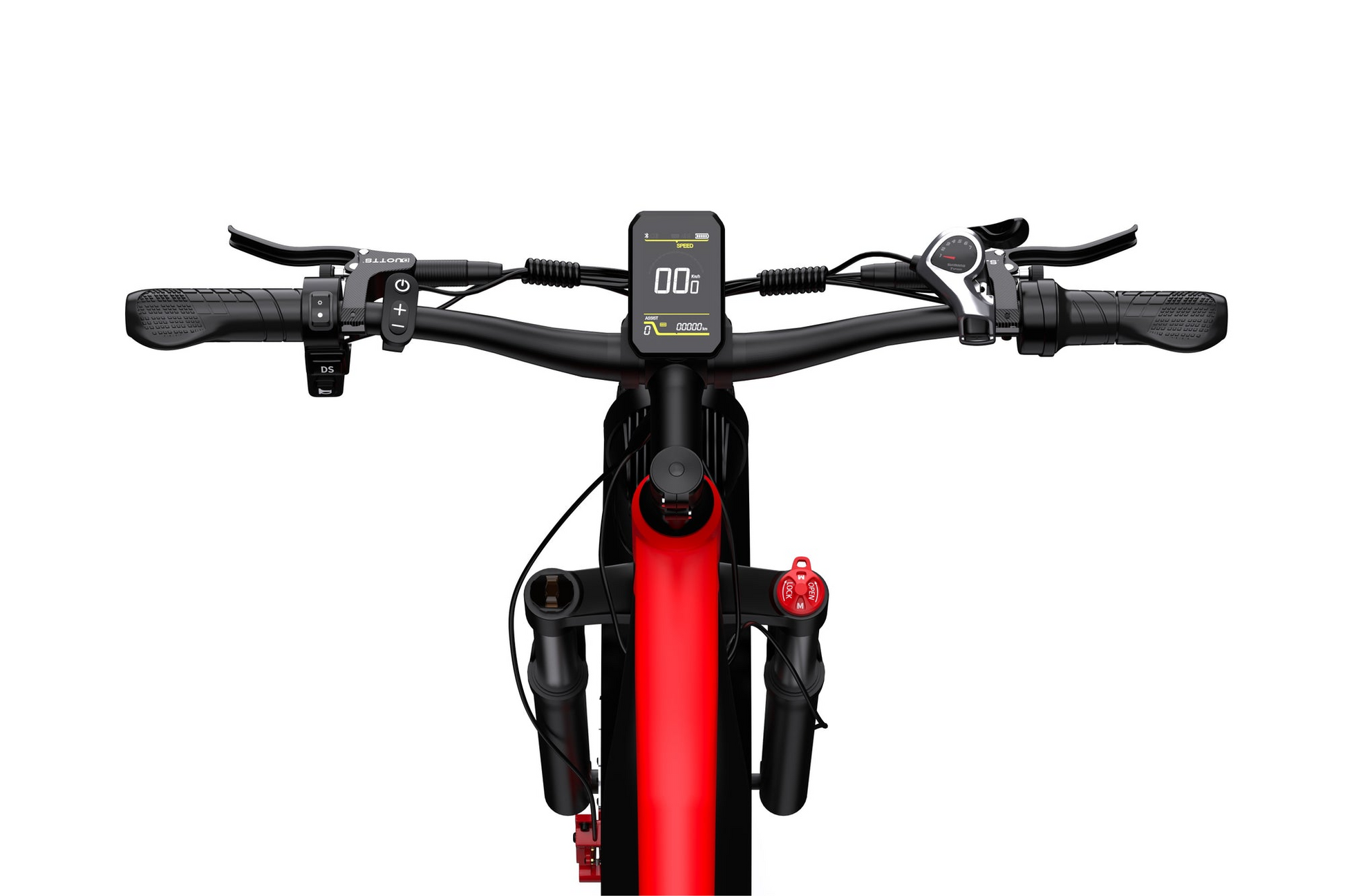

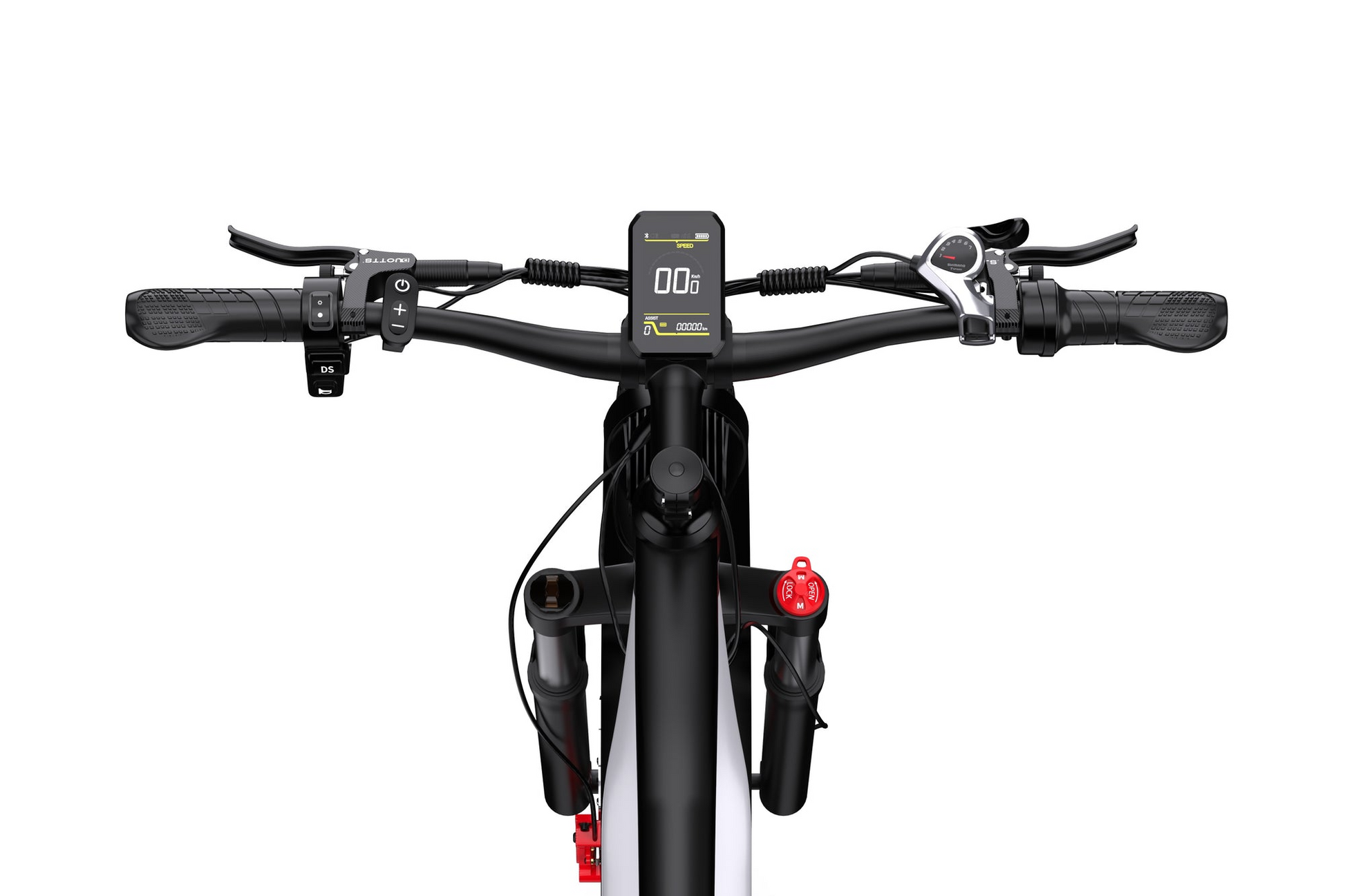

Multi-functional rider control panel
The F26 E-Bike puts control in the rider’s hands with an electric half-twist throttle, Shimano gearing, a mobile phone charging port,and a toggle button for switching drive modes. With a high-definition display screen, you can effortlessly monitor the vehicle’s status while enjoying a safer, more convenient, and more enjoyable ride.
More, more, more

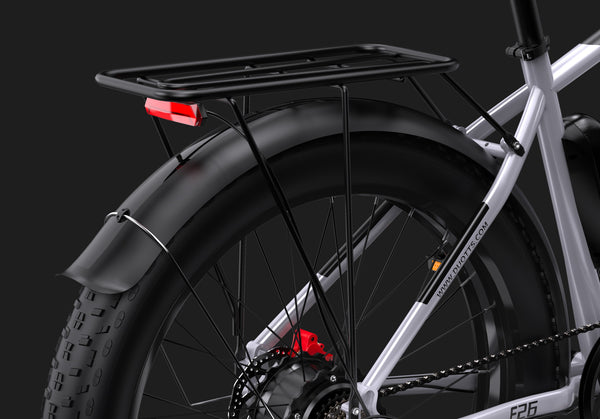

The F26 also features a rear cargo rack for added convenience and practicality, while its integrated tail light enhances visibility and safety during night rides.
