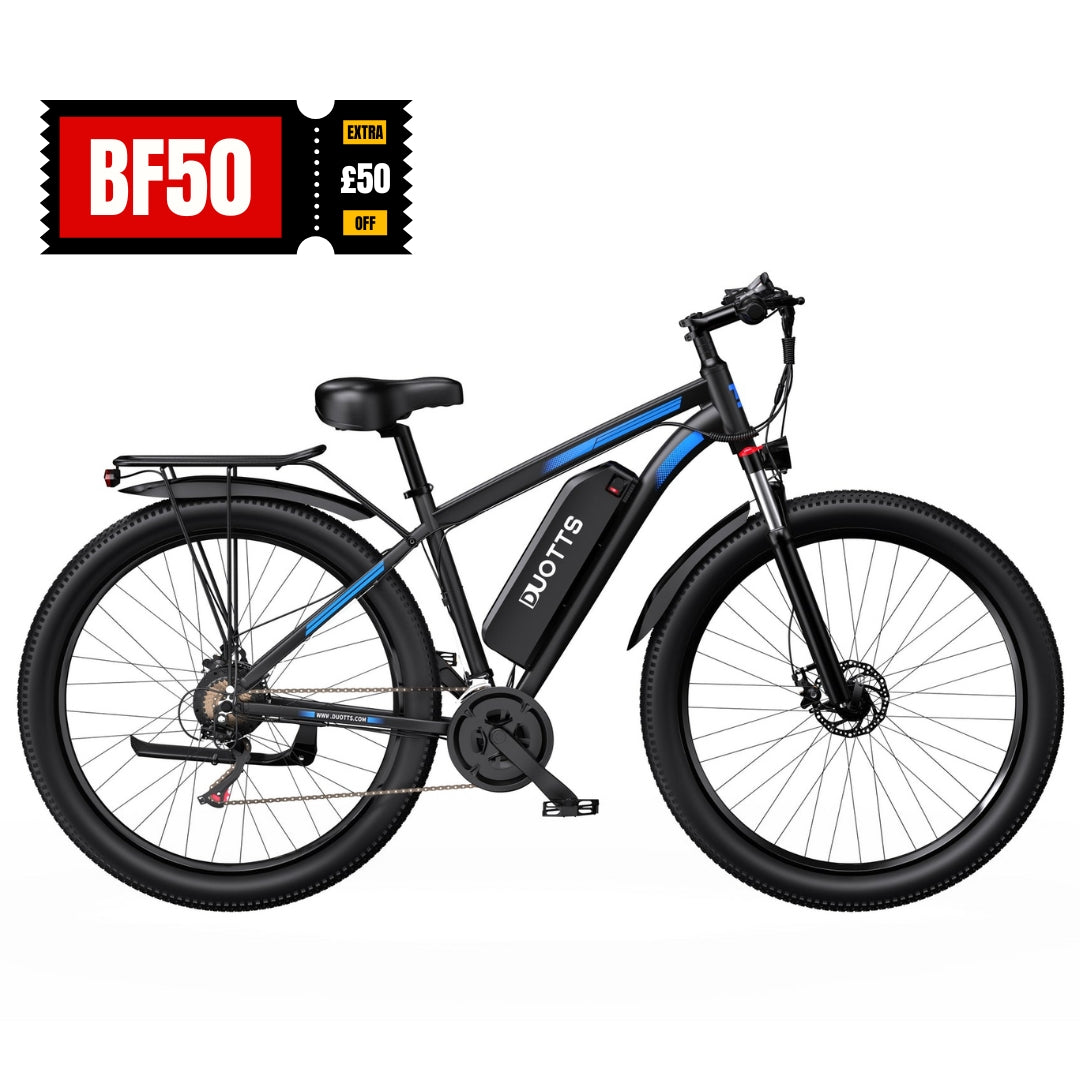

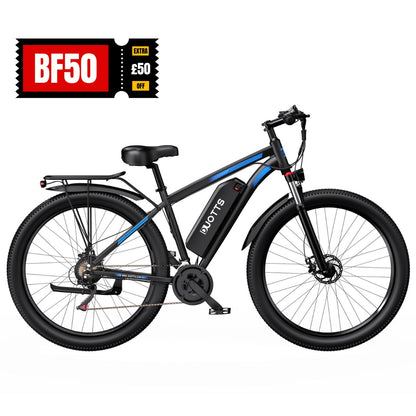

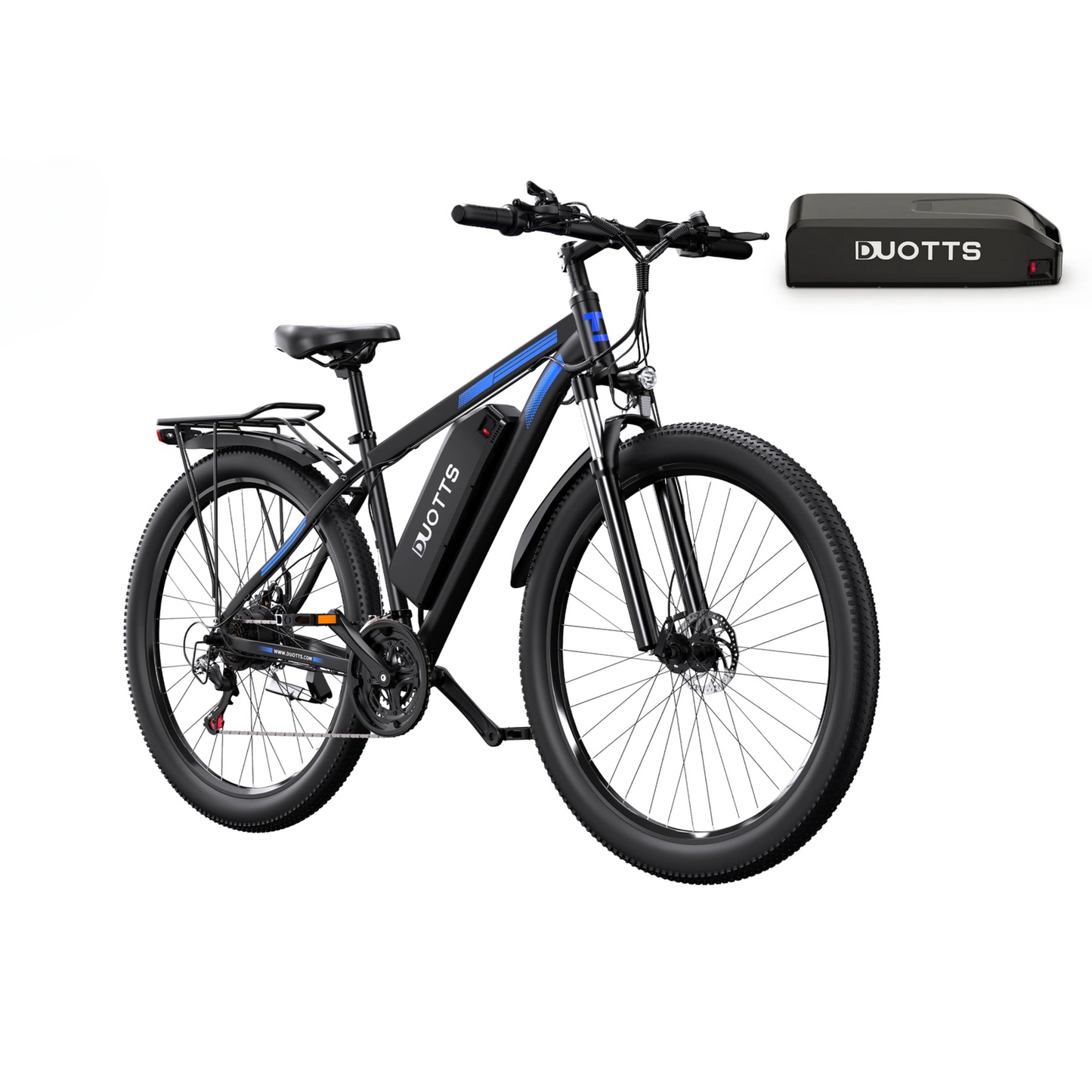

DUOTTS C29 Electric Bike
Embark on adventures into the unknown and immerse yourself in the beauty of nature. Whether you crave exhilarating mountain rides or prefer leisurely urban explorations, the Duotts C29 750W lightweight electric bike is your perfect companion.
Specification
| General Spec | |
| Frame |
All-aluminum alloy |
| Brake |
Front and rear disc line brake |
| Front fork |
All aluminum shock-proof front fork |
| Range |
50-60 km (pure electric mode) 80-100 km (auxiliary mode) (Actual performance will vary depending on temperature, road conditions, rider weight, etc.) |
| Speed |
25 km/h (When the speed limit is set at 25, the motor will stop providing power at the specified maximum speed. You can still ride above the prescribed maximum speed with pure muscle strength. This limit is set according to local regulations) |
| Net Weight |
Material of 26.5 kg |
| Certificate |
CE certification |
| Product size |
1840*715*1130mm |
| Package size |
1460*240*790mm |
| Tyre Size | 29*2.1 inches |
| Assist Intelligent |
Level 0-5 pedal assist |
| Angle of climb |
Maximum climbing Angle 30°(Suitable for medium city slopes) |
| Rider Heights | 170-200cm |
| Weight Capacity | 120kg |
| Waterproof class |
IPX4(Light rain or rain sputtering can, but can not directly flush or rain) |
| Working Temperature |
– 10 ~ 40 ℃(Not recommended in bad weather) |
| Package content |
Complete vehicle, multi-function installation tool, mobile phone holder bag, pump, manual |
| Electronic Spec | |
| Motor |
GT-S03 48V 750W |
| Torque | 65 NM |
| Battery |
KT-E26 48V 15AH |
| Battery Charger | 54.6V 2A |
| Charger Time | 6-8 hours |
| Sensor | Speed sensor |
| Throttle |
Electric half throttle |
| Display | S869/48V |
| Smart Connect |
Support Bluetooth connection APP, can be connected through the DUOTTS APP |
| Components Spec | |
| Transmission |
Shimano MF-TZ500 |
| Suspension |
Only front cushioning, no rear soft tail and cushioning seat |
| Brakes |
Left and right power off brake, front and rear disc line brake |
| Brake disc |
Dish diameter 160mm |
| Wheels |
YS-319(MH19) Spoke front 13G, back 14G, double aluminum rim |
| Tires |
H-5129 CHAOYANG, 29″*2.10″/30TPI/ Printed Chaoyang/rubber black |
| Fork |
688-29 Perfect shock-proof front fork, pure aluminum |
| Headlight |
D-021 Equipped with stainless steel front frame light |
| Tail Light |
Stainless steel rear taillights |
| Chain Ring |
Brand: KMC Z7/1/2″*3/32″*116 knots/surface brown |
| Pedals |
WP-625 Material Aluminum alloy with general reflector/black/L+R label |
| Saddle |
A-8270 Black hibiscus skin |
| Seat tube |
Φ27.2*2.2T*350MM/ with clip/Aluminum alloy |
| Fenders |
XGNB-055A Equipped with front and rear plastic mud boards/iron ED brackets |
| Rear Carrier |
It is equipped with iron non-adjustable shelves, which need to be installed by users themselves |
Size
| A. Seat Height (Maximum) | 110cm |
| B. Seat Height (Minimum) | 85cm |
| C. Rear Rack Height | 79cm |
| D. Wheelbase | 110cm |
| E. Rear Chainstay | 44cm |
| F. Seat Tube | 39cm |
| G. Top Tube | 54cm |
| H. Down Tube | 66cm |
| I. Front Fork | 62cm |
| J. Wheel Height | 72cm |
| K. Bike Height | 102cm |
| L. Bike Length | 179cm |
What’s In The Box?
| No.4 Hex Key |
| No.5 Hex Key |
|
Phillips Head Screwdriver |
|
No.10&12 Wrench |
|
No.13&15 Wrench |
| Charger |
| Bicycle Pedals |
| Pump |
| Bike Manual |
More Reasons to Love It

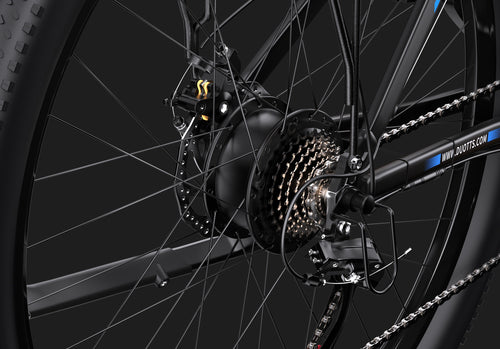

More powerful motor
Featuring a 750W brushless motor, this cutting-edge engine not only delivers immense power but also boasts peak efficiency, seamlessly blending speed with silent operation. Conquer uphill climbs, heavy loads, or the need for higher speeds with ease. Whether tackling urban commuting or rugged mountain trails, enjoy smoother, more effortless rides.
Range, lights, front fork
The C29 offers three riding modes: regular cycling, pedal-assist, and pure electric. With a 15AH battery, it supports pedal-assist mode for 80-100 km and pure electric mode for 50-60 km. Its headlights illuminate the way forward, while its lightweight all-aluminum shock-absorbing front fork ensures a safer and more comfortable ride.
Handlebar components
C29's control panel features Shimano 21-speed gears, front and rear disc brakes, an electric half-handle throttle, a headlight switch, a horn button, a mobile phone charging port，and a 5-speed multifunction display. Offering precise control, the throttle ensures agile maneuvering, while the Shimano gears deliver smooth shifts for versatile riding.
Large-diameter inflatable tires
C29 is equipped with 29*2.1 INFLATABLE TIRES, unlike traditional rubber tires, inflatable tires allow riders to adjust air pressure according to riding conditions and personal preferences, thus influencing riding comfort, traction, and resistance, providing the desired riding performance.
More, more, more
The C29 also features a rear cargo rack for added convenience and practicality, while its integrated tail light enhances visibility and safety during night rides
Rugged Performance Assurance
Featuring a Shimano 21-speed gear system and a rear derailleur protector, the C29 ensures a smooth and reliable ride. The protector shields against damage and chain slippage, while the gear system offers versatile options for tackling any terrain with ease.
Mobile phone charging port
Ride worry-free, charge on the go! Our electric bicycle features a phone charging port in the handlebar area, allowing you to recharge your phone while riding. Whether it's a long commute or a short trip, you never have to worry about running out of battery. Stay connected at all times and enjoy a smart and convenient riding experience.
